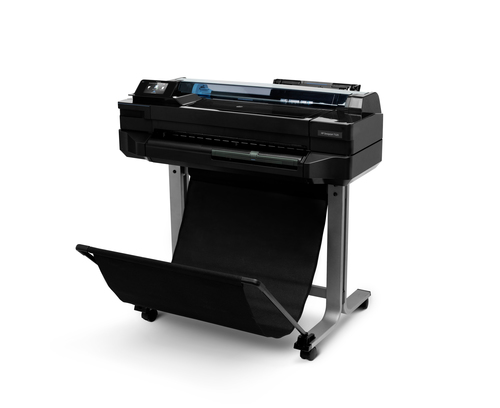

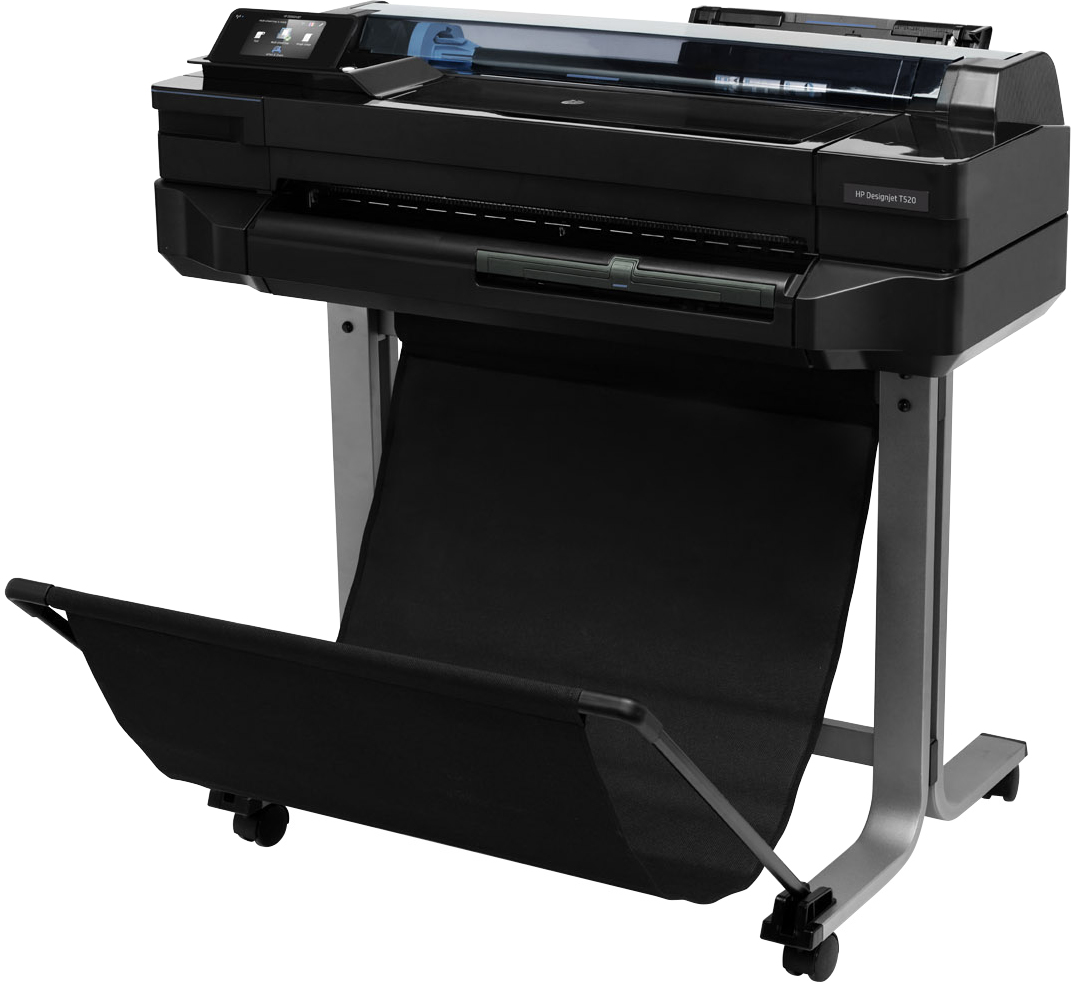

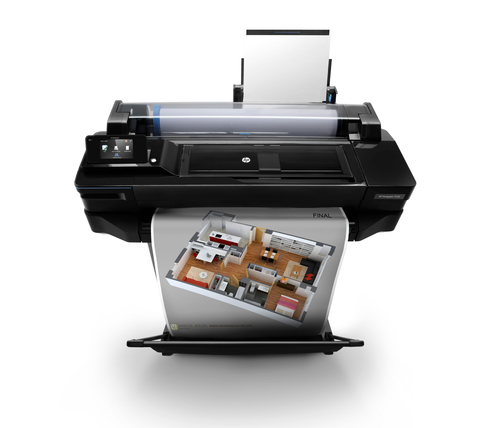

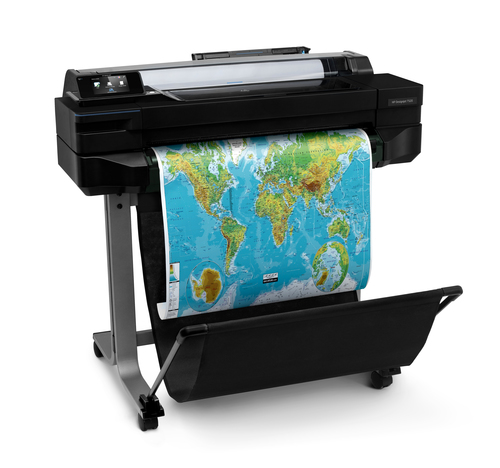

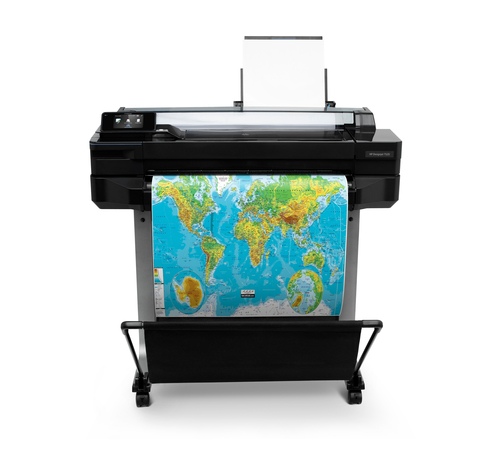

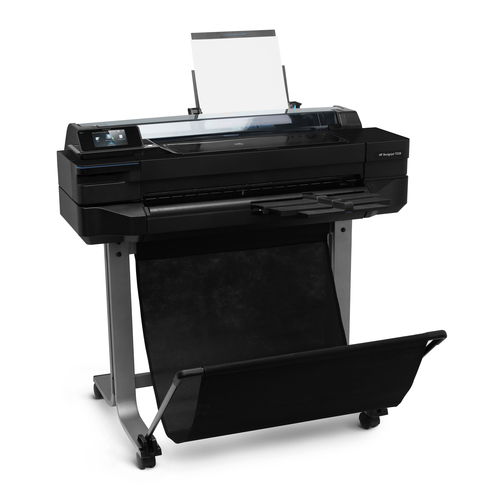

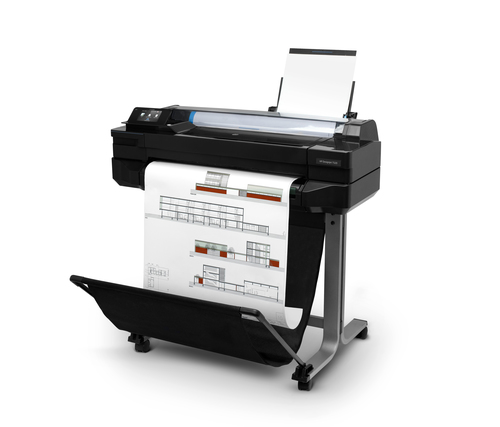

HP Designjet T520 large format printer Thermal inkjet Colour
2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Model T520Part no. CQ893AEAN 191628936571
55 specifications
- Memory1024 MB
- Weight34 kg
- ColourYes
- Print technologyThermal inkjet
- Maximum print sizeA1 (594 x 841 mm)
- Display4.3''
Overview
- Memory
- 1024 MB
- Weight
- 34 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Maximum print size
- A1 (594 x 841 mm)
- Display
- 4.3''
- Brand
- HP
- Category
- Large Format Printer
- Model
- T520
- Part numbers
- CQ893A, CQ890A#B19, CQ890A, CQ893C#B19, CQ890C, CQ893C
- EAN / UPC
- 191628936571, 191628973897, 887111144461, 887111144478 +37 more
- Also known as
- HP Designjet T520 large format printer Thermal inkjet Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Specifications
55 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3 |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head | 1 |
| Print speed (best quality) | 16.3 m/p |
| Print speed (normal quality) | 9.3 m/p |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Bond paper, Coated paper, Cut sheet, Glossy paper, Matte paper, Photo paper, Plain paper, Recycled paper, Roll |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Cut sheets | Yes |
| Media thickness | 0.29972 mm |
| Maximum roll length | 0.61 m |
| Maximum roll diameter | 9.9 cm |
| Print margin roll | 5 mm |
| Roll top margin | 5 mm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10/100 Base-T(X) |
| Supported network protocols | IPv6 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|

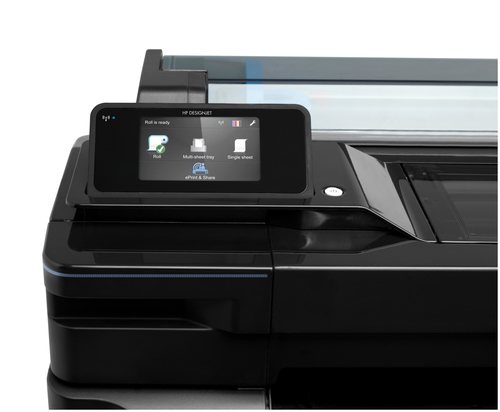

| Display | 4.3'' |
| Internal memory | 1024 MB |
| Maximum internal memory | 1024 MB |
| Sound power level (standby) | 16 dB |
| Sound pressure level (printing) | 48 dB |
| Certification | FCC, ICES, EMC/R&TTE, ACMA, RSM, CCC, VCCI, KCC, WEEE, RoHS, REACH, EuP, FEMP |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240V, 50/60Hz |
| Power consumption (PowerSave) | 4.5 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 35 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating temperature (T-T) | 41 - 104 °F |
| Storage temperature (T-T) | -25 - 55 °C |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Windows 7 Ultimate (32/64bit) Windows 7 Professional (32/64bit) Windows 7 Home Premium (32/64bit) Windows Vista Ultimate (32/64bit) Windows Vista Business (32/64bit) Windows Vista Home Premium (32/64bit) Windows XP Professional SP3+ (32/64bit) Windows XP Home SP3+ (32/64bit) Windows Server 2008 R2 W |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 987 x 530 x 932 mm |
| Weight | 34 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 50 kg |
| Package dimensions (WxDxH) | 1123 x 577 x 626 mm |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/-0.1% |
| Minimum system requirements | Intel Pentium AMD K6/Athlon/Duron 1GB RAM 1GB HDD |
| Coated paper | Yes |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
| Glossy paper | Yes |
| Photo paper | Yes |
| Safety | CSA, LVD, EN, GOST, PSB, CCC, NYCE |
| Wireless technology | Wi-Fi |
What people say
Reviews & ratings
HP Designjet T520 large format printer Thermal inkjet Colour
No reviews yet
Be the first to tell others how HP Designjet T520 large format printer Thermal inkjet Colour works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP Designjet T520 large format printer Thermal inkjet Colour
All large format printer comparisons- HP Designjet T520 large format printer Thermal inkjet Colour vsHP Designjet T120Compare specs

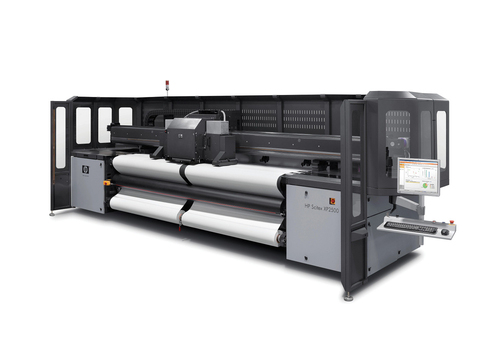

- HP Designjet T520 large format printer Thermal inkjet Colour vsHP Scitex XP2500 Industrial Printer CM106ACompare specs
- HP Designjet T520 large format printer Thermal inkjet Colour vsHP Designjet T1200 large format printer Thermal inkjet ColourCompare specs
- HP Designjet T520 large format printer Thermal inkjet Colour vsHP Business Inkjet 2800 large format printer Thermal inkjet ColourCompare specs

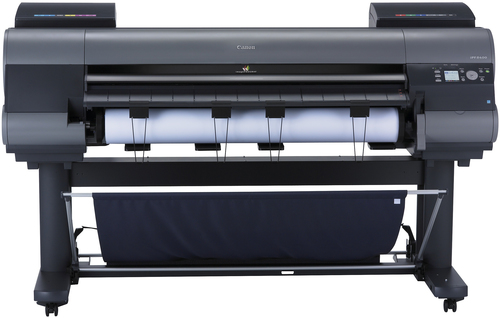

- HP Designjet T520 large format printer Thermal inkjet Colour vsCanon imagePROGRAF iPF6400 large format printer ColourCompare specs
