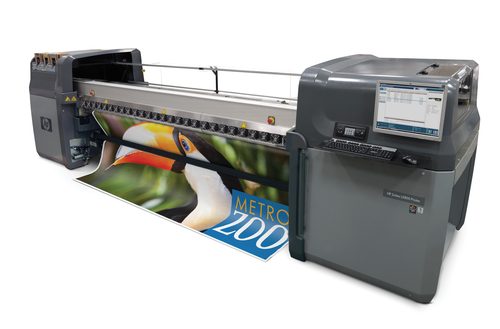

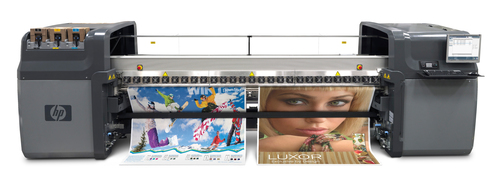

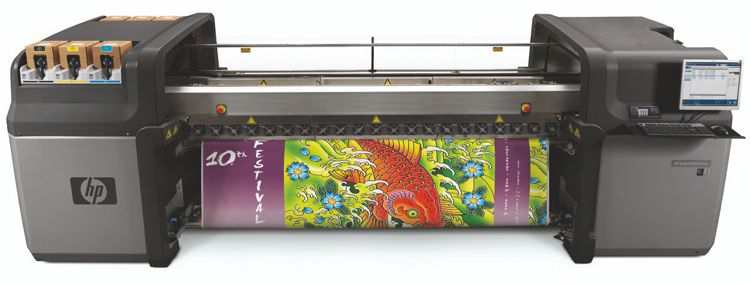

Scitex LX800
Model Scitex LX800Part no. Q6703AEAN 884962483589
37 specifications
- Weight1118 kg
- ColourYes
- Paper tray media typesBanner
- Country of originSingapore
- AC input voltage115 - 240 V
- Operating altitude0 - 3000 m
Overview
- Weight
- 1118 kg
- Colour
- Yes
- Paper tray media types
- Banner
- Country of origin
- Singapore
- AC input voltage
- 115 - 240 V
- Operating altitude
- 0 - 3000 m
- Brand
- HP
- Category
- Large Format Printer
- Model
- Scitex LX800
- Part number
- Q6703A
- EAN / UPC
- 884962483589, 884962567609, 884962855997
- Also known as
- HP Scitex LX800 large format printer Colour 1200 x 1200 DPI
Specifications
37 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 1200 x 1200 DPI |
| Print resolution colour | 1200 x 1200 DPI |
| Number of print cartridges | 6 |
| Printing colours | Black, Light magenta, Yellow |
| Print head | 3 |
| Print speed (normal quality) | 484 ft²/hr |
| Print head nozzles | 10560 |
Paper handling
| Specification | Value |
|---|---|
| Media types supported | Banners, self-adhesives, films, fabric, paper, mesh, specialty |
| Paper tray media types | Banner |
| Media thickness | 0.8 mm |
| Maximum roll diameter | 25 cm |
| Custom media sizes | 3.2 m; 2 x 1.52 m |
Performance
| Specification | Value |
|---|---|
| Country of origin | Singapore |
| Certification | Compliant with Class A requirements, including USA (FCC rules), Canada (DoC), EU (EMC Directive), Australia (ACA), New Zealand (MoC) |
Power
| Specification | Value |
|---|---|
| AC input voltage | 115 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating altitude | 0 - 3000 m |
| Operating temperature (T-T) | 59 - 86 °F |
| Recommended operating temperature range (T-T) | 15 - 30 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 5730 x 1660 x 1660 mm |
| Width | 5730 mm |
| Depth | 1660 mm |
| Height | 1660 mm |
| Weight | 1118 kg |
| Size (imperial) | 3.2 m (126") |
Packaging data
| Specification | Value |
|---|---|
| Package width | 5860 mm |
| Package depth | 1730 mm |
| Package height | 2160 mm |
| Package weight | 1900 kg |
| Bundled software | HP Internal Print Server Software |
| Package dimensions (W x D x H) | 5867.4 x 1727.2 x 2159 mm (231 x 68 x 85") |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including USA (FCC rules), Canada (DoC), EU (EMC Directive), Australia (ACA), New Zealand (MoC) |
| Ink drop | 12 pl |
| Roll maximum input | 2 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | EAC, RoHS, Federal Communications Commission (FCC) |
| Box contents | HP Scitex LX800 Printer; HP LX600 printheads; 126-in spindles; pneumatic gun; Original HP sample roll media; 104-in roll core; dual-roll spindles; screwdriver and keys set; HP Internal Print Server; HP 19-in LCD monitor; HP webcam with USB cable 5 m (16 ft) extension; HP network switch; HP Scitex LX |
