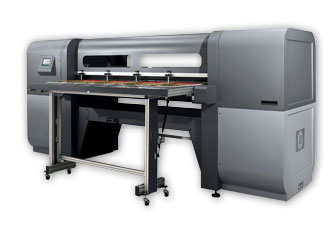

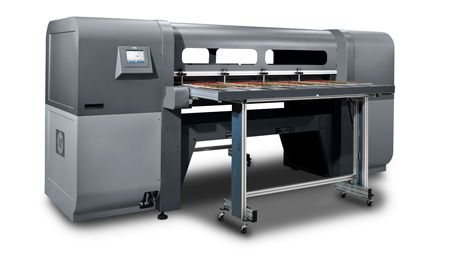

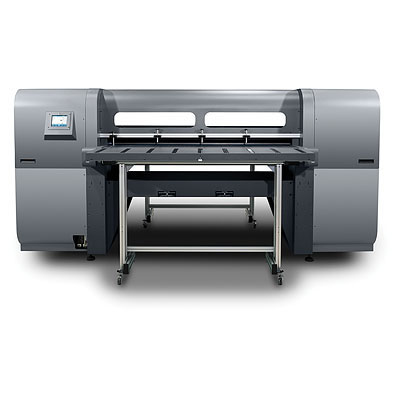

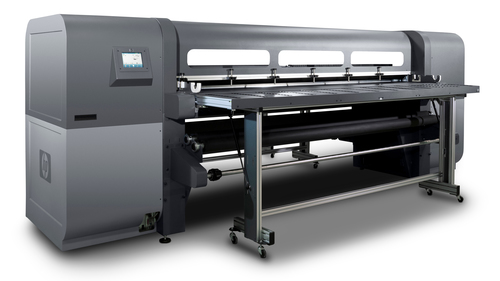

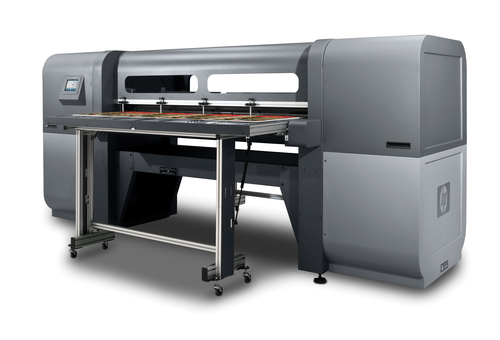

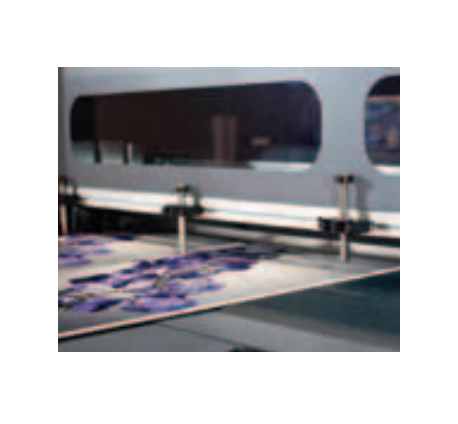

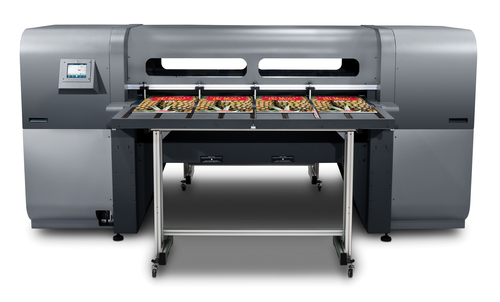

Scitex FB500
Model Scitex FB500Part no. CQ114AEAN 884962752180
38 specifications
- Weight719 kg
- ColourYes
- Media thickness64 mm
- CertificationRoHS, WEEE
- Power requirements220 - 240V, 50/60Hz
- Operating temperature (T-T)20 - 30 °C
Overview
- Weight
- 719 kg
- Colour
- Yes
- Media thickness
- 64 mm
- Certification
- RoHS, WEEE
- Power requirements
- 220 - 240V, 50/60Hz
- Operating temperature (T-T)
- 20 - 30 °C
- Brand
- HP
- Category
- Large Format Printer
- Model
- Scitex FB500
- Part number
- CQ114A
- EAN / UPC
- 884962752180
- Also known as
- HP Scitex FB500 large format printer Colour 1200 x 600 DPI Ethernet LAN
Specifications
38 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 1200 x 600 DPI |
| Number of print cartridges | 6 |
| Printing colours | Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow |
| Print cartridge volume (metric) | 2/3L |
| Print head | 12 |
| Print speed (normal quality) | 37 m²/hr |
Paper handling
| Specification | Value |
|---|---|
| Media thickness | 64 mm |
| Maximum roll diameter | 23 cm |
| Maximum media width | 1630mm |
| Media thickness (imperial) | 2.5" |
| Roll paper | Yes |
| Custom media sizes | 100 x 150 mm, 1620 x 3050 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | No |
| Ethernet interface type | Fast Ethernet |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN data rates | 10/100Base-T(X) |
| Supported network protocols | TCP/IP, DHCP |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Certification | RoHS, WEEE |
Power
| Specification | Value |
|---|---|
| Power requirements | 220 - 240V, 50/60Hz |
| Power consumption (typical) | 2500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 20 - 30 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 68 - 85 °F |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 3250 x 1420 x 1520 mm |
| Weight | 719 kg |
| Size (imperial) | 162.6 cm (64") |
| Weight (imperial) | 719.4 kg (1586 lbs) |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1050 kg |
| Package dimensions (WxDxH) | 3250 x 2820 x 1520 mm |
| Package dimensions (W x D x H) | 3632.2 x 1701.8 x 1828.8 mm (143 x 67 x 72") |
| Package weight (imperial) | 1050.1 kg (2315 lbs) |
Other features
| Specification | Value |
|---|---|
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
| Electromagnetic compatibility | CISPR-A, FCC-A, MIC |
| Safety | CE, UL, c-UL |
| Roll maximum input | 1 |
