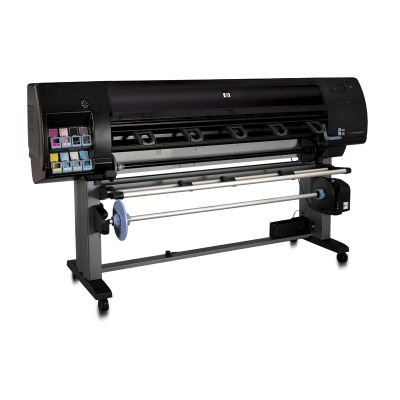

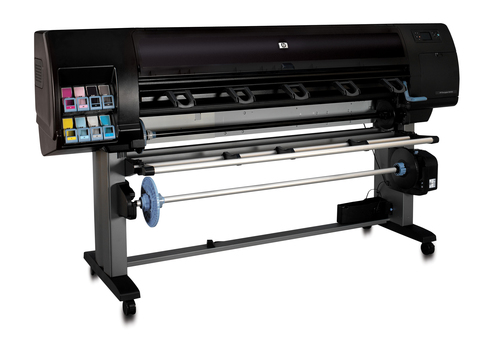

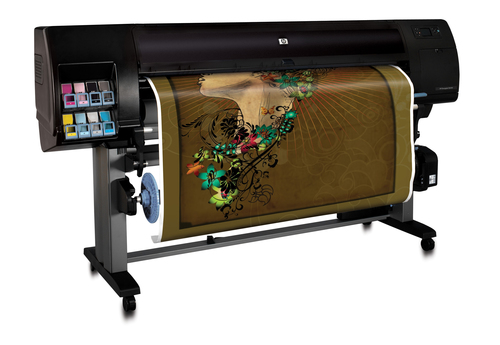

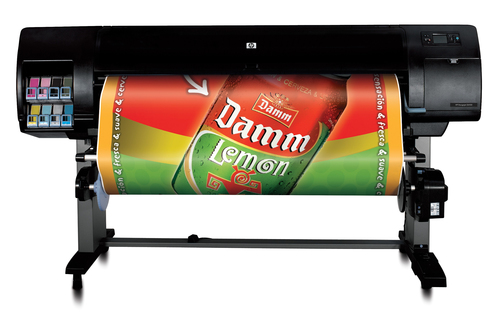

Designjet Q6652A large format printer Colour
2400 x 1200 DPI Ethernet LAN
Model Q6652AEAN 882780989986
50 specifications
- Memory256 MB
- Storage40 GB
- Weight119 kg
- ColourYes
- Maximum roll length575 ft
- Power consumption (off)0.4 W
Overview
- Memory
- 256 MB
- Storage
- 40 GB
- Weight
- 119 kg
- Colour
- Yes
- Maximum roll length
- 575 ft
- Power consumption (off)
- 0.4 W
- Brand
- HP
- Category
- Large Format Printer
- Model
- Q6652A
- Part number
- Q6652A
- EAN / UPC
- 882780989986, 882780989795, 882780989801, 882780989818 +16 more
- Also known as
- HP Designjet Q6652A large format printer Colour 2400 x 1200 DPI Ethernet LAN
Specifications
50 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 8 |
| Printing colours | Cyan, Light Cyan, Light magenta, Magenta, Matte black, Photo black, Yellow |
| Print speed (normal quality) | 252 sqft /hr |
| Print head nozzles | 2112 |
Paper handling
| Specification | Value |
|---|---|
| Maximum roll length | 575 ft |
| Supported media weight (imperial) | 51.7 kg (114 lbs) |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | No |
| USB 2.0 ports quantity | 0 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Internal storage capacity | 40 GB |
| Storage media | HDD |
| Built-in processor | Intel® Celeron® |
| Processor frequency | 2000 MHz |
| Memory upgrade | 0.512 GB |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.4 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating temperature (T-T) | 64 - 77 °F |
| Storage temperature (T-T) | -25 - 55 °C |
| Recommended operating temperature range (T-T) | 18 - 25 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 2000; Windows XP Home; Windows XP Professional; Windows Server 2003; Windows Vista(TM); Mac OS X v 10.2.8; Mac OS 10.3; Mac OS X v 10.4 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 2450 x 700 x 1350 mm |
| Weight | 119 kg |
| Size (imperial) | 152.4 cm (60") |
| Pallet dimensions (W x D x H) | 2690 x 750 x 1361 mm |
| Pallet dimensions (W x D x H) (imperial) | 2689.9 x 749.3 x 1361.4 mm (105.9 x 29.5 x 53.6") |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 2725 x 750 x 1361 mm |
| Package dimensions (W x D x H) | 2689.9 x 749.3 x 1361.4 mm (105.9 x 29.5 x 53.6") |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.1% |
| All-In-One-multitasking | No |
| Coated paper | Yes |
| Embedded web server | Yes |
| Functions | |
| Glossy paper | Yes |
| Photo paper | Yes |
| Proofing paper | Yes |
| Optional connectivity | USB 2.0 |
| Minimum line width | 0.07 mm |
| Acoustic pressure emissions | 51 dB |
| Ink drop | 4 pl (lc, lm, lg, pK), 6 pl (C, M, Y, mK) |
| JetDirect Compatible Products | Yes |
| Roll maximum input | 1 |
| Send to email capability | Yes |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 276 kg |
| Products per pallet | 1 pc(s) |
