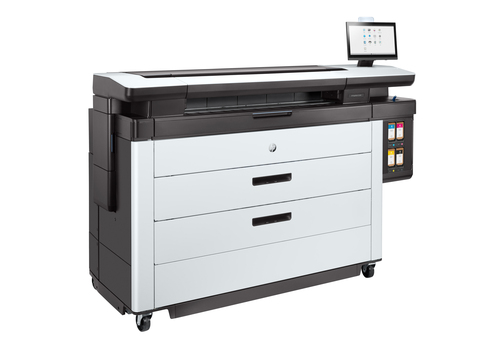

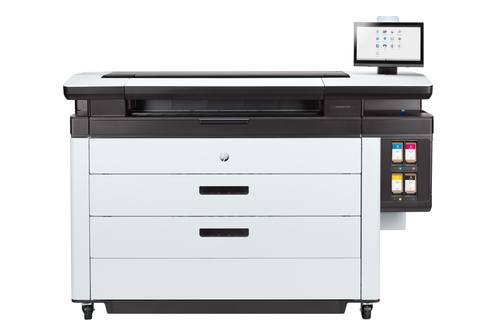

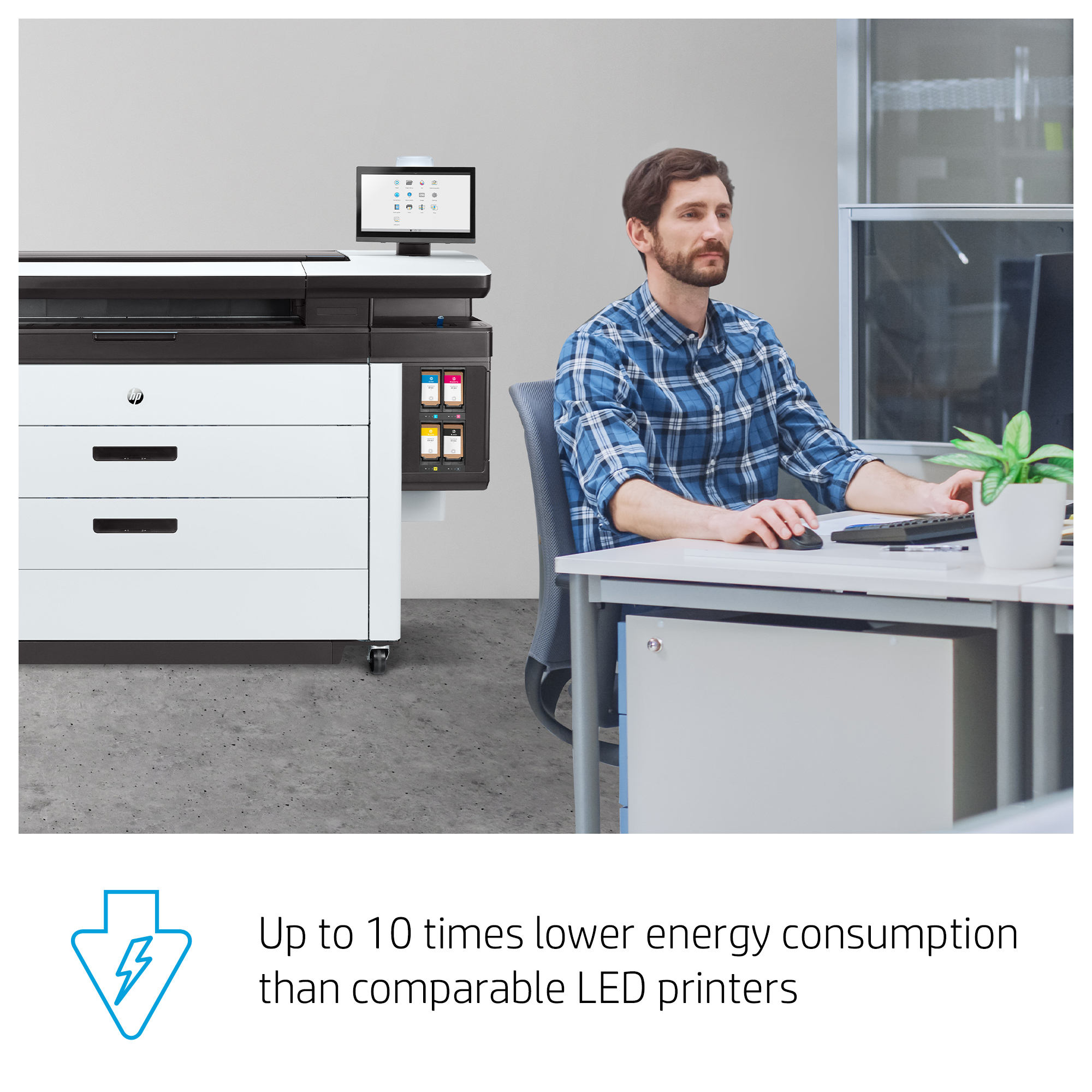

PageWide XL 8200 Printer
Model PageWide XL 8200 PrinterPart no. 4VW18A#B19EAN 195122294397
62 specifications
- Display39.6 cm (15.6")
- Memory16384 MB
- Storage628 GB
- Weight448 kg
- ColourYes
- Print technologyInkjet
Overview
- Display
- 39.6 cm (15.6")
- Memory
- 16384 MB
- Storage
- 628 GB
- Weight
- 448 kg
- Colour
- Yes
- Print technology
- Inkjet
- Brand
- HP
- Category
- Large Format Printer
- Model
- PageWide XL 8200 Printer
- Part numbers
- 4VW18A#B19, 4VW18A
- EAN / UPC
- 195122294397, 195122294366, 195122294373, 195122294434 +5 more
- Also known as
- HP PageWide XL 8200 40-in Printer
Specifications
62 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 1200 x 1200 DPI |
| Print resolution colour | 1200 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG |
| Printing colours | Black, Cyan, Magenta, Yellow |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Bond paper, Recycled paper, Matte paper |
| ISO A-series sizes (A0...A9) | A0, A1 |
| Cut sheets | No |
| Media thickness | 0.4 mm |
| Maximum roll length | 200 m |
| Maximum roll diameter | 17.7 cm |
| Recommended media weight | 19 - 53 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Built-in display | Yes |
| Display | LED |
| Colour display | Yes |
| Display diagonal | 39.6 cm (15.6") |
| Control type | Touch |
| Internal memory | 16384 MB |
| Internal storage capacity | 628 GB |
| Built-in processor | Yes |
| Sound pressure level (printing) | 60 dB |
| Country of origin | Malaysia |
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KC) |
Brand-specific features
| Specification | Value |
|---|---|
| HP PageWide Technology | Yes |
| HP Dynamic security | Yes |
| HP GTIN (EAN/UPC) | 198701864684, 195122294397 |
| HP GTIN (EAN/UPC) with options | (AB1) 198701864684; (B19) 195122294397 |
Power
| Specification | Value |
|---|---|
| Power consumption (sleep) | 16 W |
| Power consumption (typical) | 370 W |
| Power supply | 1200 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 22280 |
| Carbon emissions, manufacturing (kg of CO2e) | 3081 |
| Carbon emissions, logistics (kg of CO2e) | 251 |
| Carbon emissions, end-of-life (kg of CO2e) | 5 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 18943 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1955 mm |
| Depth | 785 mm |
| Height | 1637 mm |
| Weight | 448 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 2257 mm |
| Package depth | 1040 mm |
| Package height | 1578 mm |
| Package weight | 577 kg |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KC) |
| UNSPSC-code | 43212104 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
