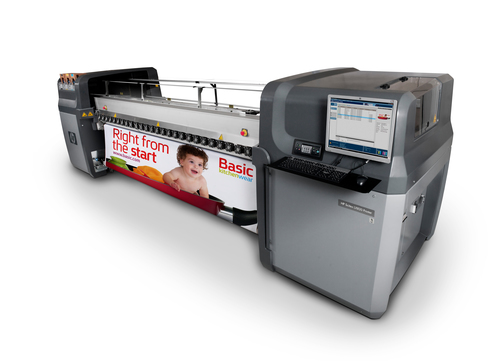

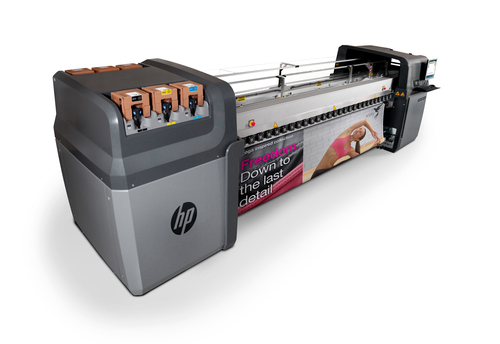

Latex 820 Printer ( Scitex LX820 Industrial Printer)
Model Latex 820 Printer ( Scitex LX820 Industrial Printer)Part no. CR773AEAN 885631780190
18 specifications
- Print cartridge volume (metric)3 litre
- Maximum media width3.2 m
- CertificationRoHS, WEEE; REACH
Overview
- Print cartridge volume (metric)
- 3 litre
- Maximum media width
- 3.2 m
- Certification
- RoHS, WEEE; REACH
- Brand
- HP
- Category
- Large Format Printer
- Model
- Latex 820 Printer ( Scitex LX820 Industrial Printer)
- Part number
- CR773A
- EAN / UPC
- 885631780190, 886111361564, 886111361571
- Also known as
- HP Latex 820 Printer ( Scitex LX820 Industrial Printer)
Specifications
18 specifications in 6 groups
Printing
| Specification | Value |
|---|---|
| Print cartridge volume (metric) | 3 litre |
| Print head | 3 (cyan/black, magenta/yellow, light cyan/light magenta) |
| Print head nozzles | 10560 |
| Colour management | Automatic colour calibration (built-in) |
Paper handling
| Specification | Value |
|---|---|
| Media types supported | Banners, self-adhesives, films, fabric, paper, specialty |
| Maximum media width | 3.2 m |
| Media handling | Roll-to-roll; guided double-sided process |
| Media thickness (by paper path) | Up to 31.5 mil |
Performance
| Specification | Value |
|---|---|
| Certification | RoHS, WEEE; REACH |
Power
| Specification | Value |
|---|---|
| Power requirements | Three phase (line-to-line voltage): 200 to 220 VAC (+/- 10%), 50 A max; 380 to 415 VAC (-10% +6%), 30 A max; 50/60 Hz; single phase: 115 to 127 VAC (+/- 10%); 200 to 240 VAC (-10% +6%); 50/60 Hz, 10 A max |
Packaging data
| Specification | Value |
|---|---|
| Bundled software | HP Internal Print Server Software |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: EU (EMC Directive) |
| Safety | EU (LVD and MD compliant, EN 60950-1, 12100-1 and 60204-1); Russia (GOST) |
| Compatible ink types, supplies | HP Latex Inks |
| Acoustic power emissions | 8.5 B(A) |
| Acoustic pressure emissions (standby) | 44 dB(A) |
| Ink drop | 12 pl |
| Roll maximum input | 1 |
