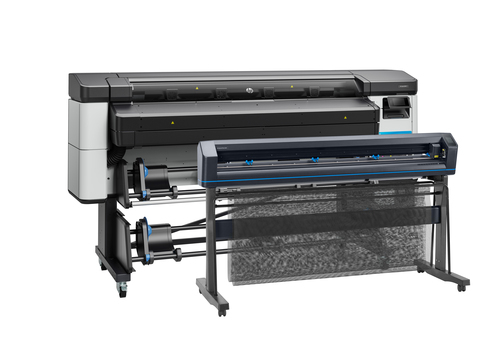

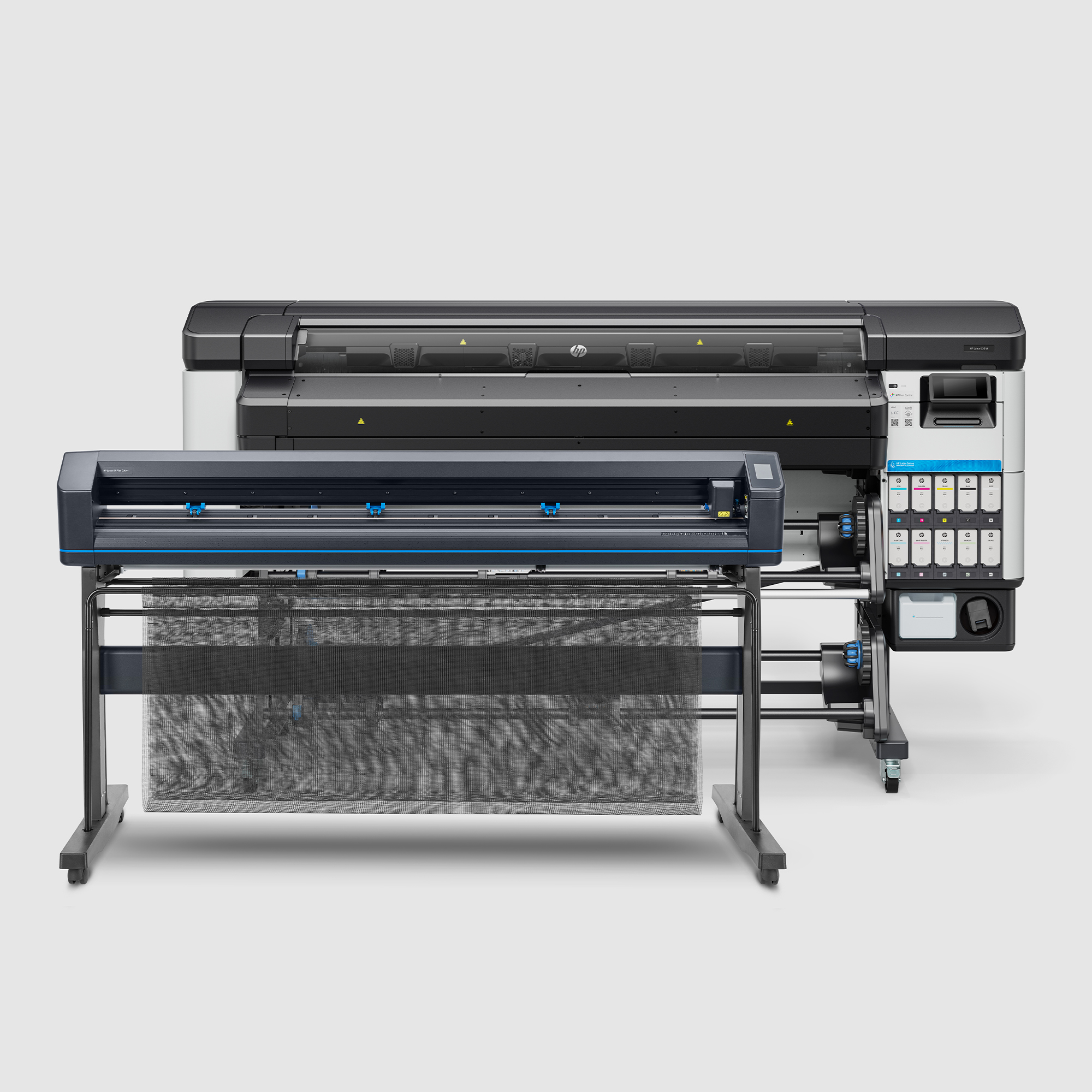

Latex 630 W Print and Cut Plus Solution
Model Latex 630 W Print and Cut Plus SolutionPart no. 171K7A#B19EAN 196786790942
51 specifications
- Weight2.36 kg
- ColourYes
- Print technologyLatex printing
- CopyingNo
- Paper tray media typesBanner
- Product colourBlack
Overview
- Weight
- 2.36 kg
- Colour
- Yes
- Print technology
- Latex printing
- Copying
- No
- Paper tray media types
- Banner
- Product colour
- Black
- Brand
- HP
- Category
- Large Format Printer
- Model
- Latex 630 W Print and Cut Plus Solution
- Part numbers
- 171K7A#B19, 171K7A
- EAN / UPC
- 196786790942, 195122065362, 196786790935, 196786790959 +3 more
- Also known as
- HP Latex 630 W Print and Cut Plus Solution
Specifications
51 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Latex printing |
| Colour | Yes |
| Maximum resolution | 1200 x 1200 DPI |
| Print resolution colour | 1200 x 1200 DPI |
| Number of print cartridges | 9 |
| Printing colours | Black, Light magenta, Yellow, White |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Banner |
| Cut sheets | Yes |
| Media thickness | 0.5 mm |
| Maximum roll width | 162.5 cm |
| Maximum roll diameter | 25 cm |
| Roll weight (rear roll) | 42 kg |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | No |
| Sound pressure level (printing) | 55 dB |
| Country of origin | China, Malaysia |
| Certification | Printer: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC); Cutter: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia |
Brand-specific features
| Specification | Value |
|---|---|
| HP Dynamic security | Yes |
| HP GTIN (EAN/UPC) | 196786790935, 196786790942, 196786790959, 196786790966 |
| HP GTIN (EAN/UPC) with options | (ABG) 196786790935; (B19) 196786790942; (B1K) 196786790959; (BCD) 196786790966 |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.25 W |
| Power consumption (sleep) | 2.5 W |
| Power consumption (typical) | 2100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 30 °C |
| Operating relative humidity (H-H) | 20 - 80% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 3885 |
| Carbon emissions, manufacturing (kg of CO2e) | 2394 |
| Carbon emissions, logistics (kg of CO2e) | 148 |
| Carbon emissions, end-of-life (kg of CO2e) | 95 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 1248 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 2603 mm |
| Depth | 844 mm |
| Height | 1405 mm |
| Weight | 2.36 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 2800 mm |
| Package depth | 1130 mm |
| Package height | 1271 mm |
| Package weight | 353 kg |
| Bundled software | HP PrintOS (PrintBeat, Configuration Center, HP Learn). Explore PrintOS premium software solutions within Professional Print Service Plans. |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Printer: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC); Cutter: Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia |
| UNSPSC-code | 39122221 |
Technical details
| Specification | Value |
|---|---|
| Box contents | Printer: HP Latex 630 W Printer, printheads, maintenance cartridge, printer stand, take-up reel, user maintenance kit, edge holders, quick reference guide, HP SAi Flexi RIP Print Cut Software, documentation software, power cords, air purgers, 2-in spindle adaptor; Cutter: HP Latex 64 Plus Cutter, cu |
