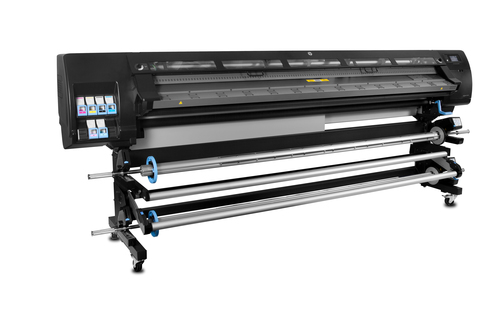

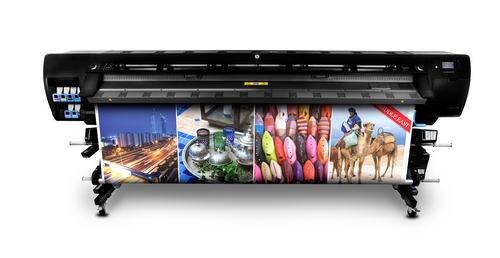

HP Latex 280 104-in Printer ( Designjet L28500 104-in Printer)
Model Latex 280 104-in Printer ( Designjet L28500 104-in Printer)Part no. CQ871AEAN 886111753031
21 specifications
- Print cartridge volume (metric)775 ml
- Maximum media width2641 mm
Overview
- Print cartridge volume (metric)
- 775 ml
- Maximum media width
- 2641 mm
- Brand
- HP
- Category
- Large Format Printer
- Model
- Latex 280 104-in Printer ( Designjet L28500 104-in Printer)
- Part number
- CQ871A
- EAN / UPC
- 886111753031, 886111964017, 886111964024, 888182199244
- Also known as
- HP Latex 280 104-in Printer ( Designjet L28500 104-in Printer)
Specifications
21 specifications in 6 groups
Printing
| Specification | Value |
|---|---|
| Print cartridge volume (metric) | 775 ml |
| Print head | 6 (2 x yellow/black, 2 x cyan/light cyan, 2 x light magenta/magenta) |
| Print head nozzles | 2112 |
Paper handling
| Specification | Value |
|---|---|
| Media types supported | Banners, vinyls, films, fabrics, papers, mesh (liner used with porous media) |
| Maximum media width | 2641 mm |
| Custom media sizes | 58 to 264 cm rolls |
| Media handling | Roll feed; take-up reel; automatic cutter (for vinyl, paper-based media, backlit polyester film, and thin banners) |
| Media thickness (by paper path) | Up to 0.5 mm |
Performance
| Specification | Value |
|---|---|
| Certification | WEEE; EU RoHS; REACH; EuP; FEMP; UL |
Power
| Specification | Value |
|---|---|
| Power requirements | Input voltage: 3-phase, 200 to 240 VAC (+/- 10%), 40 A or 380 to 415 VAC (-10% +6%), 24 A; 50/60 Hz (+/- 3 Hz) |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Depending on selected RIP solution. RIP to be purchased separately, not included |
Other features
| Specification | Value |
|---|---|
| Minimum system requirements for Macintosh | Depending on selected RIP solution. RIP to be purchased separately, not included |
| Minimum system requirements | Depending on selected RIP solution. RIP to be purchased separately, not included |
| Electromagnetic compatibility | Compliant with Class A requirements, including: EU (EMC Directive) |
| Functions | |
| Safety | EU (LVD and EN 60950-1 compliant); Russia (GOST) |
| Compatible ink types, supplies | HP Latex Inks |
| Acoustic power emissions | 8.0 B(A), 6.7 B(A) (standby) |
| Acoustic pressure emissions (standby) | 45 dB(A) |
| Ink drop | 12 pl |
| Roll maximum input | 1 |
