DesignJet Z9+ 64in Production Print
Model DesignJet Z9+ 64in Production PrintPart no. 2RM82A#B19EAN 195908148760
56 specifications
- Memory88064 MB
- Weight170 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- Maximum roll width162.6 cm
Overview
- Memory
- 88064 MB
- Weight
- 170 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- Maximum roll width
- 162.6 cm
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet Z9+ 64in Production Print
- Part numbers
- 2RM82A#B19, 2RM82A
- EAN / UPC
- 195908148760, 191628825509, 195908148753, 195908148784 +3 more
- Also known as
- HP Designjet Z9+ Pro 64-in Printer
Specifications
56 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 9 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow |
| Borderless printing | Yes |
| Print head | 5 universal printheads |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Coated paper, Bond paper, Photo paper, Banner |
| Maximum roll width | 162.6 cm |
| Maximum roll diameter | 17 cm |
| Roll weight (rear roll) | 25 kg |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | White, Black |
| Built-in display | Yes |
| Colour display | Yes |
| Internal memory | 88064 MB |
| Country of origin | Malaysia |
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP Dynamic security | Yes |
| HP GTIN (EAN/UPC) | 195908148760 |
Power
| Specification | Value |
|---|---|
| Power consumption (PowerSave) | 35 W |
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 9 W |
| Power consumption (standby) | 9 W |
| Power supply | 150 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 1166 |
| Carbon emissions, manufacturing (kg of CO2e) | 896 |
| Carbon emissions, logistics (kg of CO2e) | 94 |
| Carbon emissions, end-of-life (kg of CO2e) | 95 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 81 |

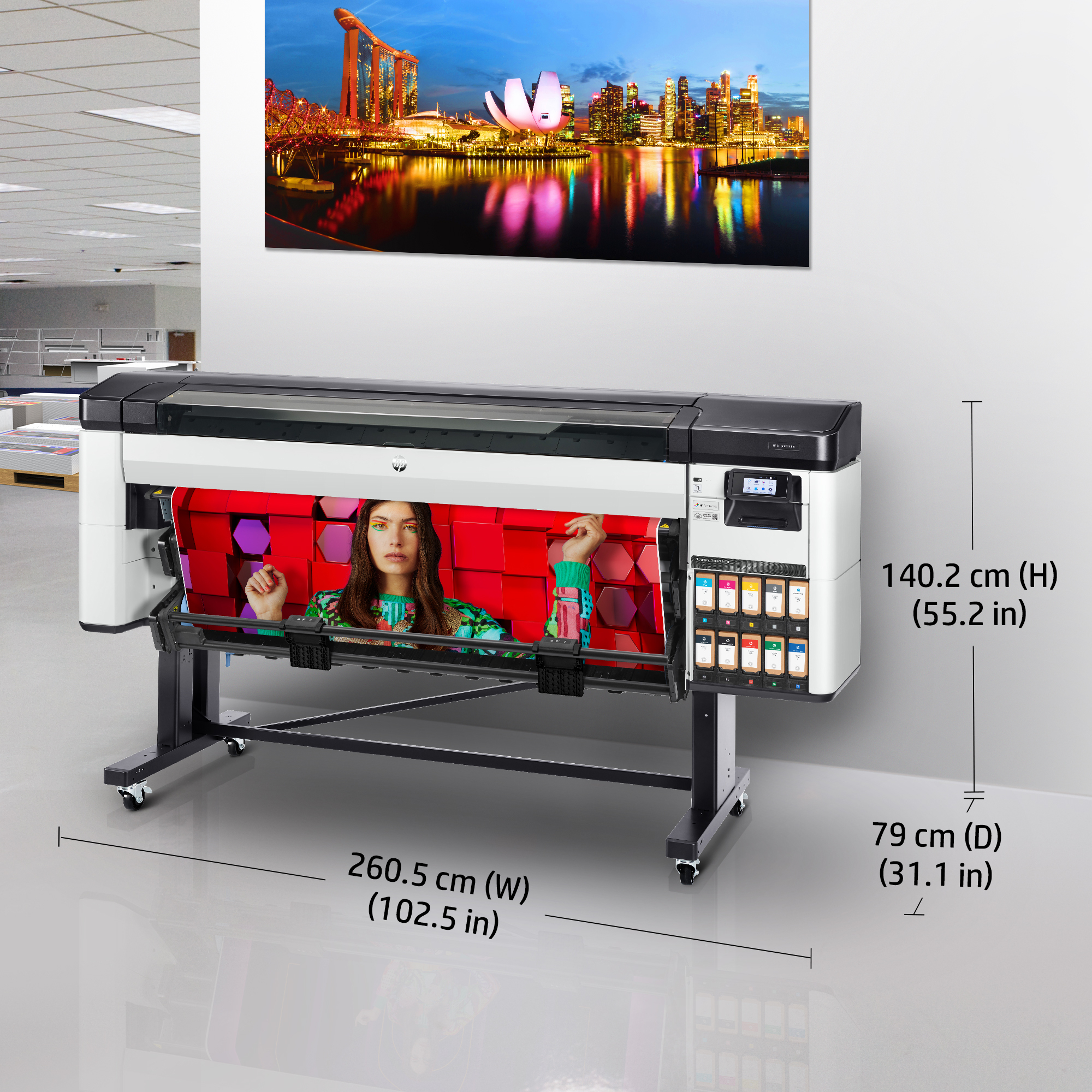

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 2605 mm |
| Depth | 790 mm |
| Height | 1402 mm |
| Weight | 170 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 2800 mm |
| Package depth | 750 mm |
| Package height | 1302 mm |
| Package weight | 264 kg |
| Bundled software | HP Click printing software, HP PrintOS, HP Partner Link, HP DesignJet Accounting Tool, HP Web Jetadmin, HP SmartStream (optional), HP JetAdvantage Security Manager (optional) |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia and New Zealand (RCM), Japan (VCCI), Korea (KCC), China (CCC) |
| UNSPSC-code | 43212107 |
Technical details
| Specification | Value |
|---|---|
| Box contents | HP DesignJet Z9+ Pro Printer, printheads, introductory ink cartridges, maintenance cartridge, printer stand and media bin, 3-in core adapter, quick reference guide, setup poster, power cord, user maintenance kit |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model BCLAA-2005 · certified Apr 5, 2021 · United States, Japan, Canada, Taiwan, Switzerland
| Measurement | Value |
|---|---|
| Sleep-mode power | 0 W |
| Standby power | 0 W |
