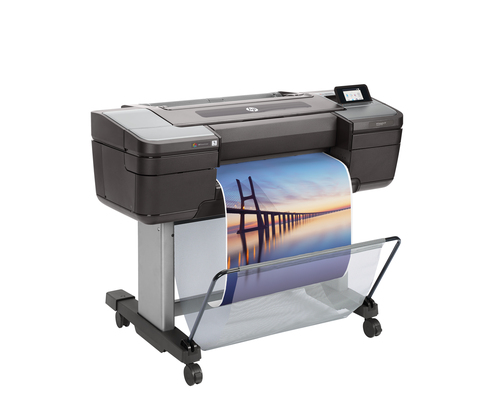

DesignJet Z9+ 24-in PostScript Printer
Model DesignJet Z9+ 24-in PostScript PrinterPart no. W3Z71A#B19EAN 192018667655
75 specifications
- Memory4096 MB
- Weight72 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
- Maximum print size610 x 1676
Overview
- Memory
- 4096 MB
- Weight
- 72 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Maximum print size
- 610 x 1676
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet Z9+ 24-in PostScript Printer
- Part numbers
- W3Z71A#B19, W3Z71A, W3Z71D
- EAN / UPC
- 192018667655, 191628726691, 192018667662, 192018667679 +12 more
- Also known as
- HP Designjet Z9+ 24-in PostScript Printer Plus Edition
Specifications
75 specifications in 16 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 9 |
| Page description languages | PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow |
| Borderless printing | Yes |
| Print head | 5 |
| Print speed (best quality) | 3.7 m²/h |
| Print speed (normal quality) | 6.9 m²/h |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 610 x 1676 |
| Paper tray media types | Coated paper, Bond paper, Photo paper, Banner |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Media thickness | 0.8 mm |
| Roll paper | Yes |
| Custom media sizes | 210 x 279 to 610 x 1676 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| USB connector | USB Type-A |
| Direct printing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi Direct | Yes |
| RJ-45 ports quantity | 1 |
| Mobile printing technologies | HP ePrint |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Built-in display | Yes |
| Display | LED |
| Control type | Touch |
| Internal memory | 4096 MB |
| Storage media | HDD |
| Country of origin | China, Thailand |
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP ePrint | Yes |
| HP Web Jetadmin | Yes |
| HP Dynamic security | Yes |
| HP GTIN (EAN/UPC) | 192018667655 |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.1 W |
| Power consumption (sleep) | 6.5 W |
| Power consumption (typical) | 100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -25 - 55 °C |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Yes |
| Windows operating systems supported | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainable technologies and materials | 30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; ENERGY STAR certified; EPEAT registered |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 814 |
| Carbon emissions, manufacturing (kg of CO2e) | 755 |
| Carbon emissions, logistics (kg of CO2e) | 52 |
| Carbon emissions, end-of-life (kg of CO2e) | 1 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 6 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1293 mm |
| Depth | 695 mm |
| Height | 998 mm |
| Weight | 72 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1440 mm |
| Package depth | 766 mm |
| Package height | 718 mm |
| Package weight | 102 kg |
| Cartridge(s) included | Yes |
| Drivers included | Yes |
| Quick start guide | Yes |
| Bundled software | HP Click printing software, HP PrintOS, HP Web Jetadmin, HP DesignJet Utility including HP Color Center, HP Partner Link, HP JetAdvantage Security Manager (optional), HP SmartStream (optional) |
Other features
| Specification | Value |
|---|---|
| Touchscreen | Yes |
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| UNSPSC-code | 43212104 |
Technical details
| Specification | Value |
|---|---|
| Box contents | HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, quick reference guide, setup poster, power cord |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model X9D24A · certified Jul 9, 2026 · United States, Japan, Canada, Taiwan, Switzerland
| Measurement | Value |
|---|---|
| Sleep-mode power | 0 W |
| Standby power | 0 W |
ENERGY STAR certified
Imaging equipment · model BCLAA-1702 · certified Oct 24, 2019 · United States, Switzerland, Taiwan, Japan, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 0.34 W |
| Standby power | 0.01 W |
