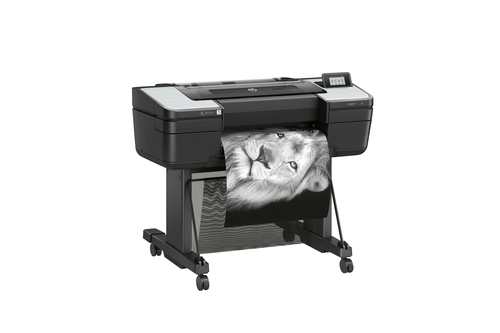

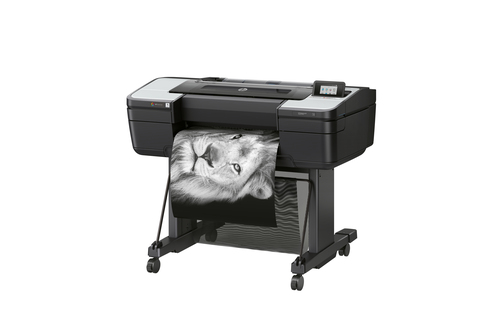

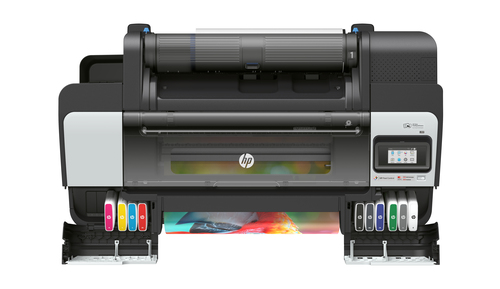

DesignJet Z9+ 24-in PostScript
Model DesignJet Z9+ 24-in PostScriptPart no. W3Z71D#B19EAN 199896723978
55 specifications
- Weight72 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- ISO A-series sizes (A0...A9)A1, A2, A3, A4
- Country of originChina
Overview
- Weight
- 72 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- ISO A-series sizes (A0...A9)
- A1, A2, A3, A4
- Country of origin
- China
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet Z9+ 24-in PostScript
- Part number
- W3Z71D#B19
- EAN / UPC
- 199896723978
- Also known as
- HP Designjet Z9+ 24-in PostScript large format printer Thermal inkjet Colour 2400 x 1200 DPI Ethernet LAN
Specifications
55 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 9 |
| Page description languages | PostScript 3, PDF 1.7, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow, Grey |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
| Maximum media thickness | 0.8 mm |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Coated paper, Bond paper, Photo paper, Banner |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Print margin cut-sheet | 5 x 17 x 5 x 5 |
| Media width (rolls) | 610 mm |
| Media width (sheets) | 610 mm |
| Custom media sizes | 210 x 279 to 610 x 1676 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| USB connector | USB Type-A |
| Direct printing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi Direct | Yes |
| RJ-45 ports quantity | 1 |
| Mobile printing technologies | HP ePrint |
Performance
| Specification | Value |
|---|---|
| Country of origin | China |
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP Web Jetadmin | Yes |
| HP Dynamic security | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.1 W |
| Power consumption (sleep) | 6.5 W |
| Power supply | 100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainable technologies and materials | 30% post-consumer recycled plastic; Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; Highest WIR Print Permanence Ratings in the Industry; ENERGY STAR certified; EPEAT registered |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1293 mm |
| Depth | 695 mm |
| Height | 998 mm |
| Weight | 72 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1440 mm |
| Package depth | 766 mm |
| Package height | 718 mm |
| Package weight | 102 kg |
| Quick start guide | Yes |
| Bundled software | HP Click printing software, HP Web Jetadmin, HP Partner Link, HP Security Manager (optional), HP SmartStream (optional) |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| UNSPSC-code | 45101511 |
Technical details
| Specification | Value |
|---|---|
| Box contents | HP DesignJet Z9+ PostScript Printer, printheads, introductory ink cartridges, printer stand and media bin, spindle, 3-in core adapter[10], quick reference guide, setup poster, power cord |
