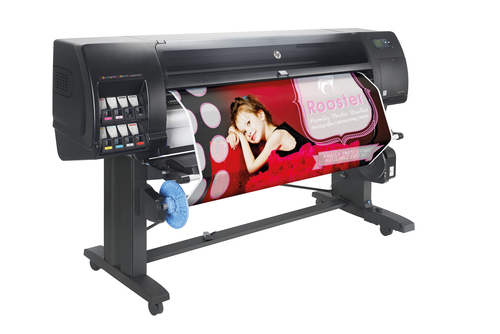

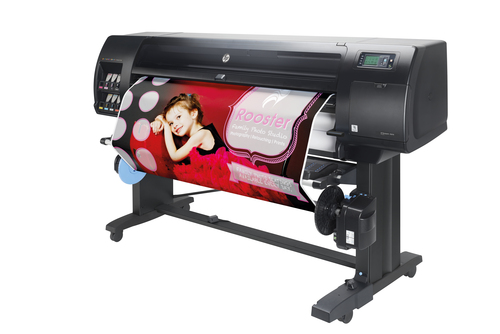

HP DesignJet Z6810 42-in Production Printer
Model DesignJet Z6810 42-in Production PrinterPart no. 2QU12A#B19EAN 192018991873
54 specifications
- Memory65536 MB
- Weight123 kg
- ColourYes
- Print technologyLatex printing
- CopyingNo
- ISO A-series sizes (A0...A9)A1
Overview
- Memory
- 65536 MB
- Weight
- 123 kg
- Colour
- Yes
- Print technology
- Latex printing
- Copying
- No
- ISO A-series sizes (A0...A9)
- A1
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet Z6810 42-in Production Printer
- Part numbers
- 2QU12A#B19, 2QU12A
- EAN / UPC
- 192018991873, 191628779475, 192018991880, 192018991897 +3 more
- Also known as
- HP Designjet Z6810 42-in Production Printer
Specifications
54 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Latex printing |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 8 |
| Page description languages | HP-GL/2, HP-RTL, CALS G4 |
| Printing colours | Cyan, Photo black, Matte black, Light magenta, Yellow, Grey |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Coated paper, Bond paper, Photo paper, Banner |
| ISO A-series sizes (A0...A9) | A1 |
| Media thickness | 0.6 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
| Internal memory | 65536 MB |
| Storage media | HDD |
| Country of origin | China |
| Certification | Compliant with Class A requirements, including: EU (EMC Directive) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP GTIN (EAN/UPC) | 192018991873 |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 5.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 1211 |
| Carbon emissions, manufacturing (kg of CO2e) | 896 |
| Carbon emissions, logistics (kg of CO2e) | 94 |
| Carbon emissions, end-of-life (kg of CO2e) | 95 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 126 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1970 mm |
| Depth | 690 mm |
| Height | 1370 mm |
| Weight | 123 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 2280 mm |
| Package depth | 735 mm |
| Package height | 1200 mm |
| Package weight | 177 kg |
| Cartridge(s) included | Yes |
| Quick start guide | Yes |
| Bundled software | Free: HP Applications Center, HP Click, printer drivers, HP DesignJet Utility including HP Color Center, HP Partner Link Pay-per-use, HP Web JetAdmin; Pay: HP SmartStream |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: EU (EMC Directive) |
| Proofing paper | Yes |
| UNSPSC-code | 43212104 |
Technical details
| Specification | Value |
|---|---|
| Box contents | HP DesignJet Z6810 42-in Production Printer, spindle, printheads, introductory ink cartridges, maintenance cartridge, printer stand, media bin, 3-in spindle adapter kit, quick reference guide, setup poster, startup software, power cord |
