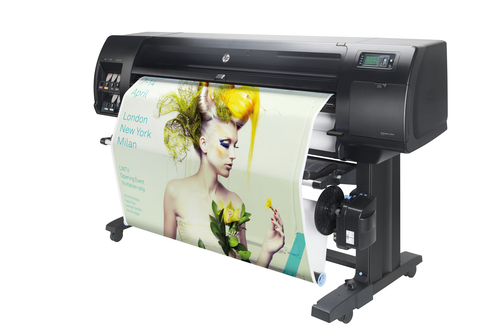

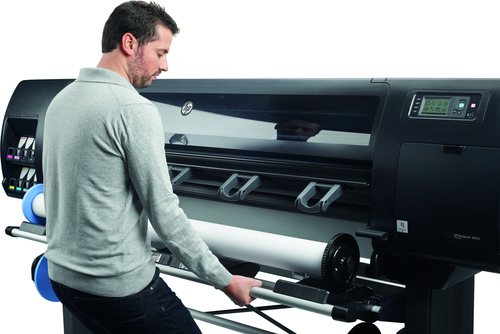

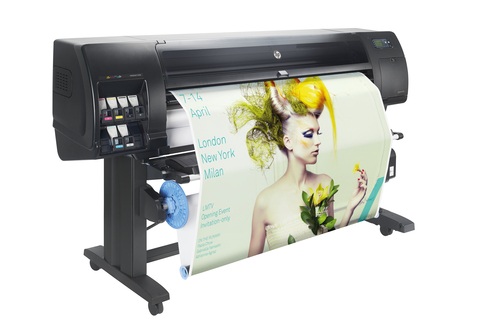

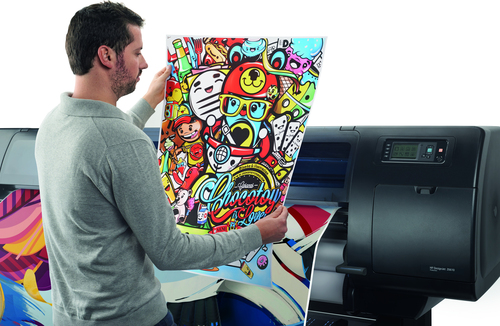

HP DesignJet Z6610 60-in Production Printer
Model DesignJet Z6610 60-in Production PrinterPart no. 2QU13A#B19EAN 192018991828
58 specifications
- Memory65536 MB
- Storage500 GB
- Weight190 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
Overview
- Memory
- 65536 MB
- Storage
- 500 GB
- Weight
- 190 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet Z6610 60-in Production Printer
- Part numbers
- 2QU13A#B19, 2QU13A
- EAN / UPC
- 192018991828, 191628779482, 192018991835, 192018991842 +3 more
- Also known as
- HP Designjet Z6610 60-in Production Printer
Specifications
58 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL, CALS G4 |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow, Grey |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Coated paper, Bond paper, Photo paper, Banner |
| ISO A-series sizes (A0...A9) | A1 |
| Media thickness | 0.6 mm |
| Maximum roll width | 152.4 cm |
| Maximum roll diameter | 17 cm |
| Media width (rolls) | 280 - 1524 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | No |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN data rates | 1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
| Internal memory | 65536 MB |
| Internal storage capacity | 500 GB |
| Storage media | HDD |
| Country of origin | China, Malaysia |
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP Jetdirect | Yes |
| HP GTIN (EAN/UPC) | 192018991828 |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 5.3 W |
| Power consumption (typical) | 270 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 2760 |
| Carbon emissions, manufacturing (kg of CO2e) | 2259 |
| Carbon emissions, logistics (kg of CO2e) | 389 |
| Carbon emissions, end-of-life (kg of CO2e) | 8 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 105 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 2430 mm |
| Depth | 690 mm |
| Height | 1370 mm |
| Weight | 190 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 2684 mm |
| Package depth | 750 mm |
| Package height | 1200 mm |
| Package weight | 220 kg |
| Bundled software | Free: HP Applications Center, HP Click, printer drivers, HP DesignJet Utility including HP Color Center, HP Partner Link Pay-per-use, HP Web JetAdmin; Pay: HP SmartStream |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (MSIP) |
| UNSPSC-code | 43212104 |
Technical details
| Specification | Value |
|---|---|
| Box contents | HP DesignJet Z6610 Production Printer; Spindle; Printheads; Introductory ink cartridges; Maintenance cartridge; Printer stand; Take-up reel; 3-in spindle adapter kit; Quick reference guide; Setup poster; Startup software; Power cord |
