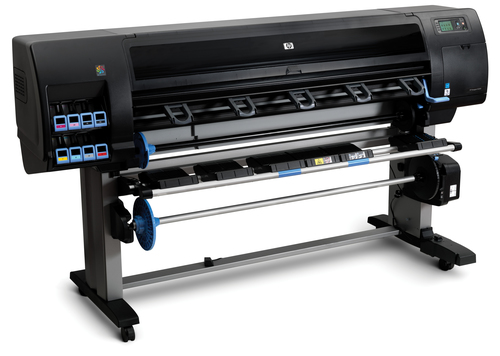

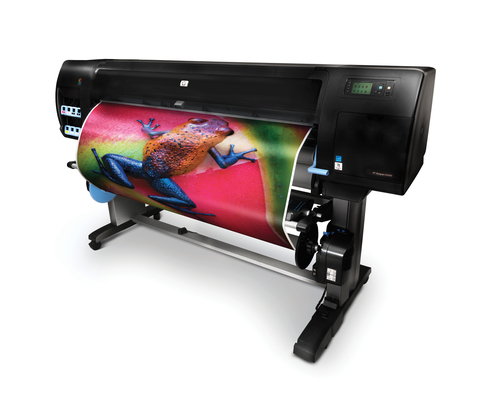

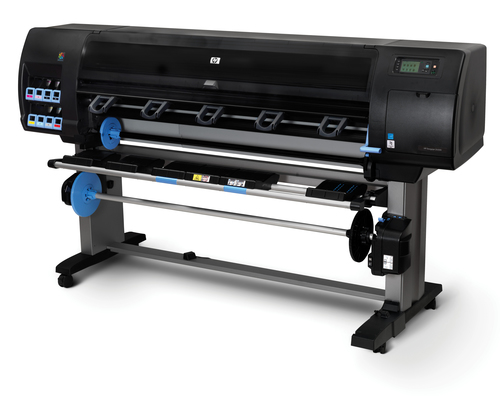

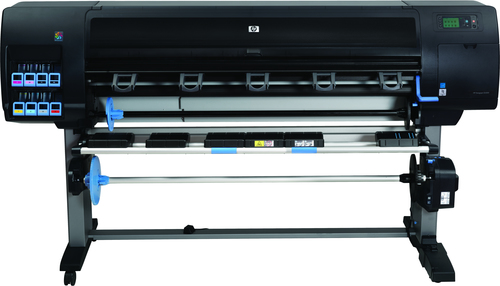

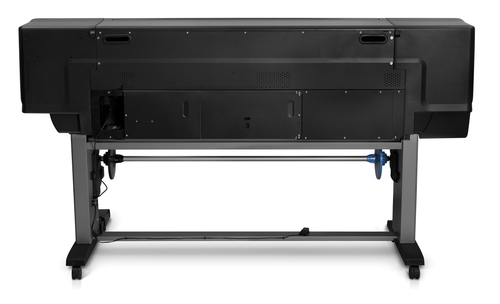

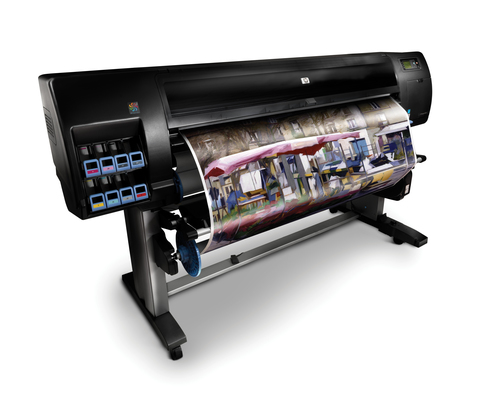

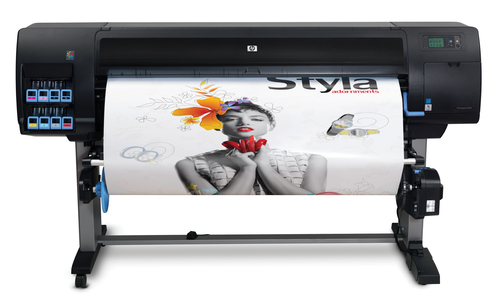

Designjet Z6200 60-in Photo Printer
Model Designjet Z6200 60-in Photo PrinterPart no. CQ111AEAN 8856314073320
50 specifications
- Memory32768 MB
- Storage160 GB
- Weight190 kg
- ColourYes
- Media thickness0.56 mm
- Power requirements100 - 127 V
Overview
- Memory
- 32768 MB
- Storage
- 160 GB
- Weight
- 190 kg
- Colour
- Yes
- Media thickness
- 0.56 mm
- Power requirements
- 100 - 127 V
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet Z6200 60-in Photo Printer
- Part number
- CQ111A
- EAN / UPC
- 8856314073320, 885631407301, 885631407318, 885631407325 +4 more
- Also known as
- HP Designjet Z6200 60-in Photo Printer large format printer Colour 2400 x 1200 DPI Ethernet LAN
Specifications
50 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 8 |
| Page description languages | HP-GL/2, HP-RTL |
| Printing colours | Light Cyan, Light magenta, Magenta, Matte black, Photo black, Yellow |
| Print cartridge volume (metric) | 775 ml |
| Print speed (best quality) | 3.2 |
| Print speed (normal quality) | 2.1 |
| Print head nozzles | 2112 |
Paper handling
| Specification | Value |
|---|---|
| Media thickness | 0.56 mm |
| Maximum roll length | 175 m |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10/100/1000Base-T(X) |
Performance
| Specification | Value |
|---|---|
| Internal memory | 32768 MB |
| Internal storage capacity | 160 GB |
| Storage media | HDD |
| Built-in processor | Intel® Celeron® |
| Processor frequency | 1000 MHz |
| Sound power level (standby) | 38 dB |
| Sound pressure level (printing) | 53 dB |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 127 V |
| Power consumption (standby) | 100 W |
| Power consumption (typical) | 270 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 41 - 104 °F |
| Storage relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 55 °C |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Windows 7/Vista/XP/Server 2008/Server 2003; Mac OS X v10.4/v10.5/v10.6; Citrix XenApp; Citrix XenServer. |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 2430 x 690 x 1370 mm |
| Weight | 190 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 250 kg |
| Package dimensions (WxDxH) | 2690 x 750 x 1200 mm |
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.1% |
| Coated paper | Yes |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| Glossy paper | Yes |
| Photo paper | Yes |
| Proofing paper | Yes |
| Roll-up film | Yes |
| Minimum line width | 0.02 mm |
| Roll maximum input | 1 |
