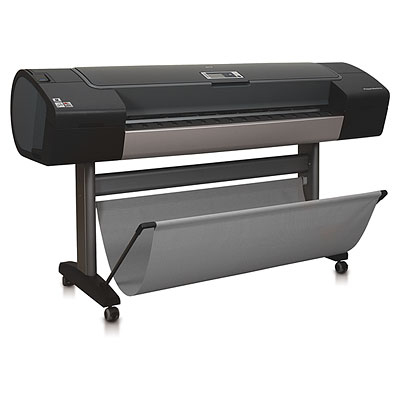

Designjet Z3200ps 44-in Photo Printer
Model Designjet Z3200ps 44-in Photo PrinterPart no. Q6721A#B1K-A1EAN 8844201389456
98 specifications
- Memory256 MB
- Storage80 GB
- Weight86 kg
- Page description languagesTIFF
- Media thickness> 0.8
- Ethernet LANYes
Overview
- Memory
- 256 MB
- Storage
- 80 GB
- Weight
- 86 kg
- Page description languages
- TIFF
- Media thickness
- > 0.8
- Ethernet LAN
- Yes
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet Z3200ps 44-in Photo Printer
- Part numbers
- Q6721A#B1K-A1, Q6721A, Q6721A#B1K-KIT
- EAN / UPC
- 8844201389456, 884420138945, 884420138952, 884420138969 +10 more
- Also known as
- HP Designjet Z3200ps 44-in Photo Printer large format printer Ethernet LAN
Specifications
98 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Page description languages | TIFF |
| Printing colours | Blue, Gloss enhancer, Green, Light Cyan, Light grey, Light magenta, Magenta, Matte black, Photo black, Red, Yellow |
| Print head | 6 (magenta and yellow, light magenta and light cyan, photo black and light gray, matte black and red, gloss enhancer and gray, blue and green) |
| Print head nozzles | 12672 |
| Colour management | HP Color Center, HP Vivera pigment inks, HP embedded spectrophotometer |
| Print speed (colour image, best quality, glossy paper) | 2.6 m2/hr 27.8 ft2/hr |
| Print speed (colour image, draft quality, coated paper) | 17 m2/hr 182.9 ft2/hr |
| Print speed (colour image, normal quality, coated paper) | 92.4 ft2/hr 8.6 m2/hr |
| Print speed (colour image, normal quality, glossy paper) | 47.6 ft2/hr 4.4 m2/hr |
Paper handling
| Specification | Value |
|---|---|
| Media types supported | Photographic (satin, gloss, semi-gloss, matte), proofing (semi-gloss, high-gloss contract, semi-gloss contract, matte), fine art printing material (smooth, textured, watercolour, satin, aquarella, litho-realistic, canvas), self-adhesive (indoor, vinyl, polypropylene), banner and sign (display film, |
| Media thickness | > 0.8 |
| Maximum roll length | 91.4 m |
| Maximum roll diameter | 13.6 cm |
| Print margin cut-sheet | 5 x 17 x 5 x 5 |
| Print margin roll | 5 mm |
| Maximum media width | 1118 mm |
| Roll top margin | 5 mm |
| Maximum print length | 91 m |
| Maximum length of sheet media | 1676.4 mm |
| Standard media sizes | All standard sizes larger than A4 |
| Custom media sizes | 216 x 279 to 1118 x 1676 mm |
| Media handling | Sheet feed, roll feed, automatic cutter (cuts all media except canvas) |
| Media sizes supported (imperial) | A, B, C, D, E |
| Media thickness (by paper path) | Up to 31.5 mil |
| Media weights by paper path | 133 lb |
| Non-printable area roll media (imperial) | 0.2 x 0.2 x 0.2 x 0.2 in (full bleed available on glossy/satin roll media) |
| Recommended media weight | 500 g/m² |
| Recommended media weight (imperial) | 133 lb |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Internal storage capacity | 80 GB |
| Storage media | HDD |
| Built-in processor | Mobile Intel Centrino |
| Processor frequency | 600 MHz |
| Certification | SWOP, ISO, GRACOL, 3DAP |
Power
| Specification | Value |
|---|---|
| Power requirements | Input voltage (autoranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 amps max |
| Power consumption (typical) | 200 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 59 - 95 °F |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
| Recommended operating temperature range (T-T) | 15 - 35 °C |
| Operating altitude (imperial) | 9,842 ft |
System requirements
| Specification | Value |
|---|---|
| Browser supported | Internet Explorer 5.0 and higher, Netscape 6.0.1 and higher, Safari for Mac OS 10.3 and higher, Mozilla 1.5 and higher |
| Compatible operating systems | Microsoft Windows Vista (32/64-bit), XP Home, XP Professional, XP Professional x64, Server 2008 (32/64-bit), Windows Server 2003 (32/64 bit), Windows Terminal Services, Citrix MetaFrame, Mac OS X v 10.4, Mac OS X v 10.5 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1770 x 690 x 1047 mm |
| Weight | 86 kg |
| Product dimensions when open (LxWxD) | 177 cm (69.7") |
| Size (imperial) | 177 cm (69.7") |
| Maximum dimensions (W x D x H) | 1770 x 690 x 1047 mm |
| Dimension note (imperial) | printer with stand |
| Dimension note (metric) | printer with stand |
| Pallet dimensions (W x D x H) | 1965 x 780 x 780 mm |
| Pallet dimensions (W x D x H) (imperial) | 1963.4 x 779.8 x 779.8 mm (77.3 x 30.7 x 30.7") |
| Pallet weight (imperial) | 122.9 kg (271 lbs) |
| Weight (imperial) | 189 lb |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 123 kg |
| Package dimensions (WxDxH) | 1965 x 780 x 780 mm |
| Bundled software | Printer drivers, HP Printer Utility including HP Color Center, HP Advanced Profiling Solution |
| Package dimensions (W x D x H) | 1963.4 x 779.8 x 779.8 mm (77.3 x 30.7 x 30.7") |
| Package weight (imperial) | 122.9 kg (271 lbs) |
Other features
| Specification | Value |
|---|---|
| Minimum system requirements for Macintosh | Mac OS X v10.4, v10.5: PowerPC G3 or Intel Core Processor; 256 MB RAM; 1 GB available hard disk space |
| Line accuracy | +/- 0.010 mm |
| Minimum system requirements | Microsoft Windows XP Home, XP Professional: Intel Pentium 4, 1 GHz, 512 MB RAM, 2 GB available hard disk space Mac OS X v10.4, v10.5: PowerPC G4, G5, or Intel Core Processor, 1 GB RAM, 2 GB available hard disk space |
| Electromagnetic compatibility | Compliance for Class B products: EU (EMC Directive), USA (FCC rules), Canada (DoC), Australia (ACA), New Zealand (MoC), China (CCC), Japan (VCCI), Korea (MIC) and Taiwan (BSMI) |
| Embedded web server | Yes |
| Maximum media length (imperial) | 66" |
| Print resolution (colour, normal quality) | 1200 x 1200 DPI |
| Printer management | HP Web Jetadmin |
| Safety | IEC 60950-1 compliant, EU LVD and EN 60950-1 compliant, certified by CSA for Canada and US, Argentina IRAM, Singapore PSB, Russia GOST, China CCIB, Taiwan BSMI |
| Minimum line width | 0.0558 mm |
| Compatible ink types, supplies | HP Vivera pigment inks |
| Acoustic power emissions | 6.5 B(A) (active/printing), 4.4 B(A) (standby) |
| Print quality (colour, best quality) | 2400 DPI |
| Acoustic power emissions (standby) | 44 dB |
| Acoustic pressure emissions (standby) | 29 dB(A) |
| Control panel | 240 x 160 pixel greyscale graphical display with Asian fonts support, 4 direct-access buttons, 7 navigation buttons and 2 bicolour lights (Ready, Processing, Attention, Error) |
| Driver updates | Latest Windows printer drivers information available at http:// and more information on all printer drivers available at http:///country/us/en/support.html?pageDisplay=drivers |
| Ink drop | 4 pl (lc, lm, lg, pK, E, G), 6 pl (M, Y, mK, R, GN, B) |
| JetDirect Compatible Products | Yes |
| Line width minimum | 0.0022 in |
| Maximum print length (imperial) | 300 ft; Operating system and application dependent |
| Media sizes standard (imperial rolls) | Letter to E-size sheets, 11 to 44-in rolls |
| Non-printable area (imperial cut-sheet) | 0.2 x 0.67 x 0.2 x 0.2 in |
| Print quality (black, best quality) | 2400 x 1200 DPI |
| Print quality (black, draft quality) | 1200 DPI |
| Print quality (black, normal quality) | 1200 DPI |
| Printing material waterfastness | Water-resistant on a range of HP creative and speciaty papers |
| Roll maximum input | 1 |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 123 kg |
| Products per pallet | 1 pc(s) |
