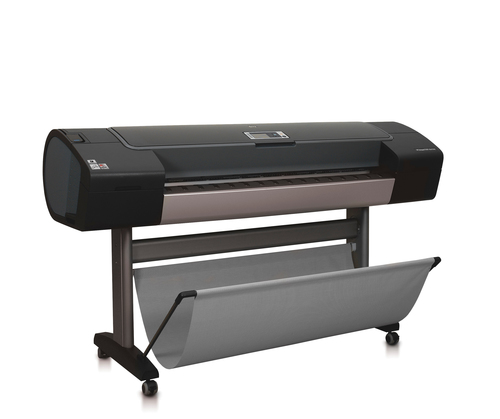

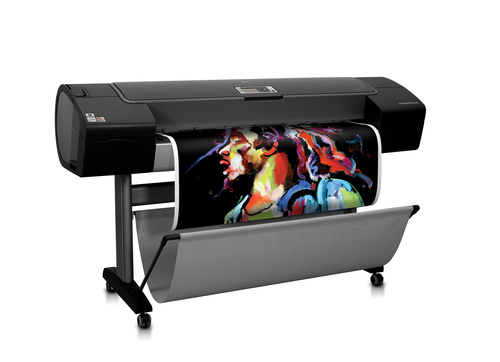

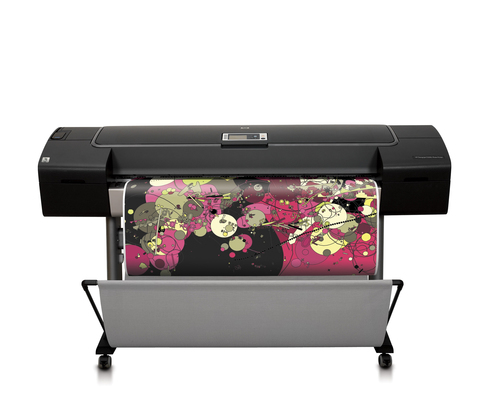

Designjet Z3200 Photo Printer, 44"
Model Designjet Z3200 Photo Printer, 44"Part no. Q6719BEAN 886111644254
48 specifications
- Memory256 MB
- Storage80 GB
- Weight86 kg
- ColourYes
- Maximum print size1118 x 1676 mm
- Power requirements100 - 240v AC, 50/60Hz
Overview
- Memory
- 256 MB
- Storage
- 80 GB
- Weight
- 86 kg
- Colour
- Yes
- Maximum print size
- 1118 x 1676 mm
- Power requirements
- 100 - 240v AC, 50/60Hz
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet Z3200 Photo Printer, 44"
- Part number
- Q6719B
- EAN / UPC
- 886111644254, 886111642670, 886111644247, 886111644261 +1 more
- Also known as
- HP Designjet Z3200 Photo Printer, 44" large format printer Colour 2400 x 1200 DPI 1118 x 1676 mm Ethernet LAN
Specifications
48 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 12 |
| Page description languages | PCL 3 |
| Printing colours | Blue, Cyan, Green, Light Cyan, Light magenta, Magenta, Red, Yellow |
| Print cartridge volume (metric) | 130ml |
| Print speed (best quality) | 12.4ppm |
| Print speed (normal quality) | 3.8ppm |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 1118 x 1676 mm |
| Cut sheets | Yes |
| Media thickness | 0.8 mm |
| Maximum roll length | 91.4 m |
| Maximum roll width | 60.9 cm |
| Maximum roll diameter | 13.4 cm |
| Roll top margin | 5 mm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10/100Base-T |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Internal storage capacity | 80 GB |
| Storage media | HDD |
| Sound pressure level (printing) | 49 dB |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240v AC, 50/60Hz |
| Power consumption (typical) | 200 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 41 - 104 °F |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1770 x 690 x 1047 mm |
| Weight | 86 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 123 g |
| Package dimensions (WxDxH) | 1965 x 780 x 780 mm |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.2% |
| Minimum system requirements | Windows Vista/XP Professional/Server 2003/Server 2008 Mac OS X v 10.4/0.5/10.6 |
| Coated paper | Yes |
| Glossy paper | Yes |
| Photo paper | Yes |
| Proofing paper | Yes |
| Roll-up film | Yes |
| Vinyl media | Yes |
