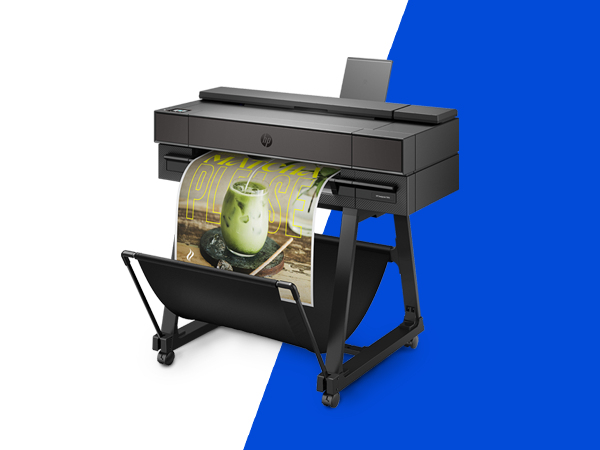

DesignJet XT870 24-in Printer
Model DesignJet XT870 24-in PrinterPart no. AM0X9FEAN 199251089374
35 specifications
- Memory1024 MB
- Weight38.5 kg
- ColourYes
- ISO A-series sizes (A0...A9)A1, A2, A3, A4
- HP GTIN (EAN/UPC)881767182266, 199251089374
- Power consumption (off)0.2 W
Overview
- Memory
- 1024 MB
- Weight
- 38.5 kg
- Colour
- Yes
- ISO A-series sizes (A0...A9)
- A1, A2, A3, A4
- HP GTIN (EAN/UPC)
- 881767182266, 199251089374
- Power consumption (off)
- 0.2 W
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet XT870 24-in Printer
- Part number
- AM0X9F
- EAN / UPC
- 199251089374, 881767182266
- Also known as
- HP DesignJet XT870 24-in Printer
Specifications
35 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | PDF, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF |
| Printing colours | Cyan, Matte black, Magenta, Yellow |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Coated paper, Plain paper, Bond paper, Photo paper, Matte paper, Banner, Heavy paper, Satin paper |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Custom media sizes | Auto sheet feeder: 210 x 279 to 305 x 457 mm; Manual feed: 210 x 279 to 609 x 1676 mm |
Performance
| Specification | Value |
|---|---|
| Internal memory | 1024 MB |
| Country of origin | China, Thailand |
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP GTIN (EAN/UPC) | 881767182266, 199251089374 |
| HP GTIN (EAN/UPC) with options | (ACJ) 881767182266; (B1K) 199251089374 |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.2 W |
| Power consumption (sleep) | 2.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating altitude | 0 - 3000 m |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1100 mm |
| Depth | 690 mm |
| Height | 935 mm |
| Weight | 38.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1310 mm |
| Package depth | 570 mm |
| Package height | 640 mm |
| Package weight | 48.5 kg |
| Bundled software | HP Click Driver for Windows 11, HP Click App for Windows and Mac, HP App for Windows, Mac, Android and iOS, PartnerLink |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC) |
| UNSPSC-code | 43212110 |
Technical details
| Specification | Value |
|---|---|
| Box contents | HP DesignJet XT870 Printer, printhead, introductory ink cartridges, printer stand, spindle, guide, warranty flyer, power cord |
