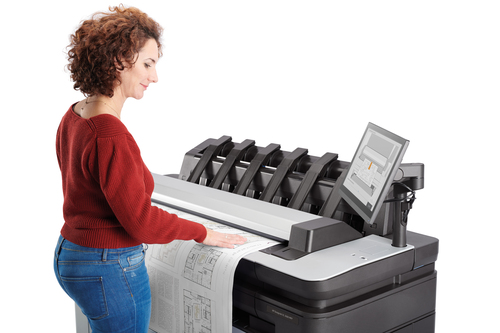

HP DesignJet XL 3600dr 36-in Multifunction Printer

DesignJet XL 3600dr 36-in Multifunction Printer

Model DesignJet XL 3600dr 36-in Multifunction PrinterPart no. 6KD25H#B19EAN 193905101450

71 specifications

Storage500 GB
Weight170 kg
ColourYes
Print technologyThermal inkjet
CopyingColour copying
ScanningColour scanning

See all specifications

Overview

Storage: 500 GB
Weight: 170 kg
Colour: Yes
Print technology: Thermal inkjet
Copying: Colour copying
Scanning: Colour scanning

Brand: HP
Category: Large Format Printer
Model: DesignJet XL 3600dr 36-in Multifunction Printer
Part numbers: 6KD25H#B19, 6KD25A, 6KD25H
EAN / UPC: 193905101450, 193808437182, 193808566332, 193808566349 +7 more
Also known as: HP DesignJet XL 3600dr 36-in Multifunction Printer

Specifications

71 specifications in 15 groups

Printing

Specification	Value
Print technology	Thermal inkjet
Colour	Yes
Maximum resolution	2400 x 1200 DPI
Print resolution colour	2400 x 1200 DPI
Number of print cartridges	6
Page description languages	HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4
Printing colours	Cyan, Photo black, Matte black, Magenta, Yellow
Print head	1
Print speed (normal quality)	19,3 s/A1, 3 A1/min
Print speed (normal quality, A1)	180 pph

Copying

Specification	Value
Copying	Colour copying
Copier resize	25 - 400%

Scanning

Specification	Value
Scanning	Colour scanning
Optical scanning resolution	600 x 600 DPI
Scan to	E-mail, Network folder, USB
Accuracy	0.1%
Maximum media thickness	91.4 cm
Maximum scan length	8 m

Paper handling

Specification	Value
Paper tray media types	Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Banner, Heavy paper, Satin paper
ISO A-series sizes (A0...A9)	A0, A1, A2, A3, A4
Media thickness	0.8 mm
Maximum roll length	180 m
Maximum roll width	91.4 cm
Custom media sizes	210 x 279 to 914 x 1219 mm

Ports & interfaces

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
USB port	No
Ethernet interface type	Gigabit Ethernet
Direct printing	Yes
Ethernet LAN data rates	10,100,1000 Mbit/s
Wi-Fi Direct	Yes
Supported network protocols	TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3), Apple Bonjour Compatible, WS Discovery, Embedded Web Server (HTTP, HTTPS), IPsec, SMTP (email), Raw IP printing (9100), LPD, IPP, WS print, NTLM v2, SMBv3, SSL/TLS, 802.1X authentication (LEAP, PEAP, EAP-TLS), DFS
Mobile printing technologies	HP ePrint

Performance

Specification	Value
Product colour	Black, White
Built-in display	Yes
Internal storage capacity	500 GB
Country of origin	China
Certification	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
HP segment	Business

Brand-specific features

Specification	Value
HP Web Jetadmin	Yes
HP Dynamic security	Yes
HP GTIN (EAN/UPC)	193808566325

Power

Specification	Value
Power consumption (off)	0.3 W
Power consumption (sleep)	14 W
Power consumption (typical)	120 W
AC input voltage	100 - 240 V
AC input frequency	50/60 Hz

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80%
Storage relative humidity (H-H)	0 - 95%
Storage temperature (T-T)	-25 - 55 °C

Sustainability

Specification	Value
Sustainability certificates	ENERGY STAR
Sustainability compliance	Yes

Carbon footprint

Specification	Value
Total carbon footprint (kg of CO2e)	3881
Carbon emissions, manufacturing (kg of CO2e)	2860
Carbon emissions, logistics (kg of CO2e)	692
Carbon emissions, end-of-life (kg of CO2e)	321
Total carbon emissions, w/o use phase (kg of CO2e)	8

Weight & dimensions

Specification	Value
Width	1500 mm
Depth	660 mm
Height	1310 mm
Weight	170 kg

Packaging data

Specification	Value
Package width	1625 mm
Package depth	770 mm
Package height	1260 mm
Package weight	220 kg
Bundled software	HP Click App , HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager, HP SmartStream (optional), HP SmartTracker(optional), HP Click Driver for Windows 11

Other features

Specification	Value
All-In-One-multitasking	Yes
Electromagnetic compatibility	Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC)
UNSPSC-code	43212107

Technical details

Specification	Value
Box contents	HP DesignJet XL 3600 Multifunction Printer, printhead, introductory ink cartridges, scanner calibration sheet, 2-in hub right adapter kit, quick reference guide, setup poster, power cord
