DesignJet T950 36-in Printer
Model DesignJet T950 36-in PrinterPart no. 2Y9H1A#B19EAN 196548313112
63 specifications
- Memory1024 MB
- Weight56 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- Maximum print sizeA0 (841 x 1189 mm)
Overview
- Memory
- 1024 MB
- Weight
- 56 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- Maximum print size
- A0 (841 x 1189 mm)
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet T950 36-in Printer
- Part numbers
- 2Y9H1A#B19, 2Y9H1A
- EAN / UPC
- 196548313112, 196548313099, 196548313105, 196548313129 +7 more
- Also known as
- HP DesignJet T950 36-in Printer
Specifications
63 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | PDF, HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF |
| Printing colours | Cyan, Matte black, Magenta, Yellow |
| Print speed (normal quality, A1) | 120 pph |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Coated paper, Plain paper, Bond paper, Photo paper, Matte paper, Banner, Heavy paper, Satin paper |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Cut sheets | Yes |

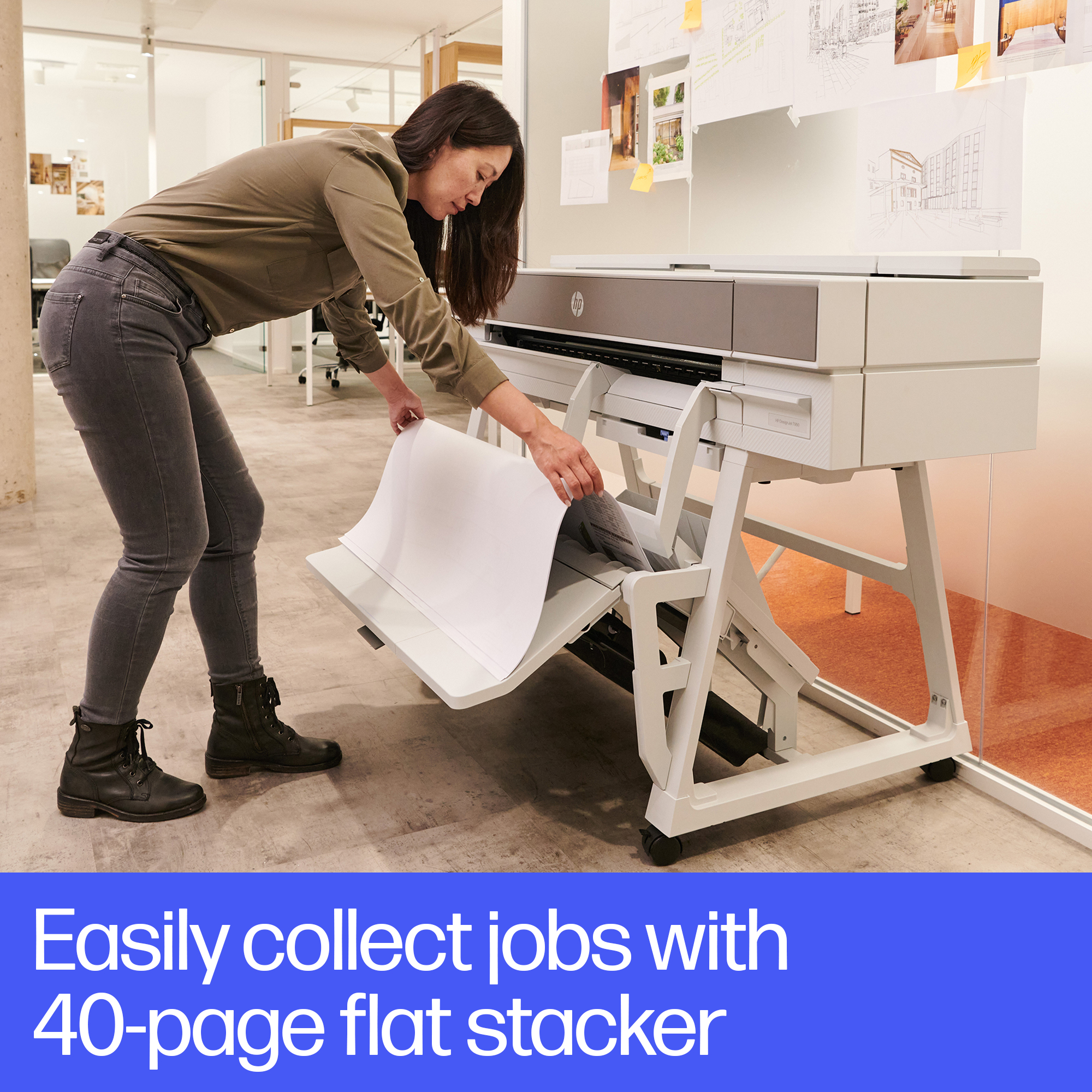

| Stacker | Yes |
| Media thickness | 0.3 mm |
| Maximum roll width | 91.4 cm |
| Maximum roll diameter | 14 cm |
| Roll weight (rear roll) | 1.3 kg |
| Custom media sizes | Front-loading input tray: 210 x 279 to 305 x 457 mm; Manual feed: 210 x 279 to 914 x 1676 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Mobile printing technologies | HP ePrint |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Internal memory | 1024 MB |
| Country of origin | China, Thailand, Switzerland |
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP Dynamic security | Yes |
| HP GTIN (EAN/UPC) | 198701770640, 196548313099, 196548313105, 196548313112, 196548313129, 196548313136, 196548313143 |
| HP GTIN (EAN/UPC) with options | (AB1) 198701770640; (ABG) 196548313099; (ACJ) 196548313105; (B19) 196548313112; (B1K) 196548313129; (BCD) 196548313136; (EMU) 196548313143 |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.2 W |
| Power consumption (sleep) | 2.5 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (typical) | 30 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 426 |
| Carbon emissions, manufacturing (kg of CO2e) | 360 |
| Carbon emissions, logistics (kg of CO2e) | 32 |
| Carbon emissions, end-of-life (kg of CO2e) | 21 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 13 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1407 mm |
| Depth | 720 mm |
| Height | 967 mm |
| Weight | 56 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1575 mm |
| Package depth | 630 mm |
| Package height | 780 mm |
| Package weight | 84 kg |
| Bundled software | HP Click App, HP Click Driver for Windows 11, HP app for Windows, macOS, Android, and iOS |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (RED Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Korea (KCC) |
| UNSPSC-code | 43212104 |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, REACH, RoHS |
| Box contents | HP DesignJet T950 Printer, printhead, introductory ink cartridges, printer stand, spindle, guide, warranty flyer, power cord |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model 2Y9H1A · certified Sep 28, 2023 · United States, Switzerland, Taiwan, Japan, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 1.82 W |
| Standby power | 0.07 W |
