DesignJet T830 36-in Multifunction Printer
Model DesignJet T830 36-in Multifunction PrinterPart no. F9A30D#B19EAN 194850951800
75 specifications
- Memory1024 MB
- Weight58.2 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingColour copying
- ScanningColour scanning
Overview
- Memory
- 1024 MB
- Weight
- 58.2 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- Colour copying
- Scanning
- Colour scanning
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet T830 36-in Multifunction Printer
- Part numbers
- F9A30D#B19, F9A30D
- EAN / UPC
- 194850951800, 194850338748, 194850951794, 194850951817 +1 more
- Also known as
- HP Designjet T830 36-in Multifunction Printer
Specifications
75 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |

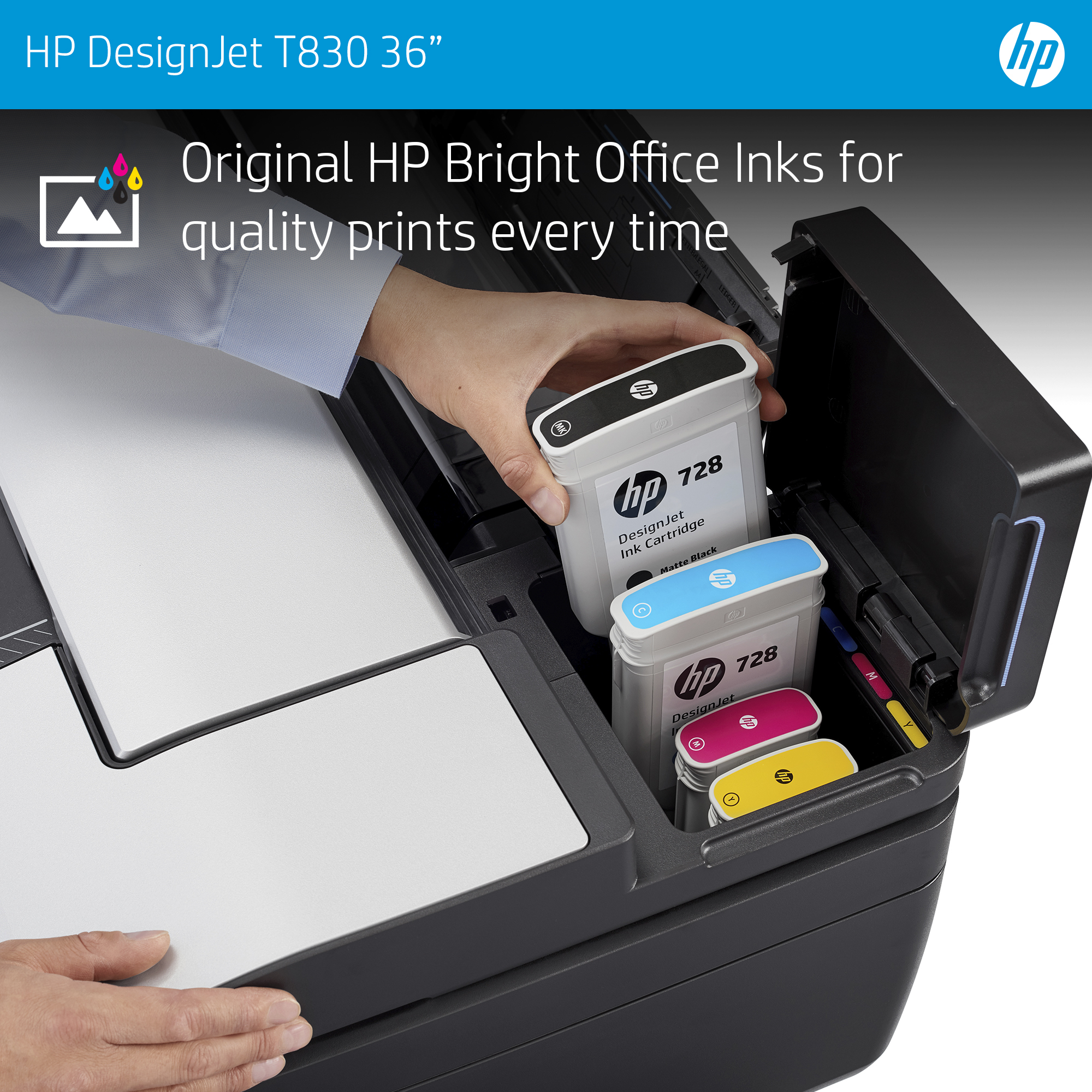

| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4, URF |
| Printing colours | Cyan, Matte black, Magenta, Yellow |
| Print head | 1 |
| Print speed (normal quality, A1) | 82 pph |
Copying
| Specification | Value |
|---|---|
| Copying | Colour copying |
| Maximum copy resolution | 600 x 600 DPI |
| Copier resize | 50 - 400% |
| Maximum number of copies | 99 copies |
Scanning
| Specification | Value |
|---|---|
| Scanning | Colour scanning |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan resolution | 600 x 600 DPI |
| Maximum media thickness | 0.8 mm |
| Maximum scan length | 2.77 m |
| Maximum scan width | 91.4 cm |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Recycled paper, Matte paper, Heavy paper, Satin paper |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Cut sheets | Yes |
| Media thickness | 11,8 mm |
| Maximum roll diameter | 10 cm |
| Print margin cut-sheet | 5 mm |
| Print margin roll | 5 mm |
| Custom media sizes | Input tray: 210 x 279 to 330 x 482 mm; Manual feed: 330 x 482 to 914 x 1897 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| Direct printing | Yes |
| Wi-Fi Direct | Yes |
| Mobile printing technologies | HP ePrint, Apple AirPrint |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |
| Built-in display | Yes |
| Internal memory | 1024 MB |
| Maximum internal memory | 1000 MB |
| Sound pressure level (quiet mode) | 48 dB |
| Country of origin | China |
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP Dynamic security | Yes |
| HP GTIN (EAN/UPC) | 194850951800 |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.2 W |
| Power consumption (sleep) | 3.5 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (typical) | 35 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC) |
| Sustainable technologies and materials | Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR certified; EPEAT registered |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 679 |
| Carbon emissions, manufacturing (kg of CO2e) | 586 |
| Carbon emissions, logistics (kg of CO2e) | 53 |
| Carbon emissions, end-of-life (kg of CO2e) | 1 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 39 |

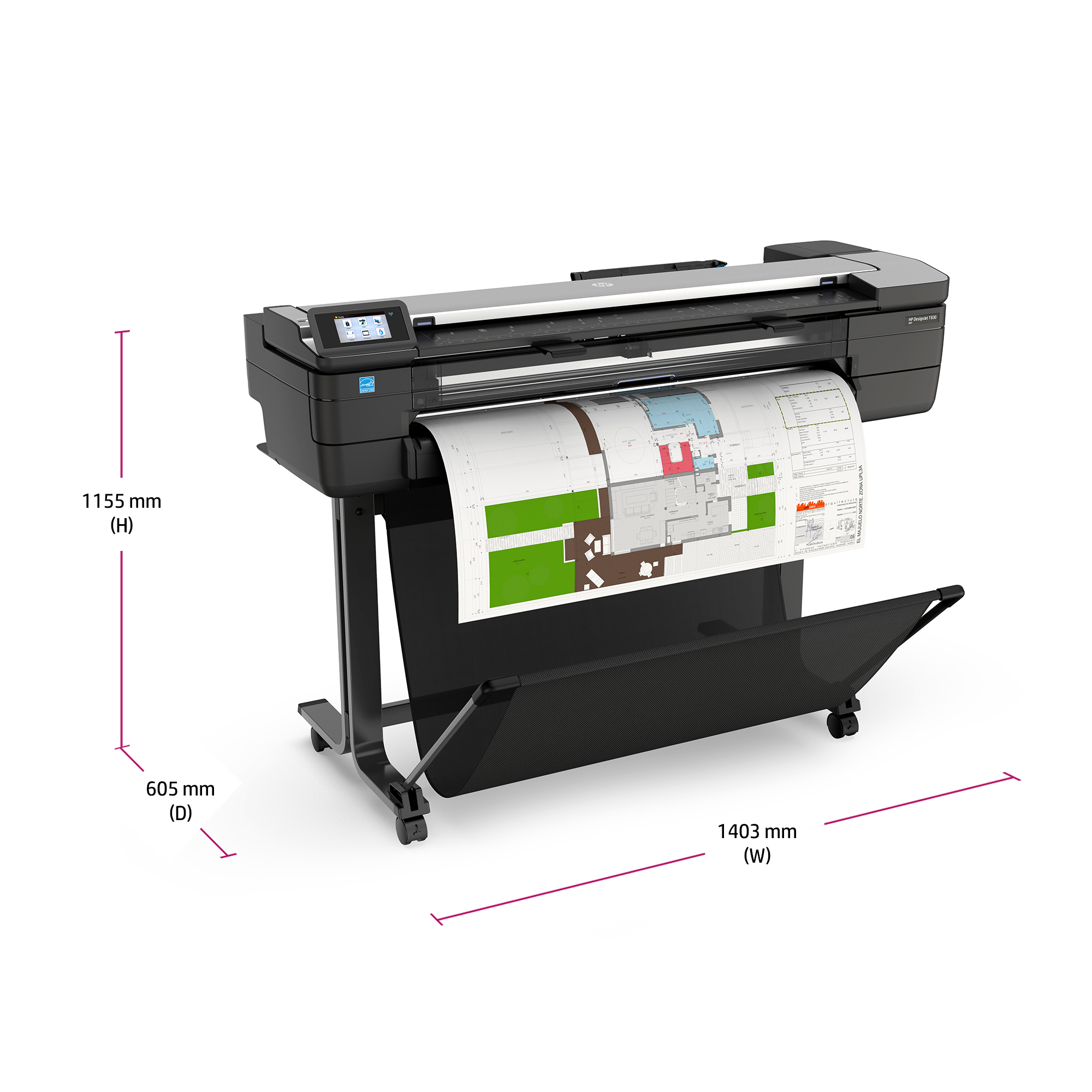

Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1403 mm |
| Depth | 605 mm |
| Height | 1155 mm |
| Weight | 58.2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1578 mm |
| Package depth | 570 mm |
| Package height | 645 mm |
| Package weight | 80.7 kg |
| Bundled software | HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Support Assistant, HP Print Preview for Windows, HP DesignJet Utility for macOS and Windows |
Other features
| Specification | Value |
|---|---|
| All-In-One-multitasking | Yes |
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
| Maximum internal memory | 1 GB |
| UNSPSC-code | 43212110 |
Technical details
| Specification | Value |
|---|---|
| Box contents | HP DesignJet T830 36-in MFP, printhead, ink cartridges, printer stand, spindle, quick reference guide, setup poster, startup software, power cord, refeed preventers |
