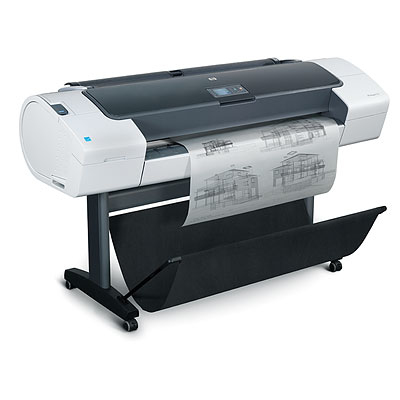

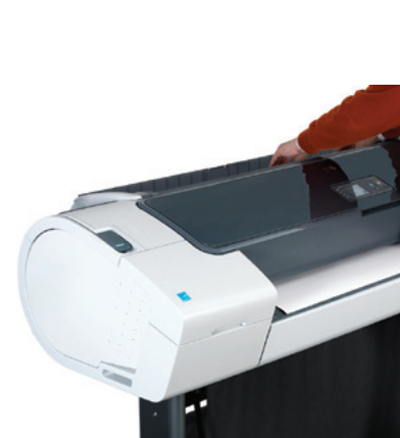

Designjet T770 w/HDD
Model Designjet T770 w/HDDPart no. CN375AEAN 884962725955
61 specifications
- Storage160 GB
- Weight81.6 kg
- ColourYes
- ISO A-series sizes (A0...A9)A0, A1, A2, A3, A4
- Power requirements100 - 240V, 50/60Hz
- Operating temperature (T-T)5 - 40 °C
Overview
- Storage
- 160 GB
- Weight
- 81.6 kg
- Colour
- Yes
- ISO A-series sizes (A0...A9)
- A0, A1, A2, A3, A4
- Power requirements
- 100 - 240V, 50/60Hz
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet T770 w/HDD
- Part number
- CN375A
- EAN / UPC
- 884962725955, 884420922995, 884962303313, 884962303320 +2 more
- Also known as
- HP Designjet T770 w/HDD large format printer Colour 2400 x 1200 DPI Ethernet LAN
Specifications
61 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | PCL 3 |
| Printing colours | Black, Cyan, Grey, Magenta, Pigment black, Yellow |
| Print cartridge volume (metric) | 69/130 ml |
| Print head | 3 |
| Print speed (best quality) | 33.3 ft²/hr |
| Print speed (line, black, normal quality, A1) | 103 pph |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Plain paper |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Media thickness | 0.8 mm |
| Maximum roll diameter | 13.5 cm |
| Maximum media width | 1118 mm |
| Roll top margin | 5 mm |
| Roll paper | Yes |
| Recommended media weight | 60 - 328 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10/100Base-T(X) |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal storage capacity | 160 GB |
| Storage media | HDD |
| Built-in processor | Intel® Pentium® M |
| Processor frequency | 800 MHz |
| Certification | WEEE, RoHS, REACH, EuP, FEMP |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240V, 50/60Hz |
| Power consumption (PowerSave) | 7 W |
| Power consumption (off) | 0.1 W |
| Power consumption (typical) | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating temperature (T-T) | 41 - 104 °F |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
| Recommended humidity operating range | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Windows 7 Windows Vista (32/64-Bit) Windows Server 2008 (32/64-Bit) Windows XP Home/Professional (32/64-Bit) Windows Server 2003 (32/64-Bit) Mac OS X v10.4, v10.5 Novell NetWare 5.x, 6.x Citrix XenApp Citrix XenServer |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1770 x 702 x 1050 mm |
| Weight | 81.6 kg |
| Size (imperial) | 111.8 cm (44") |
| Weight (imperial) | 81.6 kg (180 lbs) |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 109.8 kg |
| Package dimensions (WxDxH) | 1929.8 x 766 x 779.7 mm |
| Package dimensions (W x D x H) | 1929.9 x 766.1 x 779.8 mm (76 x 30.2 x 30.7") |
| Package weight (imperial) | 110.7 kg (244 lbs) |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/-0.1% |
| Coated paper | Yes |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
| Electromagnetic compatibility | FCC, ICES, EMC, ACMA, CCC, KCC, VCCI |
| Functions | |
| Photo paper | Yes |
| Safety | CSA, LVD, GOST, CCC, PSB, IRAM, NYCE |
| Vinyl media | Yes |
| Minimum line width | 0.06 mm |
| Acoustic power emissions | 6.2B(A) |
| Acoustic pressure emissions | 46 dB |
| Acoustic power emissions (standby) | 44 dB |
| Acoustic pressure emissions (standby) | 26dB(A) |
| Ink drop | 9/6 pl |
