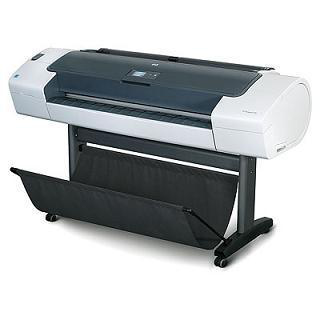

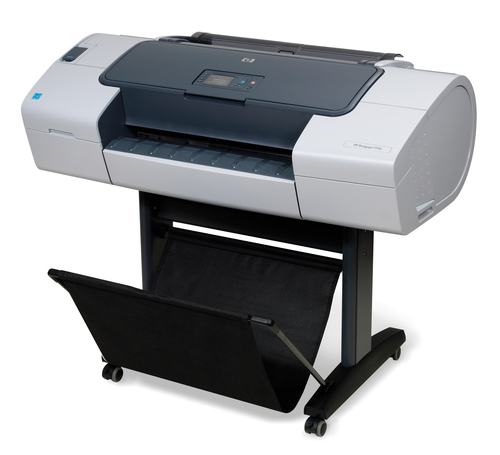

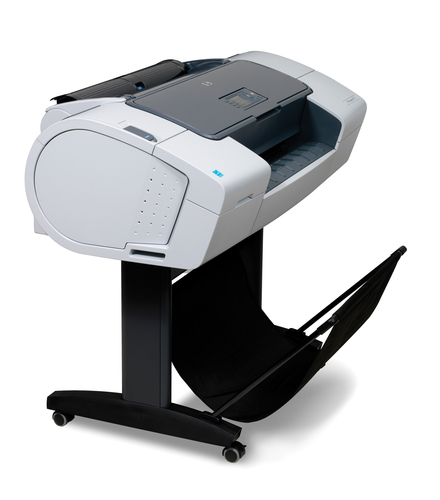

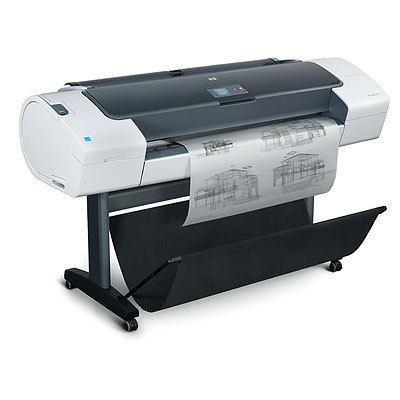

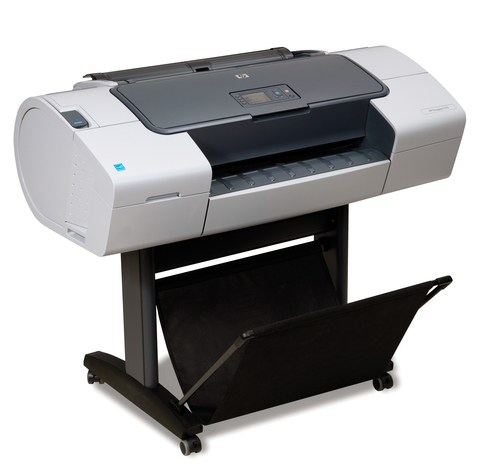

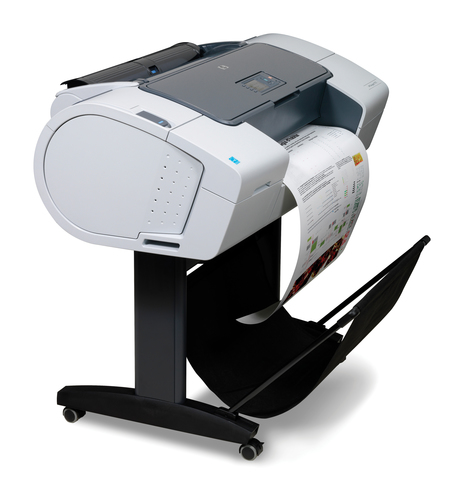

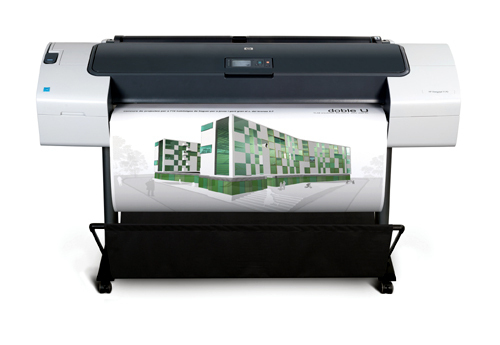

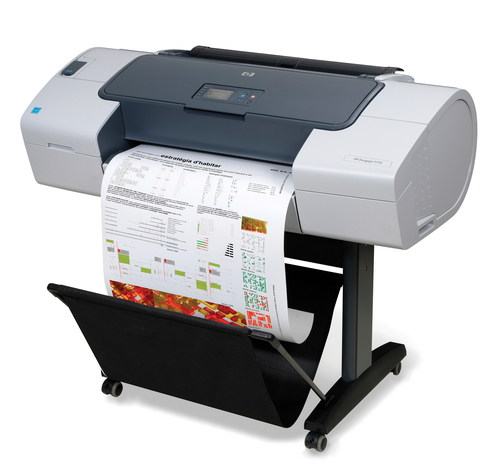

Designjet T770 610 mm
Model Designjet T770 610 mmPart no. CQ305AEAN 8849628583876
48 specifications
- Memory2048 MB
- Weight61 kg
- ColourYes
- Maximum print sizeA1 (594 x 841 mm)
- Power consumption (standby)27 W
- Operating temperature (T-T)5 - 40 °C
Overview
- Memory
- 2048 MB
- Weight
- 61 kg
- Colour
- Yes
- Maximum print size
- A1 (594 x 841 mm)
- Power consumption (standby)
- 27 W
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet T770 610 mm
- Part number
- CQ305A
- EAN / UPC
- 8849628583876, 884962545164, 884962858387, 884962858394 +3 more
- Also known as
- HP Designjet T770 610 mm large format printer Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Specifications
48 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | PCL 3 |
| Printing colours | Cyan, Magenta, Matte black, Photo black, Yellow |
| Print speed (normal quality) | 28 sec/page |
| Print head nozzles | 1056 |
| Print speed (colour image, best quality, glossy paper) | 2.8 m2/hr |
| Print speed (colour image, draft quality, coated paper) | 37 m2/hr |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Media thickness | 0.8 mm |
| Maximum roll length | 91 m |
| Maximum roll diameter | 13.5 cm |
| Print margin cut-sheet | 5 x 5 x 5 x 17 |
| Roll top margin | 5 mm |
| Maximum print length | 91 m |
| Custom media sizes | 210 x 279 - 610 x 1676 mm |
| Recommended media weight | 60 - 328 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 2048 MB |
| Built-in processor | Intel® Pentium® M |
| Processor frequency | 800 MHz |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A |
| Power consumption (standby) | 27 W |
| Power consumption (typical) | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating temperature (T-T) | 41 - 104 °F |
| Storage temperature (T-T) | -25 - 55 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7, Windows Vista Home Premium/Business/Ultimate;Windows XP Home/Professional, Mac OS X v10.4, v10.5, v1.06 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1262 x 698 x 1050 mm |
| Weight | 61 kg |
| Size (imperial) | 61 cm (24") |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 70 kg |
| Package dimensions (WxDxH) | 1440 x 770 x 600 mm |
| Package dimensions (W x D x H) | 1440.2 x 769.6 x 599.4 mm (56.7 x 30.3 x 23.6") |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.1% |
| Functions | |
| Maximum media length (imperial) | 66" |
| Acoustic pressure emissions | 46 dB |
| Line width minimum | 0.02 mm |
| Roll maximum input | 1 |
