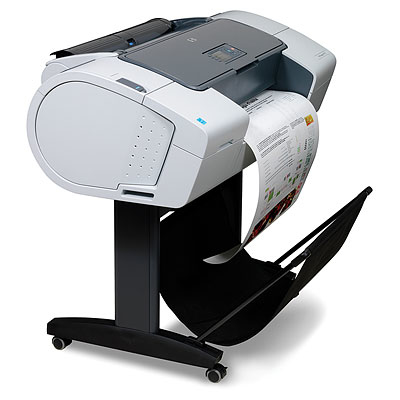

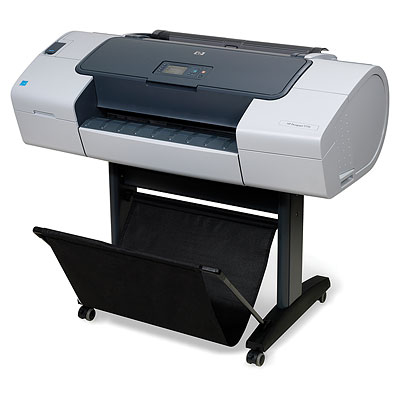

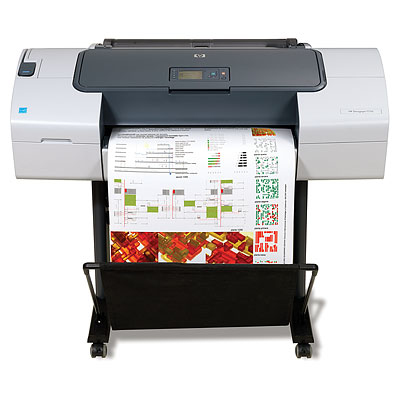

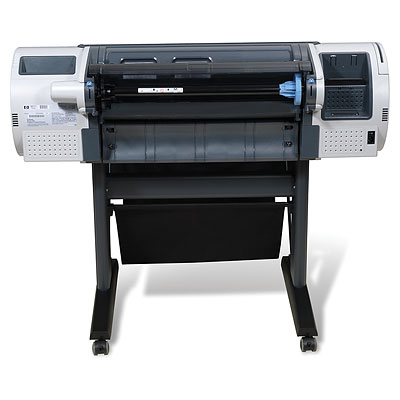

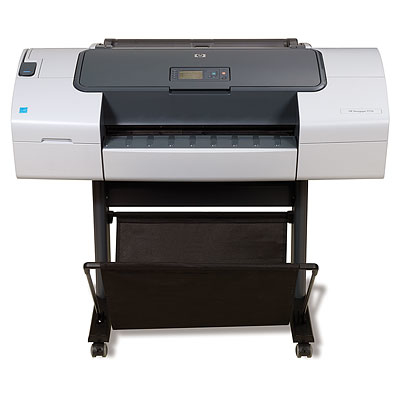

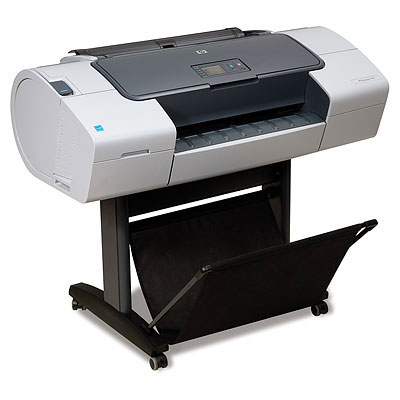

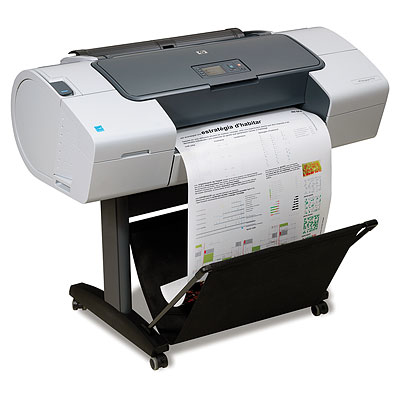

Designjet T770 24-in Printer with Hard Disk
Model Designjet T770 24-in Printer with Hard DiskPart no. CQ306AEAN 885631030301
53 specifications
- Storage160 GB
- Weight61 kg
- ColourYes
- Maximum print sizeA1 (594 x 841 mm)
- Power supply typeAC
- Operating temperature (T-T)5 - 40 °C
Overview
- Storage
- 160 GB
- Weight
- 61 kg
- Colour
- Yes
- Maximum print size
- A1 (594 x 841 mm)
- Power supply type
- AC
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet T770 24-in Printer with Hard Disk
- Part number
- CQ306A
- EAN / UPC
- 885631030301, 884962545171, 884962858325, 884962858332 +4 more
- Also known as
- HP Designjet T770 24-in Printer with Hard Disk
Specifications
53 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Print cartridge volume (metric) | 69ml/130ml |
| Print speed (normal quality) | 445 ft/h |
| Print head nozzles | 1056 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Bond paper, Coated paper, Photo paper, Roll |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Cut sheets | Yes |
| Maximum media width | 24'' |
| Roll paper | Yes |
| Standard media sizes | 8.26"- 24" 11"- 66" 11"- 24" |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10/100BASE-T(X) |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Internal storage capacity | 160 GB |
| Storage media | HDD |
| Built-in processor | Intel® Pentium® M |
| Processor frequency | 800 MHz |
| Certification | WEEE RoHS REACH |
Power
| Specification | Value |
|---|---|
| Power supply type | AC |
| Power requirements | 100-240V, 50/60Hz |
| Power consumption (standby) | 27 W |
| Power consumption (typical) | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 41 - 104 °F |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Windows 7 Home Premium Windows 7 Professional Windows 7 Ultimate Windows Vista Home Premium Windows Vista Business Windows Vista Ultimate Windows XP Home (32/64-bit) Windows XP Professional (32/64-bit) Windows Server 2003 (32/64-bit) Windows Server 2008 (32/64-bit) Novell NetWare 5.x, 6.x Mac OS X v |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1440.1 x 769.6 x 599.4 mm |
| Weight | 61 kg |
| Size (imperial) | 61 cm (24") |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 70 kg |
| Package dimensions (WxDxH) | 1440 x 770 x 600 mm |
| Package dimensions (W x D x H) | 1440.2 x 769.6 x 599.4 mm (56.7 x 30.3 x 23.6") |
Other features
| Specification | Value |
|---|---|
| Minimum system requirements | Intel Pentium, AMD K6/Athlon/Duron 1GHz 512MB RAM 2GB HDD |
| Compliance industry standards | IEEE 802.3, IEEE 802.3u |
| Functions | |
| Maximum internal memory | 8 GB |
| Maximum media length (imperial) | 66" |
| Acoustic pressure emissions | 46 dB |
| Ink drop | 6pl - C, M, PK, G; 9pl - Y, MK |
| Roll maximum input | 1 |
