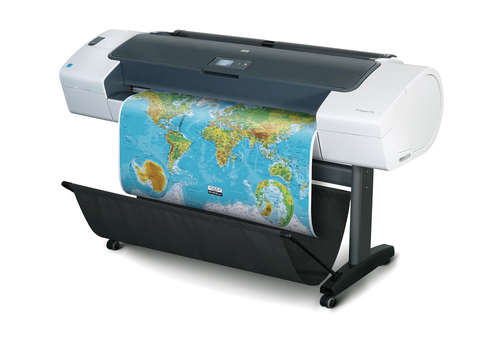

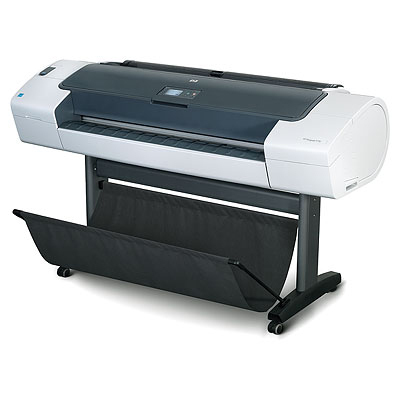

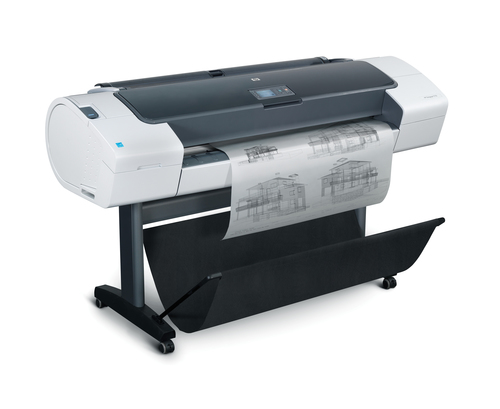

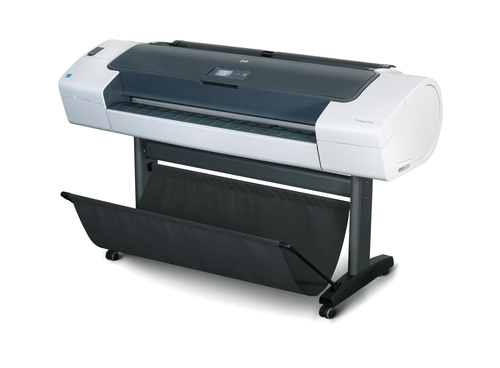

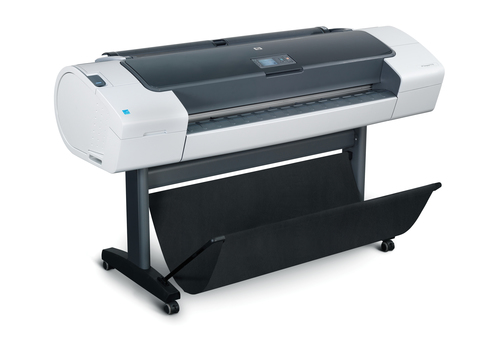

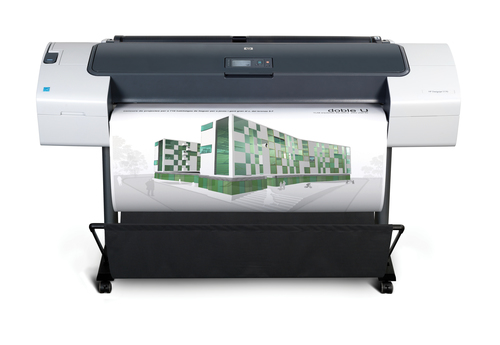

Designjet T770
Model Designjet T770Part no. CH539AEAN 884962725948
78 specifications
- Memory2048 MB
- Weight81.6 kg
- ColourYes
- Maximum print sizeA0 (841 x 1189 mm)
- Power consumption (typical)120 W
- Operating temperature (T-T)5 - 40 °C
Overview
- Memory
- 2048 MB
- Weight
- 81.6 kg
- Colour
- Yes
- Maximum print size
- A0 (841 x 1189 mm)
- Power consumption (typical)
- 120 W
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet T770
- Part number
- CH539A
- EAN / UPC
- 884962725948, 884420921530, 884962303276, 884962303283 +2 more
- Also known as
- HP Designjet T770 large format printer Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
78 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, HP-RTL |
| Printing colours | Cyan, Magenta, Matte black, Photo black, Yellow |
| Print cartridge volume (metric) | HP 72 |
| Print head | 6 |
| Print speed (normal quality, A1) | 103 pph |
| Print speed (colour image, best quality, glossy paper) | 2.8 m²/hr |
| Print speed (colour image, draft quality, coated paper) | 37 m²/hr 41 m²/hr |
| Print speed (colour image, normal quality, coated paper) | 9 m²/hr |
| Print speed (colour image, normal quality, glossy paper) | 6 m²/hr |
| Print time black and white line drawing (draft, metric A1 plain paper) | 80 page/hour |
| Print time colour line drawing (draft, A1) | 80 page/hour |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Media thickness | > 0.3 |
| Maximum roll length | 91 m |
| Maximum roll diameter | 13.5 cm |
| Print margin cut-sheet | 5 x 5 x 5 x 17 |
| Print margin roll | 5 mm |
| Maximum media width | 1118 mm |
| Roll top margin | 5 mm |
| Maximum print length | 91 m |
| Maximum length of sheet media | 1676 mm |
| Standard media sizes | A4; A3; A2; A1; A0 |
| Custom media sizes | 210 x 279 - 1118 x 1676 mm |
| Media sizes supported (imperial) | A, B, C, D, E |
| Media thickness (by paper path) | 0.8 mm |
| Non-printable area roll media (imperial) | 0.2 x 0.2 x 0.2 x 0.2" |
| Recommended media weight | 60 - 328 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Internal memory | 2048 MB |
| Built-in processor | Intel® Pentium® M |
| Processor frequency | 800 MHz |
| Certification | Energy Star; WEEE; EU RoHS; REACH; EuP; FEMP IPv6 Phase 1; USB 2.0 |
| Storage drive type | No |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A |
| Power consumption (typical) | 120 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 59 - 95 °F |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
| Recommended operating temperature range (T-T) | 15 - 35 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7 Home Premium/Professional/Ultimate; Windows Vista Home Premium/Business/Ultimate; Microsoft Windows XP (32-bit, 64-bit) Home/Professional, Server 2003 (32-bit, 64-bit), Server 2008 (32-bit, 64-bit; Novell NetWare 5.x, 6.; Mac OS X v10.4, v10.5, v10.6, Citrix XenApp, Citrix XenServer |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1770 x 702 x 1050 mm |
| Weight | 81.6 kg |
| Size (imperial) | 177 cm (69.7") |
| Weight (imperial) | 180 lb |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 111 kg |
| Package dimensions (WxDxH) | 1930 x 766 x 778 mm |
| Package dimensions (W x D x H) | 1929.9 x 766.1 x 779.8 mm (76 x 30.2 x 30.7") |
| Package weight (imperial) | 110.7 kg (244 lbs) |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.1% |
| Coated paper | Yes |
| Functions | |
| Glossy paper | Yes |
| Maximum media length (imperial) | 66" |
| Printer management | HP Web Jetadmin |
| Safety | EU (LVD & EN 60950-1), GOST |
| Acoustic power emissions | 6.2 B(A) |
| Acoustic pressure emissions | 46 dB |
| Print quality (colour, best quality) | 2400 DPI |
| Acoustic power emissions (standby) | 44 dB |
| Acoustic pressure emissions (standby) | 26 dB(A) |
| Ink drop | 6 pl (C, M, PK, G), 9 pl (Y, MK) |
| Line width minimum | 0.0024" (ISO/IEC 13660:2001(E)) |
| Media sizes standard (imperial rolls) | 11 - 44" |
| Non-printable area (imperial cut-sheet) | 0.2 x 0.67 x 0.2 x 0.2" |
| Print quality (black, best quality) | 2400 x 1200 DPI |
| Roll maximum input | 1 |
