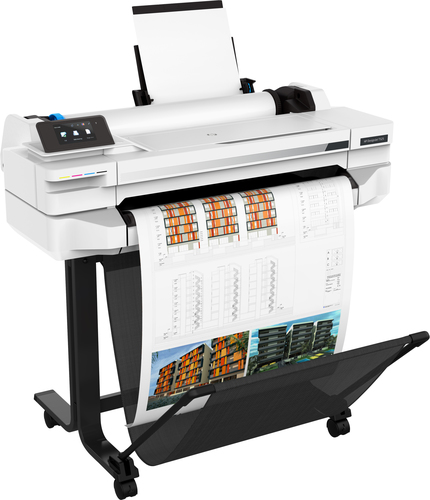

DesignJet T525 24-in Printer
Model DesignJet T525 24-in PrinterPart no. 5ZY59AEAN 194441079258
51 specifications
- Memory1024 MB
- Weight26 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- ISO A-series sizes (A0...A9)A1, A2, A3, A4
Overview
- Memory
- 1024 MB
- Weight
- 26 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- ISO A-series sizes (A0...A9)
- A1, A2, A3, A4
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet T525 24-in Printer
- Part number
- 5ZY59A
- EAN / UPC
- 194441079258, 193424946624, 193808354625, 193808354632 +3 more
- Also known as
- HP Designjet T525 24-in Printer large format printer Wi-Fi Thermal inkjet Colour 2400 x 1200 DPI Ethernet LAN
Specifications
51 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, HP-RTL, JPEG, CALS G4 |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print speed (normal quality, A1) | 70 pph |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Photo paper, Plain paper, Recycled paper, Satin paper, Semi-glossy paper |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Media thickness | 0.3 mm |
| Maximum roll diameter | 10 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Direct printing | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Wi-Fi Direct | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Built-in display | Yes |
| Internal memory | 1024 MB |
| Sound power level (standby) | 16 dB |
| RAM capacity | 1 GB |
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
Brand-specific features
| Specification | Value |
|---|---|
| HP Dynamic security | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (sleep) | 4.5 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 35 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 987 mm |
| Depth | 530 mm |
| Height | 932 mm |
| Weight | 26 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1090 mm |
| Package depth | 570 mm |
| Package height | 480 mm |
| Package weight | 48.5 kg |
| Cartridge(s) included | Yes |
| Quick start guide | Yes |
| Bundled software | HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app |
