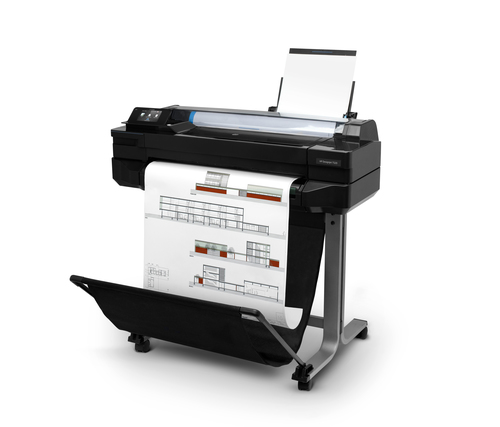

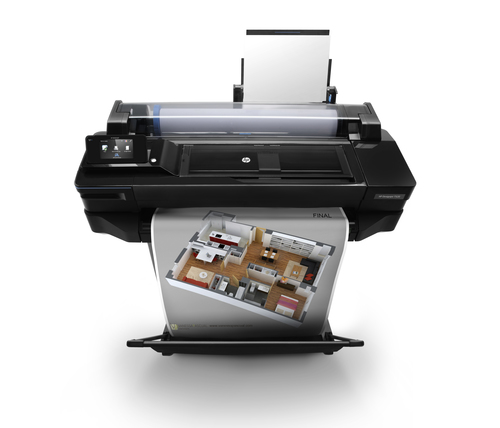

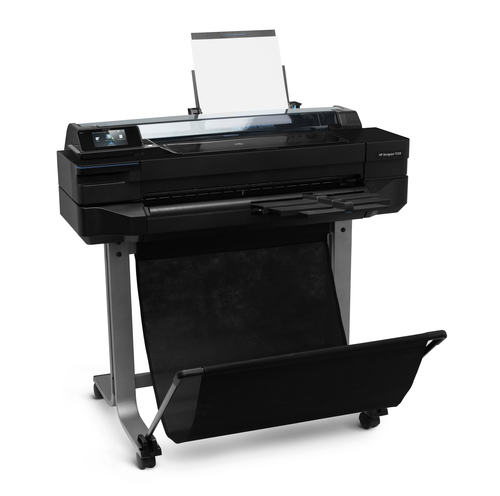

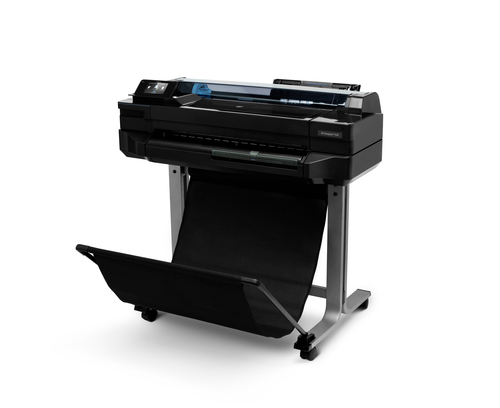

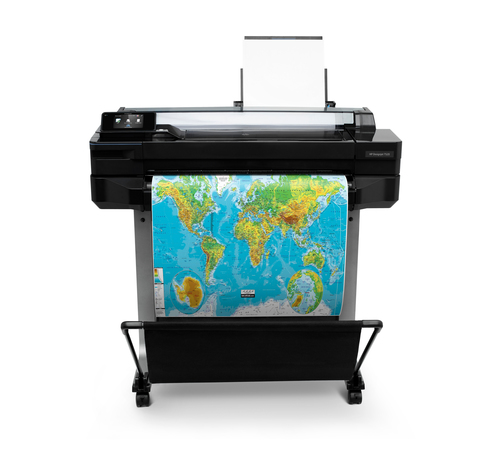

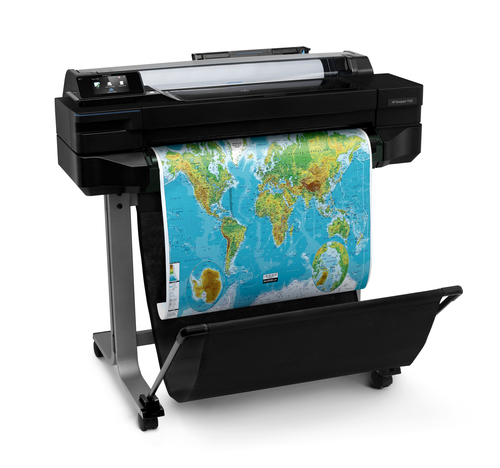

HP DesignJet T520 24-in
Model DesignJet T520 24-inPart no. CQ890B#BOXEAN 190781401841
40 specifications
- Memory1024 MB
- Weight34 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- Maximum print sizeA1 (594 x 841 mm)
Overview
- Memory
- 1024 MB
- Weight
- 34 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- Maximum print size
- A1 (594 x 841 mm)
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet T520 24-in
- Part numbers
- CQ890B#BOX, CQ890B
- EAN / UPC
- 190781401841, 190780968468, 190781401803, 190781401810 +2 more
- Also known as
- HP Designjet T520 610mm Printer
Specifications
40 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, HP-RTL, PCL 3 |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head | 1 |
| Print speed (normal quality, A1) | 35 pph |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Cut sheets | Yes |
| Media thickness | 0.3 mm |
| Print margin roll | 5 mm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |

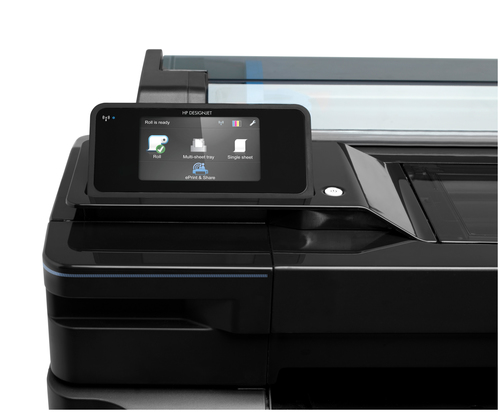

| Built-in display | Yes |
| Display | LCD |
| Control type | Touch |
| Internal memory | 1024 MB |
| Maximum internal memory | 1024 MB |
| Sound power level (standby) | 16 dB |
| Sound pressure level (printing) | 48 dB |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 35 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 987 mm |
| Depth | 530 mm |
| Height | 932 mm |
| Weight | 34 kg |
Other features
| Specification | Value |
|---|---|
| Touchscreen | Yes |
What people say
Reviews & ratings
HP DesignJet T520 24-in
No reviews yet
Be the first to tell others how HP DesignJet T520 24-in works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare HP DesignJet T520 24-in
All large format printer comparisons- HP DesignJet T520 24-in vsHP Latex 115 PrinterCompare specs
- HP DesignJet T520 24-in vsHP Latex 115 Print and Cut SolutionCompare specs
- HP DesignJet T520 24-in vsHP DesignJet T120 24-inCompare specs
- HP DesignJet T520 24-in vsHP Latex 315 Print and Cut SolutionCompare specs
- HP DesignJet T520 24-in vsEpson SureColor T5200 large format printer ColourCompare specs
- HP DesignJet T520 24-in vsEpson SureColor T7200 large format printer ColourCompare specs

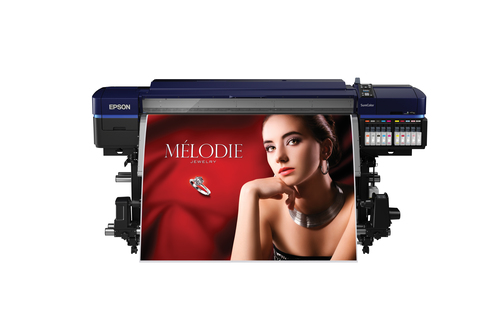

- HP DesignJet T520 24-in vsEpson SureColor SC-S60600Compare specs
