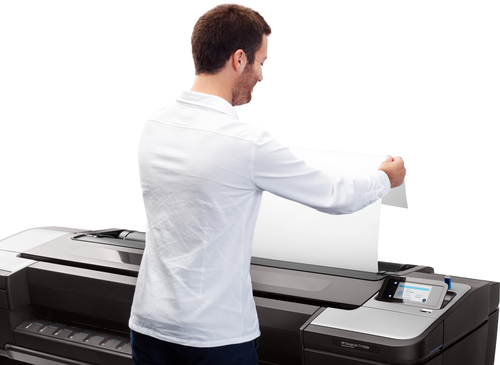

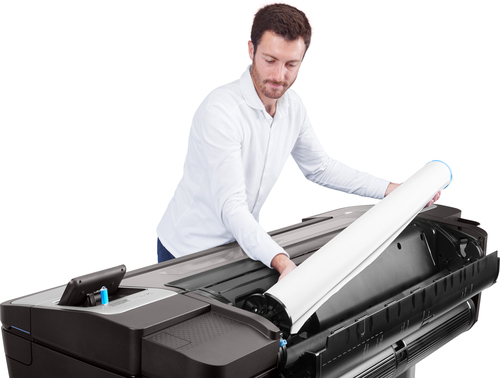

HP DesignJet T1700 44-in Printer
Model DesignJet T1700 44-in PrinterPart no. W6B55BEAN 198828360687
63 specifications
- Weight88.9 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- Maximum print size1118 x 1676
- Storage mediaHDD
Overview
- Weight
- 88.9 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- Maximum print size
- 1118 x 1676
- Storage media
- HDD
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet T1700 44-in Printer
- Part numbers
- W6B55B, W6B55A, W6B55A#B19
- EAN / UPC
- 198828360687, 190781888208, 191628121939, 191628121946 +7 more
- Also known as
- HP Designjet T1700 44-in Printer
Specifications
63 specifications in 16 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, TIFF, JPEG, CALS G4, URF |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow |
| Print head | 3 |
| Print speed (normal quality, A1) | 116 pph |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
| Accuracy | 0.1% |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 1118 x 1676 |
| Paper tray media types | Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Cut sheets | Yes |
| Media thickness | 0.8 mm |
| Print margin roll | 3 mm |
| Roll top margin | 3 mm |
| Roll paper | Yes |
| Custom media sizes | 210 x 279 to 1118 x 1676 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| USB connector | USB Type-A |
| Direct printing | Yes |
| Wi-Fi Direct | Yes |
| RJ-45 ports quantity | 1 |
| Mobile printing technologies | HP ePrint |
Performance
| Specification | Value |
|---|---|
| Storage media | HDD |
| Country of origin | China |
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP Dynamic security | Yes |
| HP GTIN (EAN/UPC) | 191628121922 |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.1 W |
| Power consumption (sleep) | 0.3 W |
| Power consumption (standby) | 24 W |
| Power consumption (typical) | 100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 661 |
| Carbon emissions, manufacturing (kg of CO2e) | 538 |
| Carbon emissions, logistics (kg of CO2e) | 39 |
| Carbon emissions, end-of-life (kg of CO2e) | 29 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 55 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1802 mm |
| Depth | 695 mm |
| Height | 998 mm |
| Weight | 88.9 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1955 mm |
| Package depth | 770 mm |
| Package height | 710 mm |
| Package weight | 126 kg |
| Bundled software | HP Click, HP Utility for Mac and Windows, HP WebJet Admin, HP Embedded Web Server, HP JetAdvantage Security Manager, HP Partner Link, HP MPS |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC), South Africa (SABS) |
| UNSPSC-code | 43212107 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
Technical details
| Specification | Value |
|---|---|
| Box contents | HP DesignJet T1700 Printer, printheads, ink cartridges, printer stand, spindle, setup poster, introductory information, warranty, power cords, label kits |
Energy efficiency
ENERGY STAR certified
Imaging equipment · model X9D24A · certified Jul 9, 2026 · United States, Japan, Canada, Taiwan, Switzerland
| Measurement | Value |
|---|---|
| Sleep-mode power | 0 W |
| Standby power | 0 W |
ENERGY STAR certified
Imaging equipment · model BCLAA-1702 · certified Oct 24, 2019 · United States, Switzerland, Taiwan, Japan, Canada
| Measurement | Value |
|---|---|
| Sleep-mode power | 0.27 W |
| Standby power | 0.05 W |
