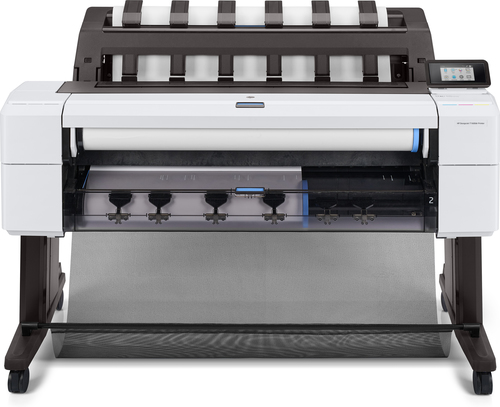

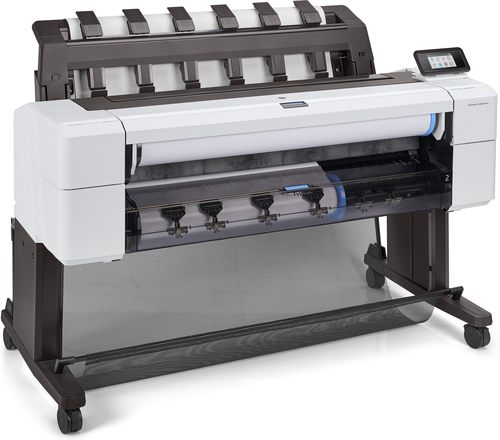

DesignJet T1600dr 36-in Printer
Model DesignJet T1600dr 36-in PrinterPart no. 3EK12A#B19EAN 193808345906
62 specifications
- Memory128000 MB
- Weight85 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- Maximum print sizeA0 (841 x 1189 mm)
Overview
- Memory
- 128000 MB
- Weight
- 85 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- Maximum print size
- A0 (841 x 1189 mm)
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet T1600dr 36-in Printer
- Part numbers
- 3EK12A#B19, 3EK12A
- EAN / UPC
- 193808345906, 192018599581, 193015541986, 193808345913 +4 more
- Also known as
- HP Designjet T1600dr 36-in Printer Plus Edition
Specifications
62 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | HP-GL/2, TIFF, JPEG, HP-RTL, CALS G4 |
| Printing colours | Cyan, Photo black, Matte black, Magenta, Yellow, Grey |
| Print head | 1 universal printhead |
| Print speed (normal quality, A1) | 180 pph |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Coated paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Media thickness | 0.5 mm |
| Custom media sizes | 210 x 279 to 914 x 1219 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | No |
| Ethernet interface type | Gigabit Ethernet |
| Direct printing | Yes |
| Wi-Fi Direct | Yes |
| Supported network protocols | TCP/IP, BootP/DHCP (IPv4 only), DHCPv6, TFTP (IPv4 only), SNMP (v1, v2c, v3) |
| Mobile printing technologies | HP ePrint |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Built-in display | Yes |
| Internal memory | 128000 MB |
| Storage media | HDD |
| Country of origin | China |
| Certification | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP Dynamic security | Yes |
| HP GTIN (EAN/UPC) | 193808345906 |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 10 W |
| Power consumption (typical) | 100 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 0 - 90% |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 933 |
| Carbon emissions, manufacturing (kg of CO2e) | 745 |
| Carbon emissions, logistics (kg of CO2e) | 51 |
| Carbon emissions, end-of-life (kg of CO2e) | 126 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 11 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1390 mm |
| Depth | 760 mm |
| Height | 1080 mm |
| Weight | 85 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1477 mm |
| Package depth | 767 mm |
| Package height | 800 mm |
| Package weight | 117 kg |
| Manual | Yes |
| Bundled software | HP Click, HP mobile, ePrint and iOS/Android support plus the HP Smart app for mobile, HP Web Jetadmin, HP JetAdvantage Security Manager |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class A requirements, including: USA (FCC rules), Canada (ICES), EU (EMC Directive), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI), Korea (KCC) |
| UNSPSC-code | 43212107 |
Technical details
| Specification | Value |
|---|---|
| Box contents | HP DesignJet T1600 Printer, printer stand and media bin, spindles (x2), printheads, introductory ink cartridges, user guide, power cords |
