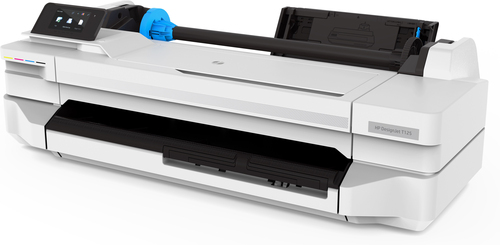

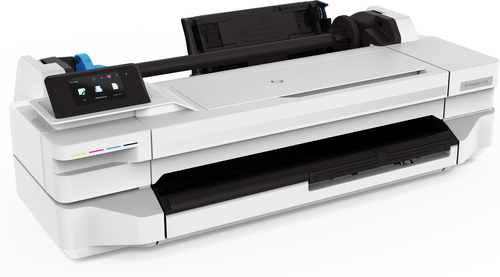

DesignJet T125 24-in Printer
Model DesignJet T125 24-in PrinterPart no. 5ZY57A#B19EAN 193808354519
51 specifications
- Memory256 MB
- Weight25 kg
- ColourBlack, White
- Print technologyThermal inkjet
- CopyingNo
- ISO A-series sizes (A0...A9)A1, A2, A3, A4
Overview
- Memory
- 256 MB
- Weight
- 25 kg
- Colour
- Black, White
- Print technology
- Thermal inkjet
- Copying
- No
- ISO A-series sizes (A0...A9)
- A1, A2, A3, A4
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet T125 24-in Printer
- Part numbers
- 5ZY57A#B19, 5ZY57A
- EAN / UPC
- 193808354519, 193424946600, 193808354526, 193808354533 +4 more
- Also known as
- HP Designjet T125 24-in Printer
Specifications
51 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Maximum resolution | 1200 x 1200 DPI |
| Print resolution colour | 1200 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | JPEG |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print speed (normal quality, A1) | 60 pph |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Heavy paper, Matte paper, Photo paper, Plain paper, Recycled paper, Satin paper, Semi-glossy paper |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Cut sheets | Yes |
| Media thickness | 0.3 mm |
| Maximum roll diameter | 10 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Direct printing | Yes |
| Ethernet LAN data rates | 100 Mbit/s |
| Wi-Fi Direct | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Internal memory | 256 MB |
| Sound power level (standby) | 16 dB |
| Sound pressure level (printing) | 45 dB |
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/R&TTE Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class A product: Korea (KCC) |
Brand-specific features
| Specification | Value |
|---|---|
| HP Dynamic security | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (sleep) | 4.5 W |
| Power consumption (standby) | 0.3 W |
| Power consumption (typical) | 35 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 987 mm |
| Depth | 530 mm |
| Height | 285 mm |
| Weight | 25 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1130 mm |
| Package depth | 610 mm |
| Package height | 405 mm |
| Package weight | 28.5 kg |
| Cartridge(s) included | Yes |
| Quick start guide | Yes |
| Bundled software | HP Click, HP DesignJet Utility for Windows, HP Smart app, HP Poster Web app |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
