DesignJet Studio Steel 36-in Printer
Model DesignJet Studio Steel 36-in PrinterPart no. 5HB14C#B19EAN 194850665585
61 specifications
- Memory1024 MB
- Weight41.7 kg
- ColourYes
- Print technologyThermal inkjet
- CopyingNo
- Maximum print size914 x 1897 mm
Overview
- Memory
- 1024 MB
- Weight
- 41.7 kg
- Colour
- Yes
- Print technology
- Thermal inkjet
- Copying
- No
- Maximum print size
- 914 x 1897 mm
- Brand
- HP
- Category
- Large Format Printer
- Model
- DesignJet Studio Steel 36-in Printer
- Part numbers
- 5HB14C#B19, 5HB14C
- EAN / UPC
- 194850665585, 194850629150, 194850665653, 194850665660 +4 more
- Also known as
- HP Designjet Studio Steel 36-in Printer
Specifications
61 specifications in 15 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, JPEG, HP-RTL, CALS G4, URF |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head | 1 |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 914 x 1897 mm |
| Paper tray media types | Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Media thickness | 0.3 mm |
| Maximum roll width | 91.4 cm |
| Maximum roll diameter | 10 cm |
| Custom media sizes | Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 914 x 1897 mm |

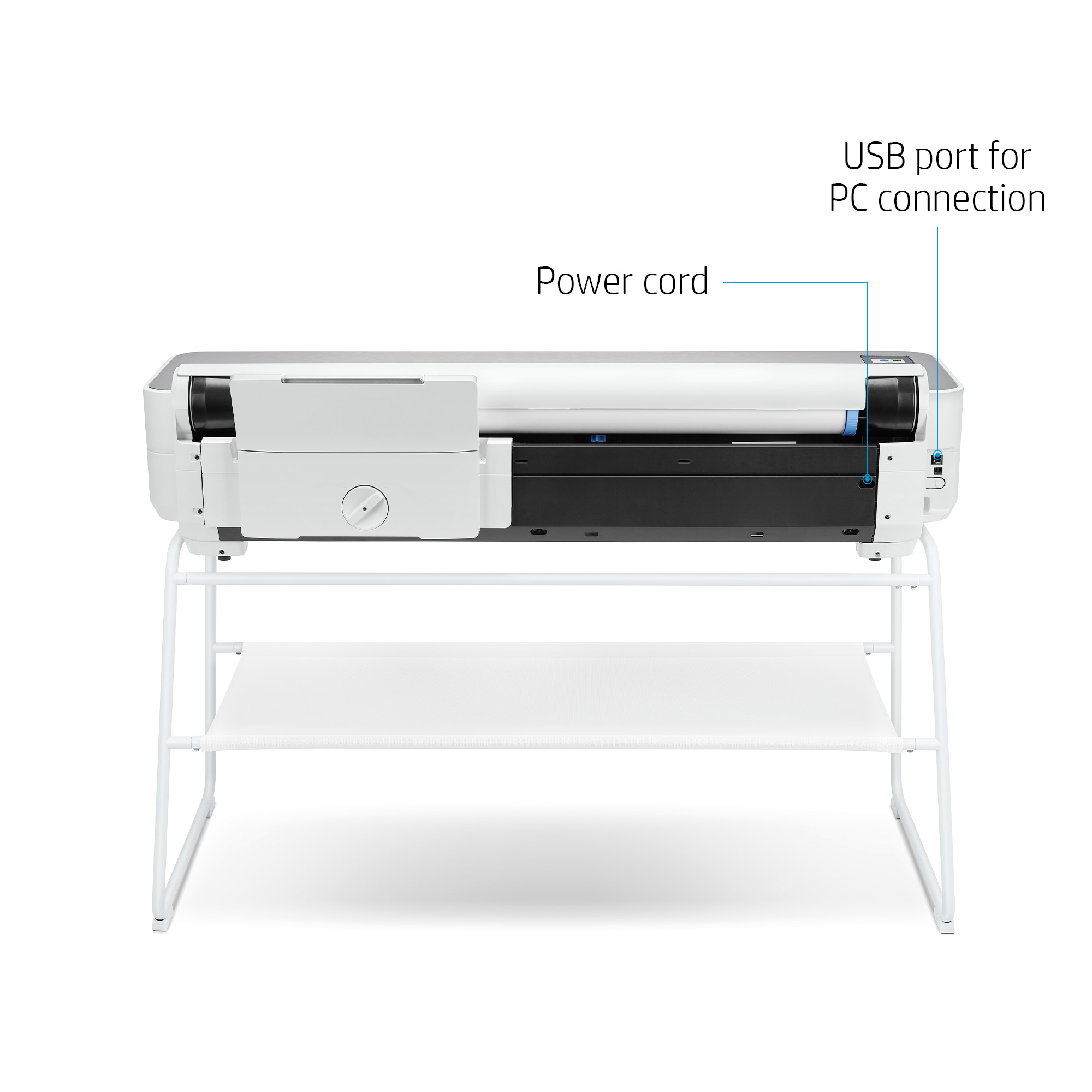

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Built-in display | No |
| Internal memory | 1024 MB |
| Country of origin | China |
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC) |
| HP segment | Business |
Brand-specific features
| Specification | Value |
|---|---|
| HP Dynamic security | Yes |
| HP GTIN (EAN/UPC) | 194850665585 |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.2 W |
| Power consumption (sleep) | 2.1 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (typical) | 35 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC) |
| Sustainable technologies and materials | Free, convenient HP ink cartridge and printhead recycling with HP Planet Partners; FSC-certified papers and a range of recyclable HP media with a take-back program; ENERGY STAR certified |
| Sustainability compliance | Yes |
Carbon footprint
| Specification | Value |
|---|---|
| Total carbon footprint (kg of CO2e) | 329 |
| Carbon emissions, manufacturing (kg of CO2e) | 263 |
| Carbon emissions, logistics (kg of CO2e) | 23 |
| Carbon emissions, end-of-life (kg of CO2e) | 20 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 23 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1317 mm |
| Depth | 555 mm |
| Height | 932 mm |
| Weight | 41.7 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1470 mm |
| Package depth | 575 mm |
| Package height | 646 mm |
| Package weight | 62 kg |

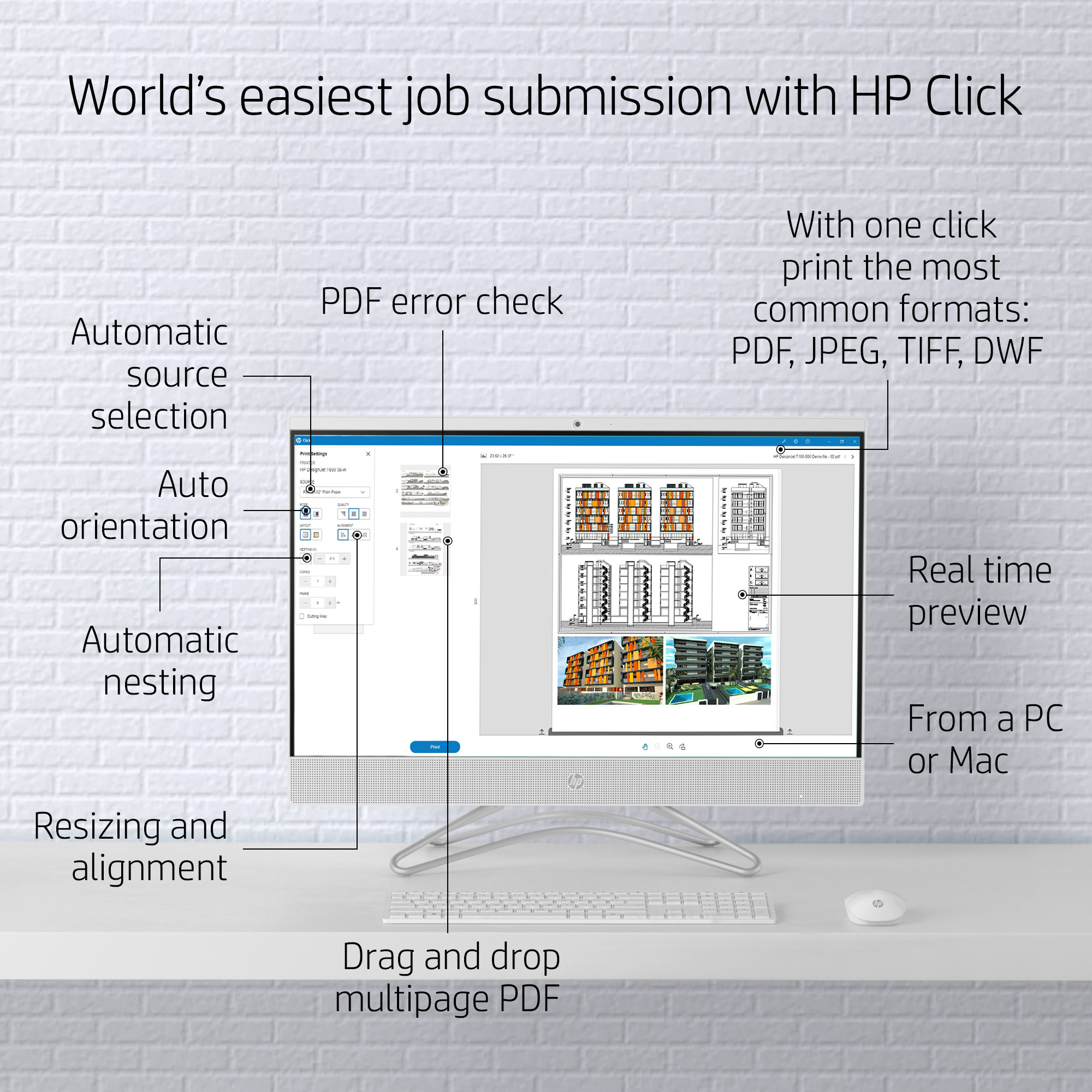

| Bundled software | HP Click App, HP Click Driver for Windows 11, HP Smart app, HP Print Preview for Windows, HP Easy Start, HP DesignJet Utility for Windows, HP Support Assistant |
Other features
| Specification | Value |
|---|---|
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC) |
| UNSPSC-code | 23153405 |
Technical details
| Specification | Value |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/gb-en/product/setup-user-guides/hp-designjet-studio-printer-series/model/33508819?sku=5HB14C ; https://kaas.hpcloud.hp.com/pdf-public/pdf_1584150_en-US-1.pdf |
| Box contents | HP DesignJet Studio Steel 36-in Printer, printer stand, automatic sheet feeder, roll cover, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord |
