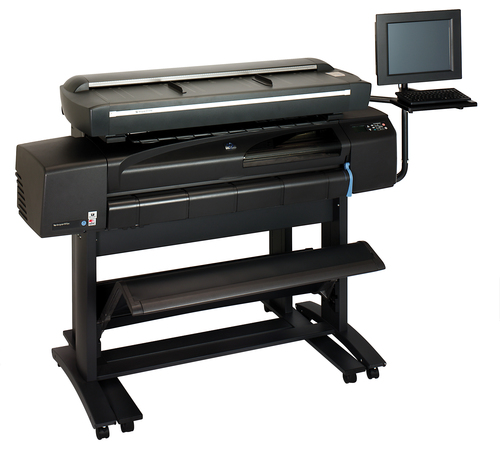

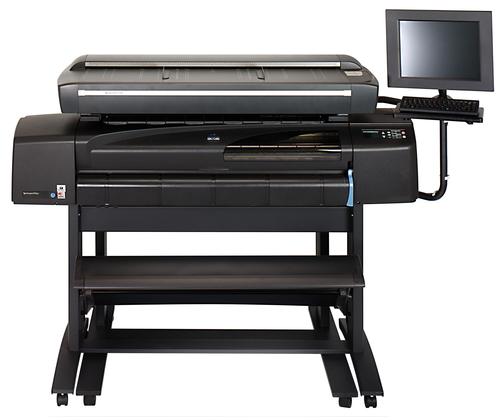

Designjet 815MFP
Model Designjet 815MFPPart no. Q1279AEAN 808736549394
67 specifications
- Memory256 MB
- Storage6 GB
- Weight180 kg
- ColourNo
- Copier resize1 - 10000%
- ScanningColour scanning
Overview
- Memory
- 256 MB
- Storage
- 6 GB
- Weight
- 180 kg
- Colour
- No
- Copier resize
- 1 - 10000%
- Scanning
- Colour scanning
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet 815MFP
- Part number
- Q1279A
- EAN / UPC
- 808736549394, 808736549202, 808736549219, 808736549226 +16 more
- Also known as
- HP Designjet 815MFP large format printer 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
67 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | No |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2 |
| Colour depth | 24 bit |
| Print head | 4 |
| Print head nozzles | 304 |
Copying
| Specification | Value |
|---|---|
| Copier resize | 1 - 10000% |
| Copy resolution (black text) | 300 x 300 DPI |
| Maximum number of copies | 99 copies |
| Copy resolution (black graphics) | 300 x 300 dpi |
| Copy resolution (colour text and graphics) | 300 DPI |
Scanning
| Specification | Value |
|---|---|
| Scanning | Colour scanning |
| Optical scanning resolution | 800 x 800 DPI |
| Enhanced scan resolution | 2400 x 2400 DPI |
| Scan file formats | PDF, TIFF |
| Scan time | 20 s |
| Sensor type | CCD |
| Scan quality (black, best) | 300 DPI |
| Scan quality (black, draft) | 200 DPI |
| Scan quality (black, normal) | 300 DPI |
| Scan quality (colour, best) | 300 DPI |
| Scan quality (colour, draft) | 150 DPI |
| Scan quality (colour, normal) | 200 DPI |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Media types supported | Printer: bright white inkjet paper (bond), translucent bond, natural tracing paper, vellum, clear film, matte film, coated paper, heavyweight coated paper, high-gloss photo paper, semi-gloss photo paper, paper-based semi-gloss, satin poster paper, studio canvas, banners with Tyvek, colorfast adhesiv |
| Media thickness | 15 mm |
| Maximum roll length | 45 m |
| Maximum media width | 924 mm |
| Maximum print length | 15.2 m |
| Maximum length of sheet media | 1897 mm |
| Standard media sizes | ISO AO, ISO A1, ISO A2, ISO A3, ISO A4, JIS B4, JIS B3, JIS B2, JIS B1 |
| Custom media sizes | 210 - 1066 mm |
| Recommended media weight | 210 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Parallel ports quantity | 1 |
| RJ-45 ports quantity | 1 |
| I/O ports | 1 x 36 pin Centronics (IEEE 1284B) |
Performance
| Specification | Value |
|---|---|
| Internal memory | 256 MB |
| Internal storage capacity | 6 GB |
| Storage media | HDD |
| Built-in processor | Intel Pentium 3 |
| Processor frequency | 850 MHz |
| Memory type | 133-MHz ECC SDRAM DIMM |
Power
| Specification | Value |
|---|---|
| Power requirements | 100 - 240 V (± 10%), 50/60 Hz, max. 8 A |
| Battery type | Lithium-ion |
| Power consumption (typical) | 330 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 18 - 32 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 55 °C |
| Recommended operating temperature range (T-T) | 18 - 32 °C |
| Non-operating relative humidity (non-condensing) | 20 - 80% |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows 95, 98, Me, NT 4.0, 2000, XP Mac OS 9.X, Mac OS X |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 2020 x 840 x 1500 mm |
| Weight | 180 kg |
| Maximum dimensions (W x D x H) | 2214 x 840 x 1500 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 255 kg |
| Bundled software | Printer: Microsoft Windows 95, 98, Me, NT 4.0, 2000, Macintosh OS 8.1 or later, AutoCAD 2000, R 13, R 14, for Windows; scanner: Microsoft Windows drivers for HP Designjet 500, 800, 1000 and 5000 series printers |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.2 % / +/- 0.15% |
| Greyscale levels | 256 |
| Maximum internal memory | 0.160 GB |
| Typefaces | 136 PostScript Roman |
| Minimum line width | 0.0423 mm |
| Acoustic pressure emissions | 52 dB |
| Print quality (colour, best quality) | 2400 DPI |
| Print quality (black, best quality) | 2400 x 1200 DPI |
