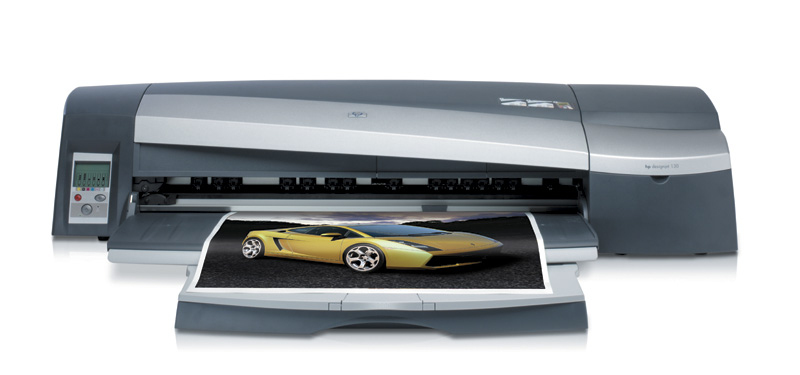

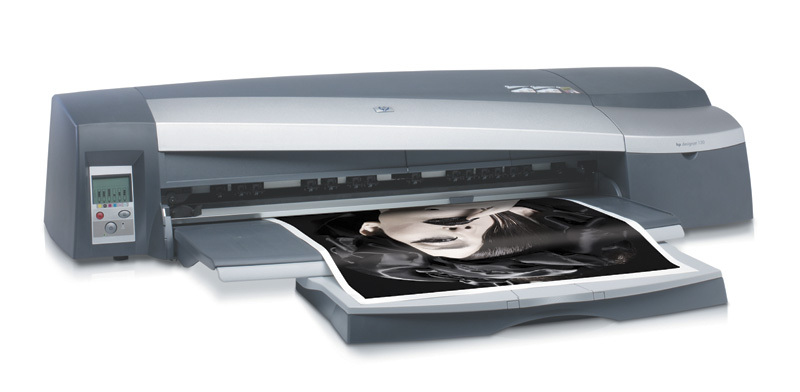

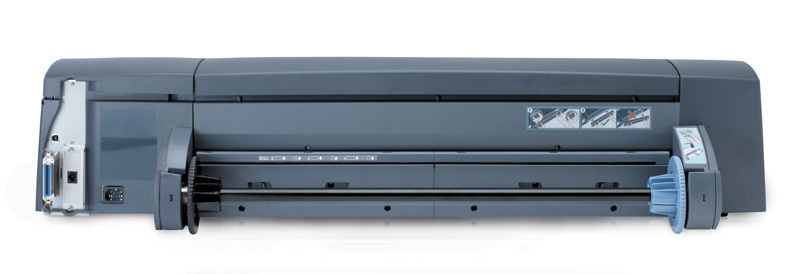

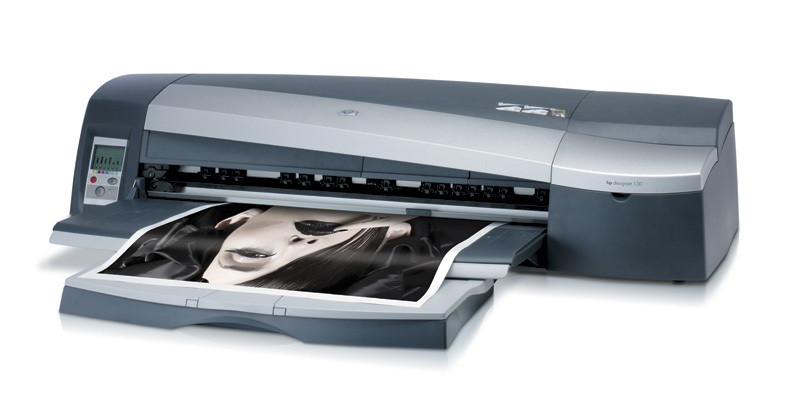

Designjet 130
Model Designjet 130Part no. C7791CEAN 829160139111
48 specifications
- Memory64 MB
- Weight22 kg
- ColourYes
- Total number of input trays1
- Maximum print sizeA1 (594 x 841 mm)
- USB portNo
Overview
- Memory
- 64 MB
- Weight
- 22 kg
- Colour
- Yes
- Total number of input trays
- 1
- Maximum print size
- A1 (594 x 841 mm)
- USB port
- No
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet 130
- Part number
- C7791C
- EAN / UPC
- 829160139111, 829160138923, 829160138930, 829160138947 +16 more
- Also known as
- HP Designjet 130 large format printer Colour 2400 x 1200 DPI A1 (594 x 841 mm)
Specifications
48 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 6 |
| Page description languages | PCL 3 |
| Printing colours | Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow |
| Print head nozzles | 304 |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 1 |
| Maximum input capacity | 100 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Plain paper, Transparencies |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| ISO B-series sizes (B0...B9) | B2, B3, B4 |
| Maximum roll length | 15.2 m |
| Maximum paper trays | 1 |
| Recommended media weight | 65 - 210 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port | No |
| USB 2.0 ports quantity | 0 |
| Parallel ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
| Processor frequency | 16 MHz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating temperature (T-T) | 41 - 104 °F |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1050 x 415 x 220 mm |
| Weight | 22 kg |
| Product dimensions when open (LxWxD) | 104.9 cm (41.3") |
| Size (imperial) | 61 cm (24") |
| Maximum dimensions (W x D x H) | 1050 x 900 x 220 mm |
| Pallet dimensions (W x D x H) | 1200 x 1100 x 2098 mm |
| Pallet dimensions (W x D x H) (imperial) | 1198.9 x 1099.8 x 2098 mm (47.2 x 43.3 x 82.6") |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 33.8 kg |
| Package dimensions (WxDxH) | 1192 x 545 x 493 mm |
| Package dimensions (W x D x H) | 1191.3 x 546.1 x 495.3 mm (46.9 x 21.5 x 19.5") |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.2% |
| Coated paper | Yes |
| Glossy paper | Yes |
| Maximum media length (imperial) | 64" |
| Photo paper | Yes |
| Print resolution (colour, normal quality) | 600 x 1200 DPI |
| Print speed (colour, normal quality, A4/US Letter) | 1.7 ppm |
| Proofing paper | Yes |
| Minimum line width | 0.04 mm |
| Acoustic pressure emissions | 50 dB |
| Print quality (colour, best quality) | 2400 DPI |
| JetDirect Compatible Products | Yes |
| Print quality (black, draft quality) | 600 DPI |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 220 kg |
| Products per pallet | 8 pc(s) |
