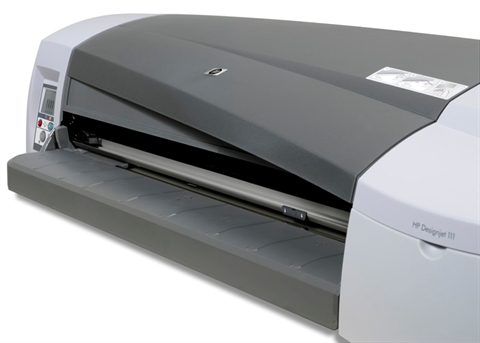

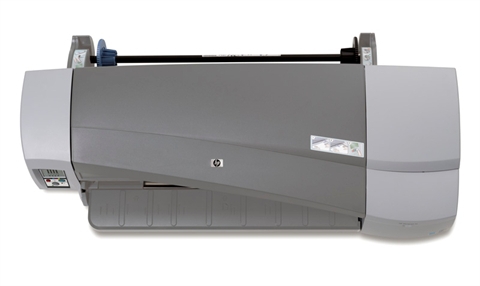

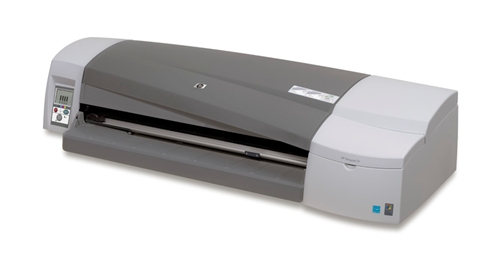

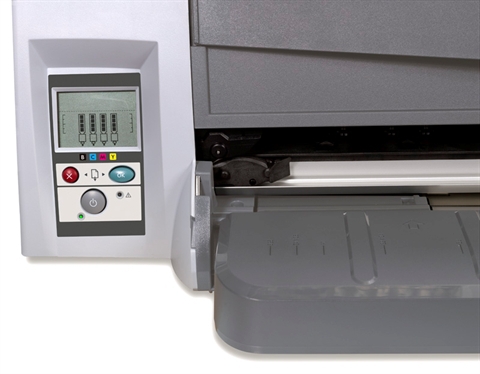

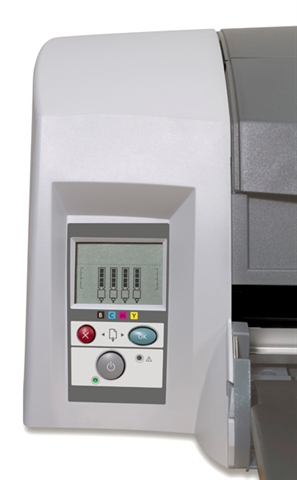

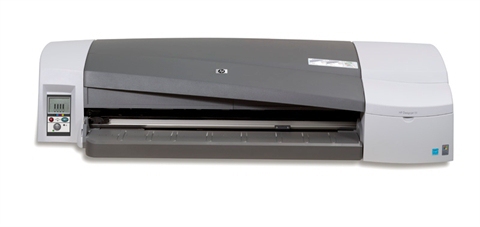

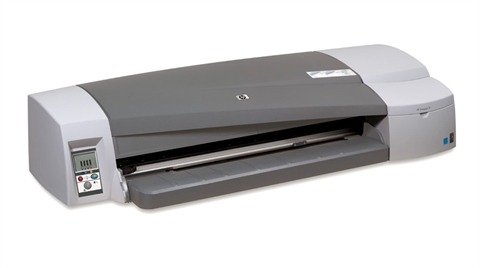

Designjet 111
Model Designjet 111Part no. CQ532AEAN 8849629279464
43 specifications
- Memory64 MB
- Weight23 kg
- ColourYes
- Maximum print size610 x 1067 mm
- Ethernet LANNo
- Power consumption (off)0.1 W
Overview
- Memory
- 64 MB
- Weight
- 23 kg
- Colour
- Yes
- Maximum print size
- 610 x 1067 mm
- Ethernet LAN
- No
- Power consumption (off)
- 0.1 W
- Brand
- HP
- Category
- Large Format Printer
- Model
- Designjet 111
- Part number
- CQ532A
- EAN / UPC
- 8849629279464, 884962545539, 884962927946, 884962927953 +4 more
- Also known as
- HP Designjet 111 large format printer Colour 610 x 1067 mm
Specifications
43 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Number of print cartridges | 4 |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head nozzles | 304 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 610 x 1067 mm |
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Photo paper |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| ISO B-series sizes (B0...B9) | B2, B3, B4 |
| Media thickness | 0.20 mm |

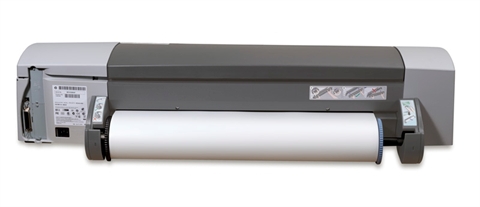

| Maximum roll length | 15.2 m |
| Maximum roll diameter | 10 cm |
| Maximum media width | 610 mm |

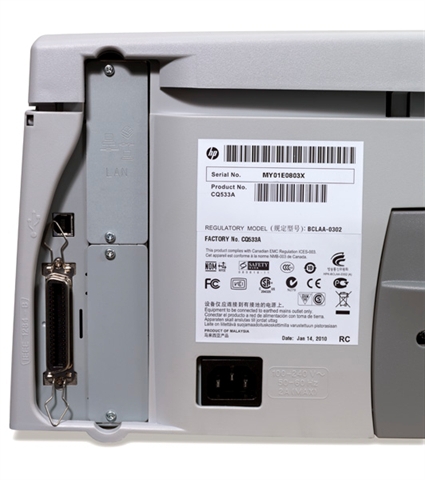

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| USB port | No |
| USB 2.0 ports quantity | 0 |
| Parallel ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal memory | 64 MB |
| Processor frequency | 16 MHz |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.1 W |
| Power consumption (standby) | 12 W |
| Power consumption (typical) | 45 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 59 - 86 °F |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 55 °C |
| Recommended operating temperature range (T-T) | 15 - 30 °C |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Windows 7 Ultimate/Professional/Home Premium; Windows Vista Ultimate/Business/Home Premium; Microsoft Windows XP (32-bit, 64-bit) Professional/Home, Server 2008 (32-bit, 64-bit), Server 2003 (32-bit, 64-bit); Novell NetWare 5.x, 6.x; Mac OS X v10.4, v10.5, v10.6; Citrix XenApp; Citrix XenServer |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1042 x 495 x 220 mm |
| Weight | 23 kg |
| Size (imperial) | 61 cm (24") |
Packaging data
| Specification | Value |
|---|---|
| Package dimensions (WxDxH) | 1192 x 545 x 453 mm |
| Package dimensions (W x D x H) | 1191.3 x 546.1 x 452.1 mm (46.9 x 21.5 x 17.8") |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0.2% |
| Functions | |
| Maximum media length (imperial) | 64" |
| Proofing paper | Yes |
| Acoustic pressure emissions | 50 dB |
| Print quality (colour, best quality) | 1200 DPI |
| Line width minimum | 0.04 mm |
| Print quality (black, best quality) | 1200 x 600 DPI |
| Roll maximum input | 1 |
