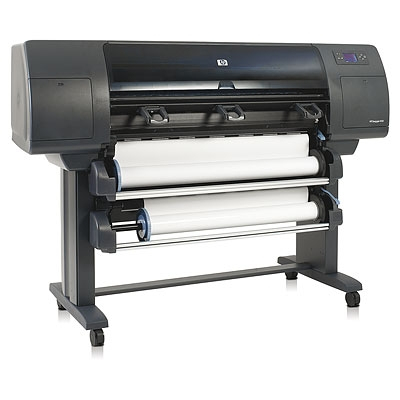

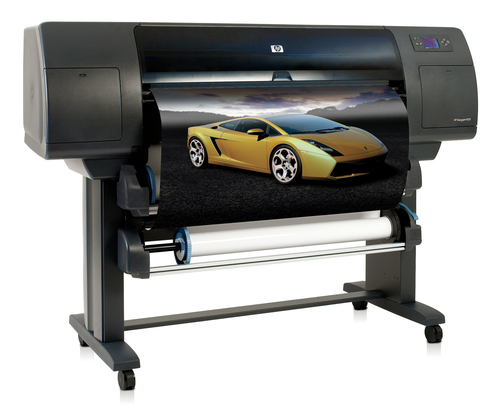

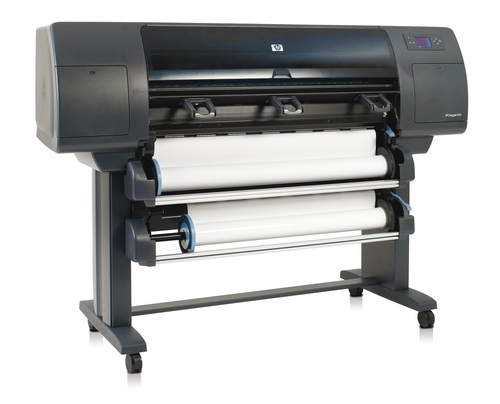

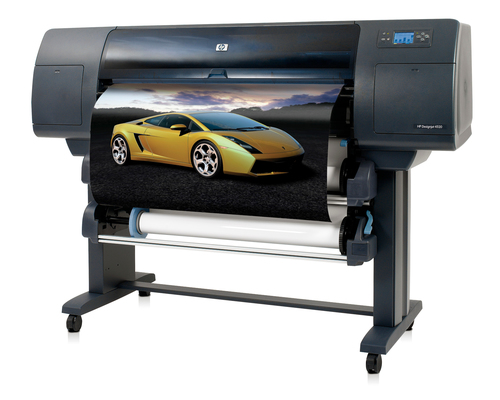

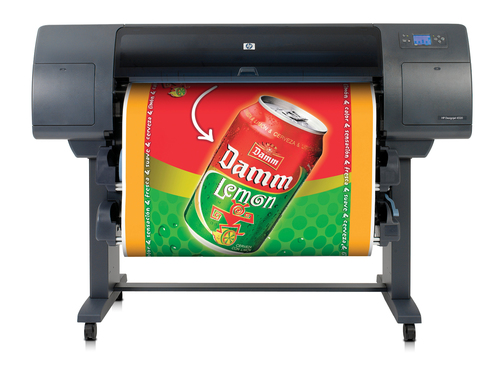

Designjet 4520ps large format printer Colour
2400 x 1200 DPI 610 x 1067 mm Ethernet LAN
Model 4520psPart no. CM768A#B19?BOX1EAN 8844209098428
64 specifications
- Storage160 GB
- Weight185 kg
- ColourYes
- Maximum print size610 x 1067 mm
- Power consumption (PowerSave)63 W
- Operating temperature (T-T)5 - 40 °C
Overview
- Storage
- 160 GB
- Weight
- 185 kg
- Colour
- Yes
- Maximum print size
- 610 x 1067 mm
- Power consumption (PowerSave)
- 63 W
- Operating temperature (T-T)
- 5 - 40 °C
- Brand
- HP
- Category
- Large Format Printer
- Model
- 4520ps
- Part numbers
- CM768A#B19?BOX1, CM768A
- EAN / UPC
- 8844209098428, 884420909842, 884420909859, 884420909866 +10 more
- Also known as
- HP Designjet 4520ps large format printer Colour 2400 x 1200 DPI 610 x 1067 mm Ethernet LAN
Specifications
64 specifications in 11 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | PDF 1.5, PostScript 3 |
| Printing colours | Black, Cyan, Yellow, Magenta |
| Print head nozzles | 524 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 610 x 1067 mm |
| Media thickness | 0.4 mm |
| Maximum roll length | 175 m |
| Maximum roll diameter | 18 cm |
| Maximum media width | 1067 mm |
| Roll paper | Yes |
| Recommended media weight | 50 - 328 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | No |
| Ethernet interface type | Gigabit Ethernet |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Firewire (IEEE 1394) ports | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Internal storage capacity | 160 GB |
| Storage media | HDD |
| Built-in processor | Intel® Celeron® |
| Processor frequency | 2000 MHz |
| Sound power level (standby) | 38 dB |
| Sound pressure level (printing) | 53 dB |
Power
| Specification | Value |
|---|---|
| Power requirements | 220 - 240 VAC (+/- 10%), 3 A; 50/60 Hz (+/- 3 Hz) |
| Power consumption (PowerSave) | 63 W |
| Power consumption (off) | 1 W |
| Power consumption (standby) | 105 W |
| Power consumption (typical) | 500 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating temperature (T-T) | 41 - 104 °F |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -20 - 55 °C |
System requirements
| Specification | Value |
|---|---|
| Recommended system requirements | Intel Pentium 4 (1 GHz), 1 GB RAM, 2 GB HDD |
| Compatible operating systems | - Windows Vista (32/64-bit), Windows Server 2008 (32/64-bit), XP Home & Professional (32/64-bit), Server 2003 (32/64-bit) - Mac OS X v10.4, v10.5 - Linux |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1930 x 800 x 1350 mm |
| Weight | 185 kg |
| Product dimensions when open (LxWxD) | 193 cm (76") |
| Size (imperial) | 106.7 cm (42") |
| Maximum dimensions (W x D x H) | 1930 x 800 x 1350 mm |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 227.3 kg |
| Package dimensions (WxDxH) | 2130 x 775 x 1320 mm |
| Drivers included | Yes |
| Bundled software | HP Designjet |
Other features
| Specification | Value |
|---|---|
| Minimum system requirements for Macintosh | PowerPC G3 / Intel Core, 512 MB RAM, 1 GB HDD |
| Line accuracy | +/- 0.1% |
| Minimum system requirements | Intel Pentium 4 (1 GHz), 512 MB RAM, 2 GB HDD |
| Coated paper | Yes |
| Embedded web server | Yes |
| Glossy paper | Yes |
| Maximum internal memory | 1.12 GB |
| Opaque film | Yes |
| Photo paper | Yes |
| Minimum line width | 0.07 mm |
| Print quality (colour, best quality) | 2400 DPI |
| Ink drop | 5 pl (C, M, Y), 15 pl (K) |
| JetDirect Compatible Products | Yes |
| Print quality (black, draft quality) | 1200 DPI |
| Print quality (black, normal quality) | 1200 DPI |
| Roll maximum input | 2 |
