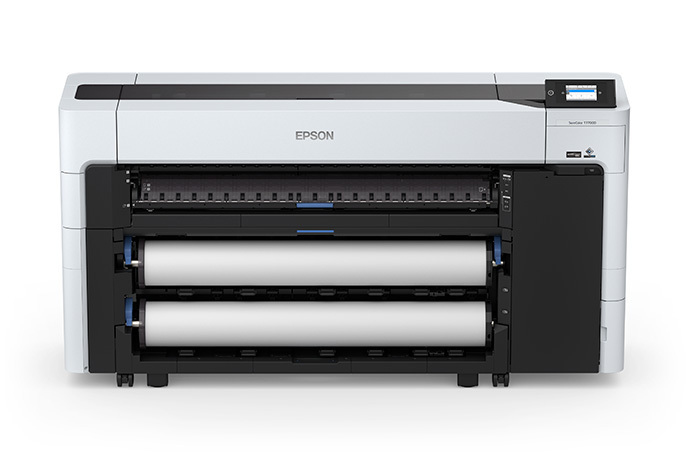

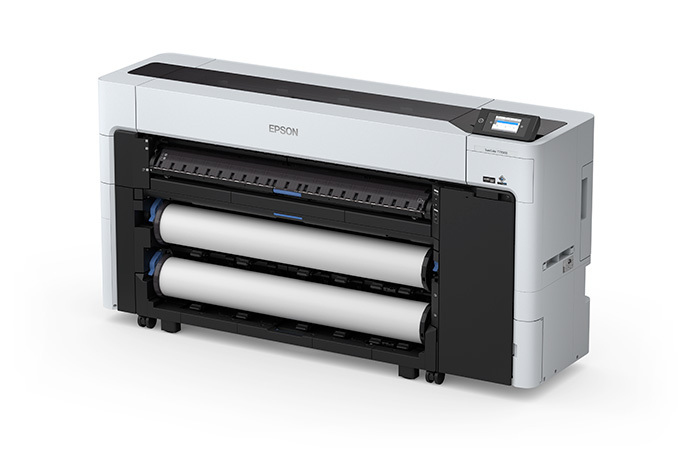

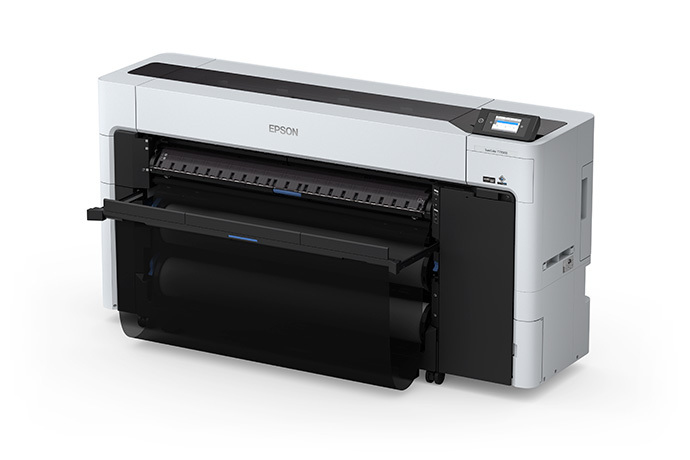

SureColor T7770DR large format printer Wi-Fi Inkjet Colour
2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Model T7770DRPart no. SCT7770DREAN 010343958333
35 specifications
- Display10.9 cm (4.3")
- Memory4 MB
- ColourYes
- Print technologyInkjet
- CopyingColour copying
- Maximum print sizeA1 (594 x 841 mm)
Overview
- Display
- 10.9 cm (4.3")
- Memory
- 4 MB
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- Colour copying
- Maximum print size
- A1 (594 x 841 mm)
- Brand
- Epson
- Category
- Large Format Printer
- Model
- T7770DR
- Part number
- SCT7770DR
- EAN / UPC
- 010343958333, 010343965171
- Also known as
- Epson SureColor T7770DR large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Specifications
35 specifications in 9 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | ESC P, HP-GL/2, HP-RTL, PDF 1.7, PostScript 3 |
| Printing colours | Cyan, Magenta, Matte black, Photo black, Red, Yellow |
Copying
| Specification | Value |
|---|---|
| Copying | Colour copying |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Roll |
| Cut sheets | Yes |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll length | 90.83 m |
| Maximum roll width | 111.8 cm |
| Maximum roll diameter | 17 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |

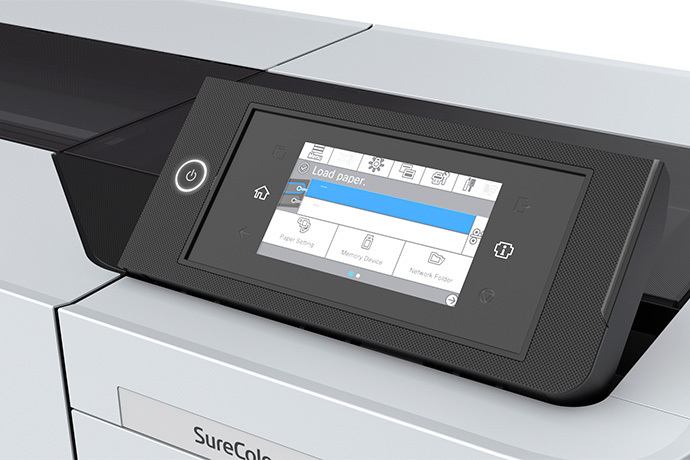

| Built-in display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Control type | Touch |
| Internal memory | 4 MB |
| Sound pressure level (printing) | 49.6 dB |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 2 W |
| Power consumption (standby) | 70 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Storage temperature (T-T) | -20 - 40 °C |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1854 mm |
| Depth | 508 mm |
| Height | 990 mm |
