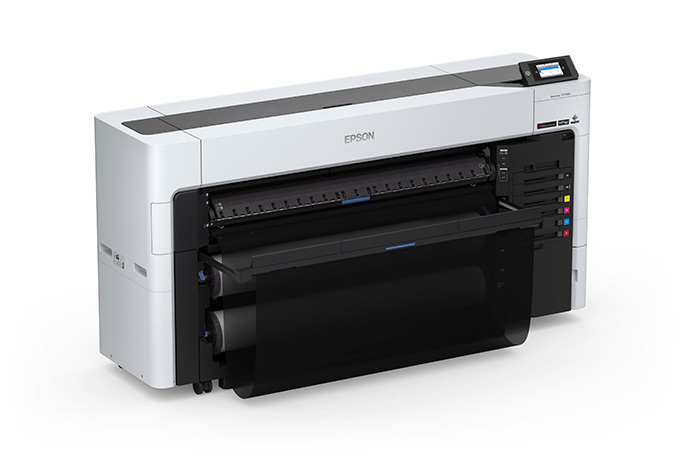

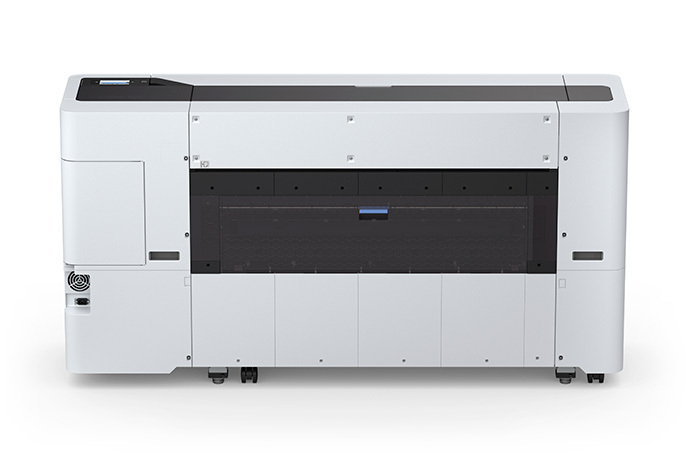

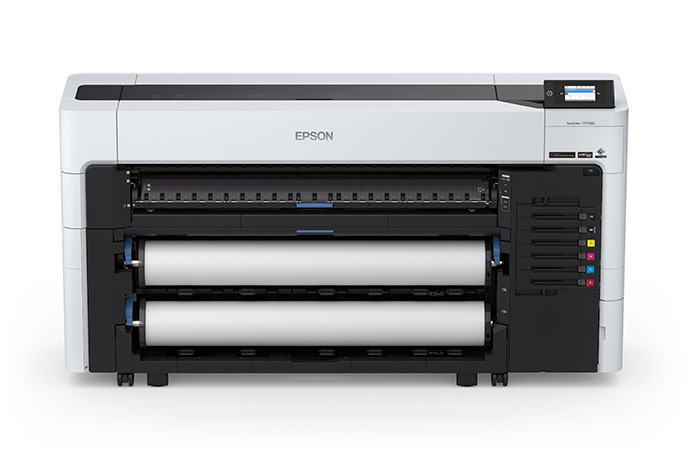

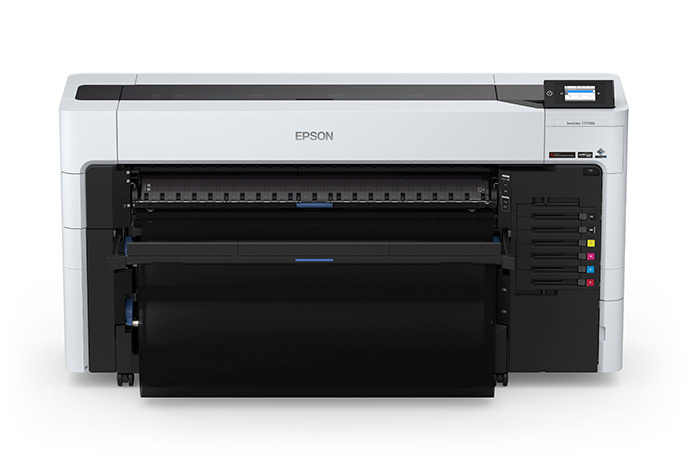

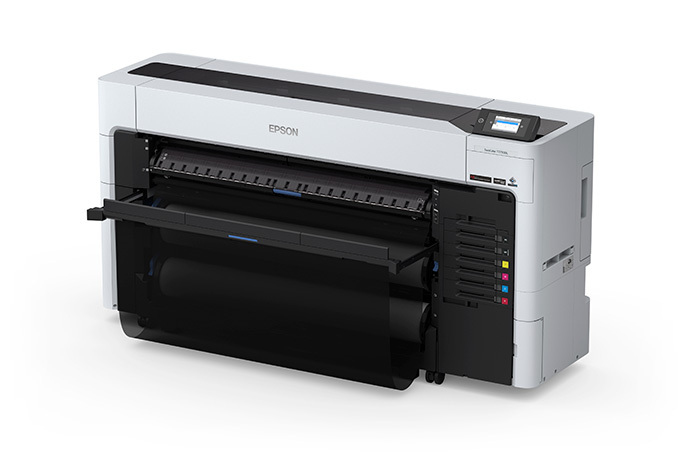

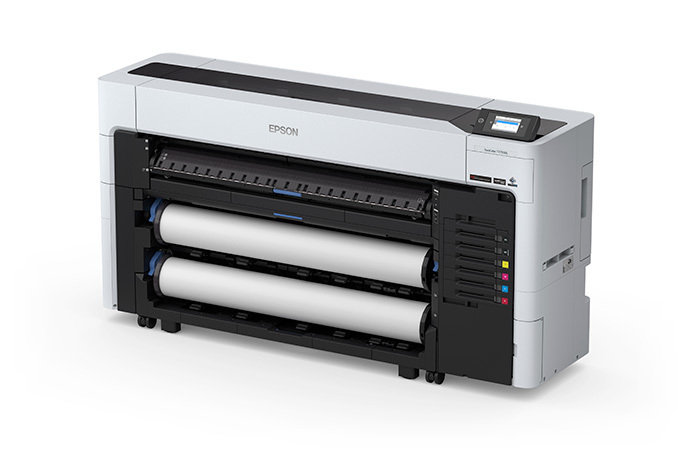

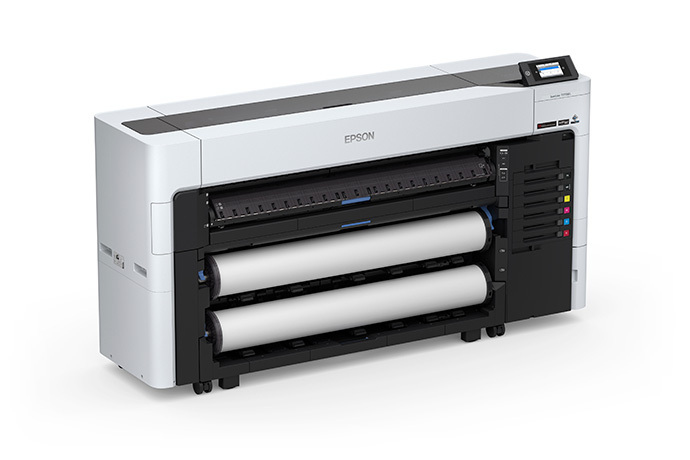

SureColor T7770DL large format printer Wi-Fi Inkjet Colour
2400 x 1200 DPI Ethernet LAN
Model T7770DLPart no. SCT7770DLEAN 010343965201
38 specifications
- Display10.9 cm (4.3")
- Storage4 GB
- Weight165.1 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
Overview
- Display
- 10.9 cm (4.3")
- Storage
- 4 GB
- Weight
- 165.1 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Brand
- Epson
- Category
- Large Format Printer
- Model
- T7770DL
- Part number
- SCT7770DL
- EAN / UPC
- 010343965201, 010343967106
- Also known as
- Epson SureColor T7770DL large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI Ethernet LAN
Specifications
38 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Printing colours | Cyan, Magenta, Matte black, Photo black, Red, Yellow |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Roll |
| Cut sheets | No |
| Media thickness | 0.07 - 0.8 mm |
| Maximum roll width | 111.8 cm |
| Maximum roll diameter | 17 cm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Ethernet LAN data rates | 100,1000 Mbit/s |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| Control type | Touch |
| Internal storage capacity | 4 GB |
| Sound pressure level (printing) | 49.6 dB |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.3 W |
| Power consumption (sleep) | 2 W |
| Power consumption (typical) | 75 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 40 °C |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Windows operating systems supported | Windows 10, Windows 8, Windows 8.1, Windows Vista, Windows XP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1854.2 mm |
| Depth | 828 mm |
| Height | 975.4 mm |
| Weight | 165.1 kg |
