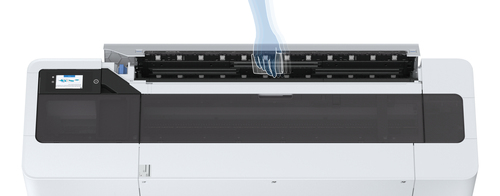

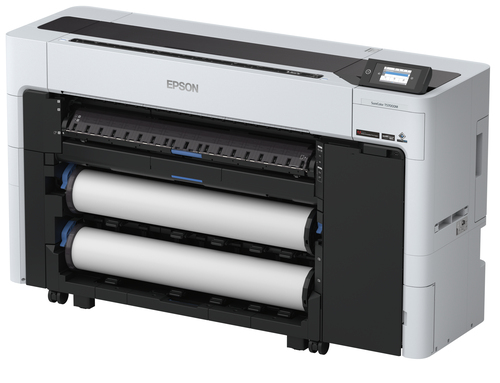

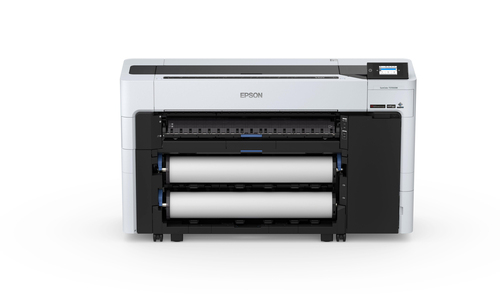

SureColor T5700DM Multi-function printer
Model T5700DMPart no. C11CH82301A1EAN 8715946703107
64 specifications
- Memory960000 MB
- Storage960 GB
- Weight147 kg
- ColourYes
- Print technologyInkjet
- CopyingColour copying
Overview
- Memory
- 960000 MB
- Storage
- 960 GB
- Weight
- 147 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- Colour copying
- Brand
- Epson
- Category
- Large Format Printer
- Model
- T5700DM
- Part number
- C11CH82301A1
- EAN / UPC
- 8715946703107
- Also known as
- Epson SureColor T5700DM Multi-function printer
Specifications
64 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 1200 x 2400 DPI |
| Page description languages | ESC/P-R, HP-GL/2, HP-RTL, PDF 1.7, PostScript 3 |
| Printing colours | Black, Cyan, Magenta, Photo black, Yellow |
| Borderless printing | Yes |
| Print head | PrecisionCoreTM TFP print head |
| Colour printing technology | Ultrachrome® XD3 |
Copying
| Specification | Value |
|---|---|
| Copying | Colour copying |
| Copier resize | 25 - 755% |
| Maximum number of copies | 99 copies |
Scanning
| Specification | Value |
|---|---|
| Scanning | Colour scanning |
| Optical scanning resolution | 200 x 200 DPI |
| Scan technology | CIS |
| Scan to | E-mail, USB, Network folder |
| Scanner integrated | Yes |
| Maximum scan width | 91.4 cm |
| Linear scan speed (imperial) | 10 inch/sec ( Monochrome, 200 dpi; 4.5 inch/sec ( Colour, 200 dpi; |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Roll |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A4 |
| Borderless printing media sizes | 10x15, 10x10, 11x17, 20x25 |
| Media thickness | Single Sheet0.1 mm, Roll0.3 mm, Rigid board supported |
| Maximum roll diameter | 17 cm |
| Roll weight (rear roll) | 10.2 kg |
| Auto take-up reel | Yes |
| Borderless printing width | 20 inches, 10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll |
| Photo paper sizes (imperial) | 4x24,11x17,17x22,20x24 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Direct printing | Yes |
| Security algorithms | SNMPv3, IPSec, 256-bit AES, SSL/TLS, WPA3 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Built-in display | Yes |
| Colour display | Yes |
| Control type | Touch |
| Internal memory | 960000 MB |
| Internal storage capacity | 960 GB |
| Storage media | SSD |
| Country of origin | Indonesia |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 1.3 W |
| Power consumption (standby) | 2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1645 mm |
| Depth | 499 mm |
| Height | 975 mm |
| Weight | 147 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 750 mm |
| Package depth | 1780 mm |
| Package height | 1210 mm |
| Package weight | 197.5 kg |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/-0.1 |
| All-in-one functions | Scan, Copy, Print |
| Minimum line width | 0.02 mm |
| Ink drop | (CMY)3.5 pl, (mk)3.5 pl, (pk)3.5 pl |
| Printer features | Touchscreen, Bluetooth, Direct print from USB, Driver Preview, Scan Preview, Auto Take up Reel, Nozzle Verification Technology |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | AC adapter, Adobe PostScript 3, Ink set, Installation/safety manual, Maintenance boxes, Roll Feed Spindle 36", Setup guide, SureColor T-Series Printer/Scanner, Warranty Documents |
| Colours capacity | Photo Black [350ml, 700ml], Matte Black [350ml, 700ml], Cyan [350ml, 700ml], Yellow [350ml, 700ml], Magenta [350ml, 700ml], Red [350ml, 700ml] |
| Ink tank capacity | 350 ml, 700 ml |
| Power consumption | 90 Watt, 44 Watt (economy), 2 Watt (standby), 1.3 Watt (Power off) |
