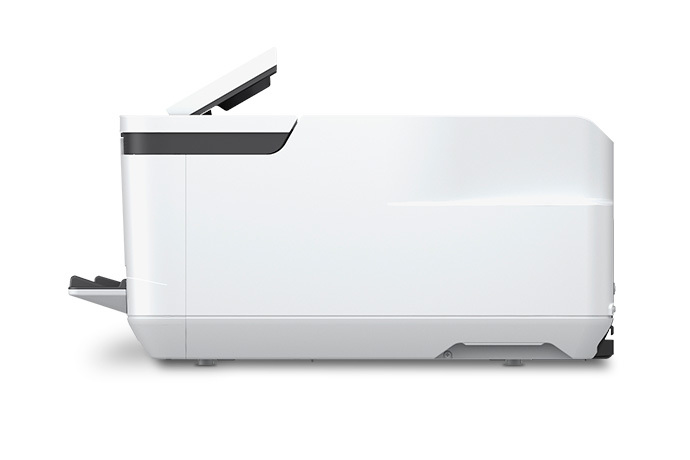

SureColor T3170M large format printer Wi-Fi Colour
2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Model T3170MPart no. C11CJ36201EAN 010343956735
56 specifications
- Display10.9 cm (4.3")
- Memory1000 MB
- Weight34 kg
- ColourYes
- Copier resize25 - 400%
- ScanningColour scanning
Overview
- Display
- 10.9 cm (4.3")
- Memory
- 1000 MB
- Weight
- 34 kg
- Colour
- Yes
- Copier resize
- 25 - 400%
- Scanning
- Colour scanning
- Brand
- Epson
- Category
- Large Format Printer
- Model
- T3170M
- Part numbers
- C11CJ36201, SCT3170M
- EAN / UPC
- 010343956735, 010343956742
- Also known as
- Epson SureColor T3170M large format printer Wi-Fi Colour 2400 x 1200 DPI A1 (594 x 841 mm) Ethernet LAN
Specifications
56 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 2 |
| Page description languages | ESC P, HP-GL/2, HP-RTL, JPEG, PDF, TIFF |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print head nozzles | 800 nozzles per colour |
Copying
| Specification | Value |
|---|---|
| Copier resize | 25 - 400% |
| Maximum number of copies | 99 copies |
Scanning
| Specification | Value |
|---|---|
| Scanning | Colour scanning |
| Optical scanning resolution | 600 x 600 DPI |
| Maximum scan resolution | 2400 x 2100 DPI |
| Scan technology | CIS |
| Scan to | E-mail Server, FTP, Network folder, USB |
| Accuracy | 0.1% |
| Maximum scan length | 20.3 cm |
| Maximum scan width | 61 cm |
| Scan speed (black) | 4.5 ips |
| Scan speed (colour) | 1.5 ips |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Coated paper, Plain paper, Recycled paper, Roll |
| Cut sheets | Yes |
| Maximum roll width | 61 cm |
| Maximum roll diameter | 10.2 cm |
| Roll weight (rear roll) | 2.99 kg |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi Direct | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Built-in display | Yes |
| Display | LED |
| Colour display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Control type | Touch |
| Internal memory | 1000 MB |
| Sound pressure level (standby) | 32 dB |
| Sound pressure level (printing) | 47 dB |
| Country of origin | Indonesia |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.2 W |
| Power consumption (standby) | 11 W |
| Power supply | 24 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | 5 - 85 °C |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | MacOS |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8.1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 965.2 mm |
| Depth | 482.6 mm |
| Height | 279.4 mm |
| Weight | 34 kg |
Packaging data
| Specification | Value |
|---|---|
| Cartridge(s) included | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
