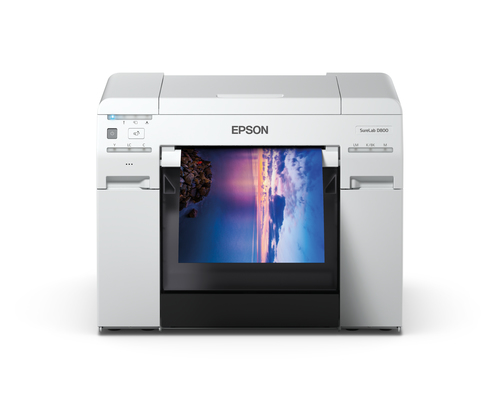

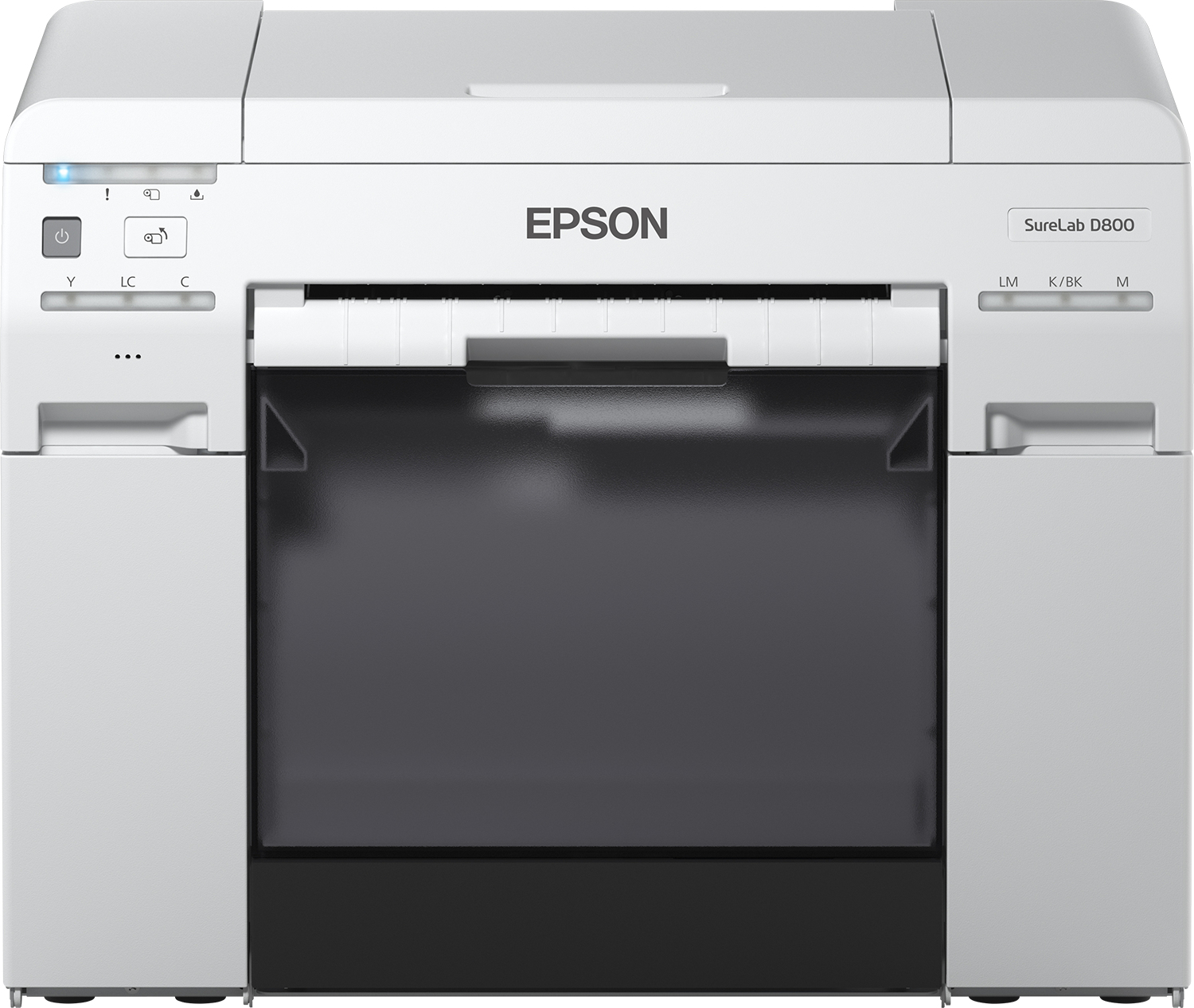

SureLab SL-D800 240V
Model SureLab SL-D800 240VPart no. C11CH75301CYEAN 8715946673806
68 specifications
- Weight23 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
- Maximum print size2100 x 1000 mm
- Product colourBlack, White
Overview
- Weight
- 23 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Maximum print size
- 2100 x 1000 mm
- Product colour
- Black, White
- Brand
- Epson
- Category
- Large Format Printer
- Model
- SureLab SL-D800 240V
- Part number
- C11CH75301CY
- EAN / UPC
- 8715946673806
- Also known as
- Epson SureLab SL-D800 240V
Specifications
68 specifications in 14 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 1400 x 720 DPI |
| Number of print cartridges | 6 |
| Printing colours | Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow |
| Borderless printing | Yes |
| Mean cycles between failures (MCBF) | 200000 |
| Print cartridge volume (metric) | 200 ml |
| Print head | Epson Micro Piezo drop-on-demand inkjet technology, High-performance print head technology designed for robust printing environments, Variable Sized Droplet Technology |
| Colour printing technology | Ultrachrome® D6r-S |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | 2100 x 1000 mm |
| Paper tray media types | Glossy paper, Matte paper, Roll |
| ISO A-series sizes (A0...A9) | A4 |
| Cut sheets | Yes |
| Maximum roll length | 66 m |
| Maximum roll width | 20.3 cm |
| Maximum roll diameter | 17 cm |
| Roll weight (rear roll) | 4 kg |
| Roll core diameter (rear roll) | 7.6 cm |
| Maximum media width | 102mm (4-inch), 127mm (5-inch), 152mm (6-inch), 203mm (8-inch), 210mm (A4), 89mm (3.5-inch) |
| Photo paper sizes | 8.9x5,21x100 cm |
| Roll widths supported | 102 mm (4 inch), 127 mm (5 inch), 152 mm (6 inch), 203 mm (8 inch), 89mm (3.5inch) |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, White |
| Built-in display | Yes |
| Display | LED |
| Sound pressure level (standby) | 43 dB |
| Sound pressure level (printing) | 55 dB |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power consumption (sleep) | 6 W |
| Power consumption (typical) | 120 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 40 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Mac OS 10.5+, Windows 10 (32/64 bit), Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 460 mm |
| Depth | 430 mm |
| Height | 354 mm |
| Weight | 23 kg |
| Maximum dimensions (W x D x H) | 460 x 640 x 354 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 530 mm |
| Package depth | 680 mm |
| Package height | 590 mm |
| Package weight | 27.8 kg |
| Bundled software | Printer Driver (standard bundling), Order Controller (optional) |
Other features
| Specification | Value |
|---|---|
| Ink drop | 2.5 pl, With Variable-Sized Droplet Technology |
| Other hardware | Control LED for roll paper and ink |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 6 pc(s) |
| Products per pallet (UK) | 6 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | CD Manual, Driver and utilities, Maintenance Tank, Power cable, Setup guide, Spindle Unit(s) |
| Power consumption | Operating (approx.)120 W Ready Mode (approx.)60 W Sleep Mode (approx.)6 W |
