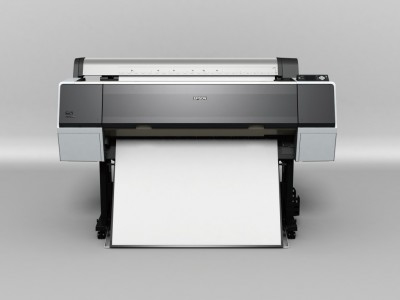

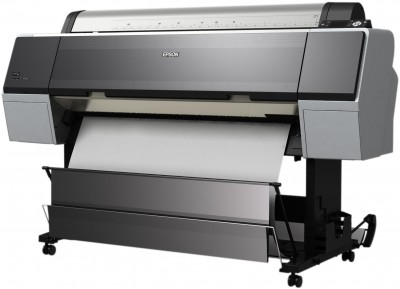

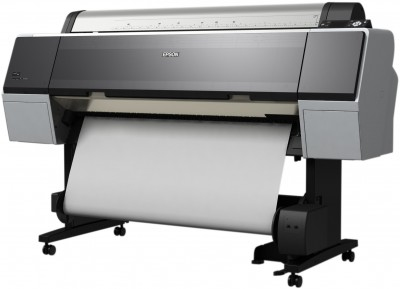

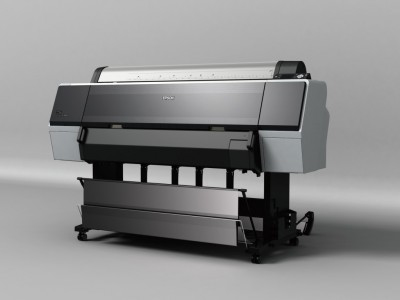

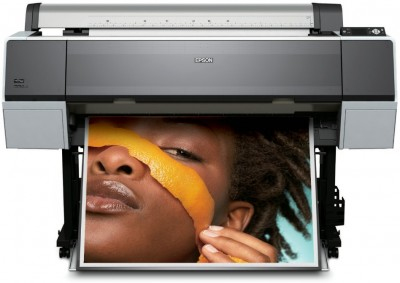

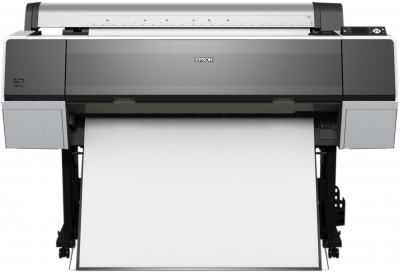

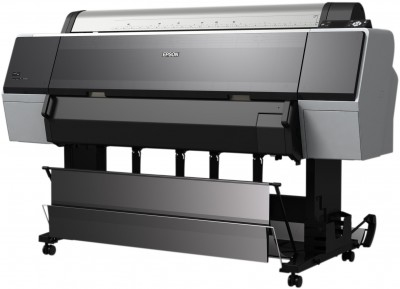

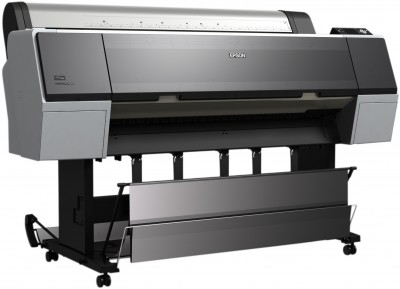

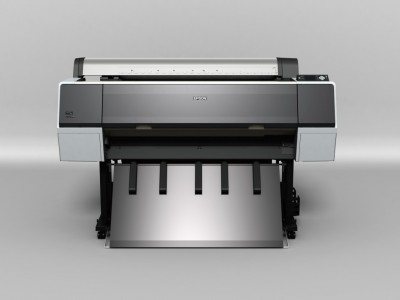

Stylus Pro 9900 SpectroProofer UV
Model Stylus Pro 9900 SpectroProofer UVPart no. C11CA11001A2EAN 2001653761001
54 specifications
- Display63 cm (24.8")
- Memory256 MB
- Weight129.5 kg
- ColourYes
- Maximum print sizeA0 (841 x 1189 mm)
- Power requirementsAC 100-240V 50/60Hz
Overview
- Display
- 63 cm (24.8")
- Memory
- 256 MB
- Weight
- 129.5 kg
- Colour
- Yes
- Maximum print size
- A0 (841 x 1189 mm)
- Power requirements
- AC 100-240V 50/60Hz
- Brand
- Epson
- Category
- Large Format Printer
- Model
- Stylus Pro 9900 SpectroProofer UV
- Part number
- C11CA11001A2
- EAN / UPC
- 2001653761001, 8715946436005, 8715946443041
- Also known as
- Epson Stylus Pro 9900 Spectro Proofer UV
Specifications
54 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2880 x 1440 DPI |
| Printing colours | Photo black, Matte black, Light Cyan, Light light black, Light black, Vivid light magenta, Vivid magenta, Orange, Green, Yellow, Cyan, Black |
| Print head | MicroPiezo TFP print head |
| Print head nozzles | 360 Nozzles Black, 360 Nozzles per Color |
| Colour printing technology | Ultrachrome® K3 Vivid Magenta |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Roll |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3+, A3, A4 |
| ISO B-series sizes (B0...B9) | B4, B3, B2, B1, B0 |
| Cut sheets | Yes |
| Media thickness | 0.08 - 1.5 mm |
| Maximum roll width | 111.8 cm |
| Maximum roll diameter | 15 cm |
| Maximum media width | 210 - 1118 |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 63 cm (24.8") |
| Internal memory | 256 MB |
| Sound pressure level (printing) | 50 dB |
| Drive device, buffer size | 256 MB |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 100-240V 50/60Hz |
| Power consumption (standby) | 1 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (active) | 80 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 40 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Linux, Mac OS 10.4+, Windows 2000, Windows 7, Windows 7 x64, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1702 x 678 x 1196 mm |
| Width | 1864 mm |
| Depth | 667 mm |
| Height | 1218 mm |
| Weight | 129.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 815 mm |
| Package depth | 2040 mm |
| Package height | 1410 mm |
| Package weight | 211.9 kg |
Other features
| Specification | Value |
|---|---|
| Ink drop | 3.5 pl |
Logistics data
| Specification | Value |
|---|---|
| Products per pallet | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | Driver and utilities, Main unit, Power cable, Setup guide, Software (CD), User manual (CD) |
| Power consumption | 80 Watt, 16 Watt (economy), 1 Watt (standby) |
