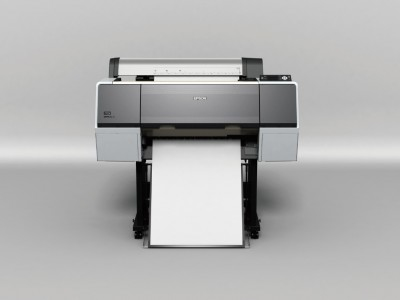

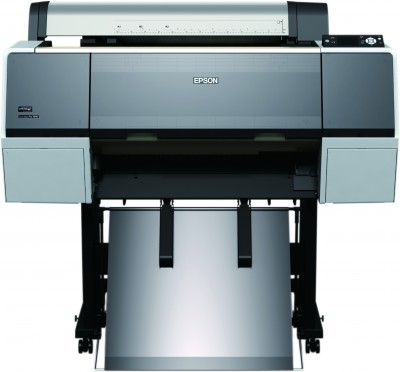

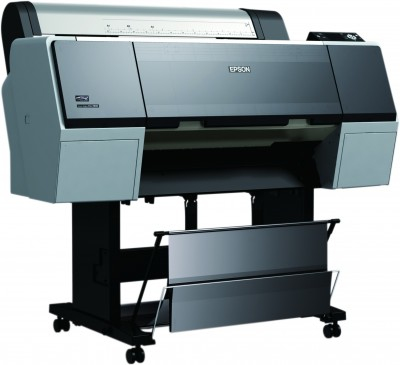

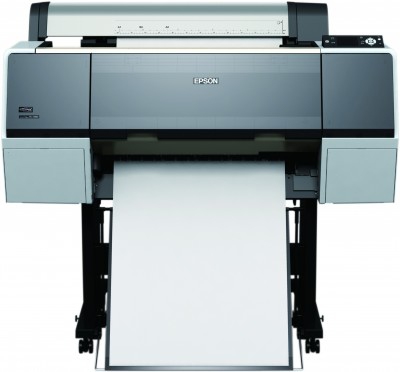

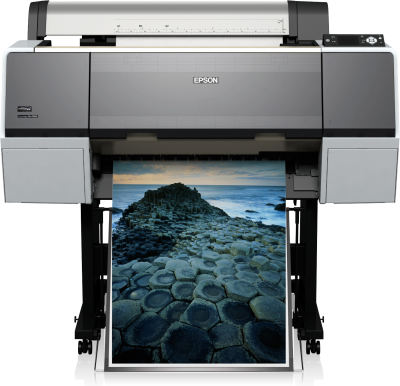

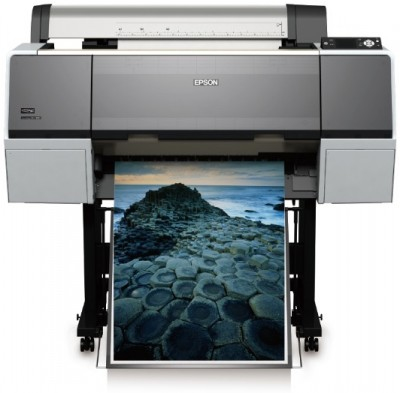

Stylus Pro 7890
Model Stylus Pro 7890Part no. C11CB51001A2EAN 8715946473567
48 specifications
- Display6.3 cm (2.48")
- Memory256 MB
- Weight84.5 kg
- ColourYes
- Maximum print sizeA1 (594 x 841 mm)
- Power requirements110V - 240V AC
Overview
- Display
- 6.3 cm (2.48")
- Memory
- 256 MB
- Weight
- 84.5 kg
- Colour
- Yes
- Maximum print size
- A1 (594 x 841 mm)
- Power requirements
- 110V - 240V AC
- Brand
- Epson
- Category
- Large Format Printer
- Model
- Stylus Pro 7890
- Part numbers
- C11CB51001A2, C11CB51001A0, C11CB51001A1
- EAN / UPC
- 8715946473567, 010343881853, 8715946473543, 8715946473550
- Also known as
- Epson Stylus Pro 7890
Specifications
48 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2880 x 1440 DPI |

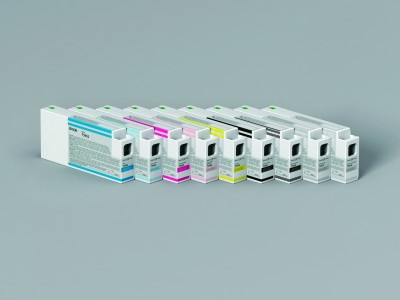

| Printing colours | Photo black, Matte black, Light Cyan, Light light black, Light black, Vivid light magenta, Vivid magenta, Yellow, Cyan |
| Print head | MicroPiezo TFP print head |
| Print speed (normal quality) | 40m²/hour |
| Print head nozzles | 360 Nozzles Black, 360 Nozzles per Color |
| Colour printing technology | Ultrachrome® K3 Vivid Magenta |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Roll |
| ISO A-series sizes (A0...A9) | A1, A2, A3+, A3, A4 |
| ISO B-series sizes (B0...B9) | B4, B3, B2 |
| Cut sheets | Yes |
| Media thickness | 0.08 - 1.5 mm |
| Roll top margin | 3 mm |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | No |
| USB 2.0 ports quantity | 0 |
| Ethernet LAN data rates | 10Base-T, 100Base-Tx |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Colour display | Yes |
| Display diagonal | 6.3 cm (2.48") |
| Internal memory | 256 MB |
| Sound pressure level (printing) | 50 dB |
| Country of origin | Japan |
Power
| Specification | Value |
|---|---|
| Power requirements | 110V - 240V AC |
| Power consumption (standby) | 1 W |
| Power consumption (typical) | 70 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Mac OS 10.4+, Windows 2000, Windows 7, Windows 7 x64, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 1356 x 667 x 1218 mm |
| Width | 1356 mm |
| Depth | 667 mm |
| Height | 1218 mm |
| Weight | 84.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 795 mm |
| Package depth | 1530 mm |
| Package height | 955 mm |
| Package weight | 148.3 kg |
| Bundled software | Epson NetConfig, Epson Remote Panel, SpectroProofer utilities, ColorBase |
Other features
| Specification | Value |
|---|---|
| Ink drop | 3.5 pl |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | Driver and utilities, Main unit, Power cable, Setup guide, Software (CD), User manual (CD), Warranty document |
| Power consumption | 70 Watt, 14 Watt (economy), 1 Watt (Power off) |
