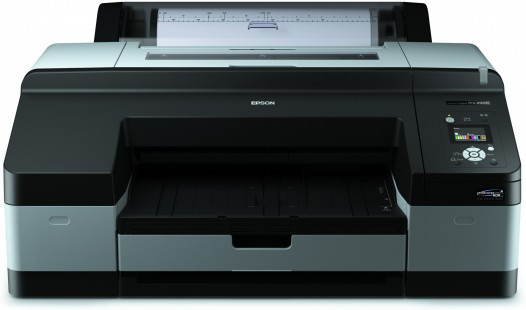

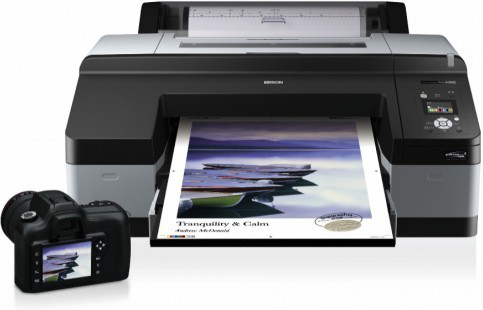

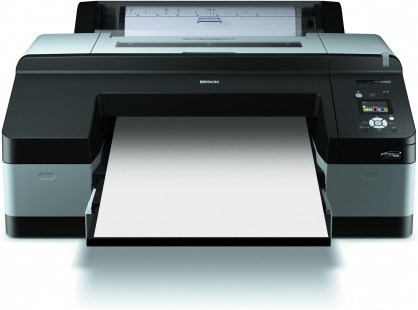

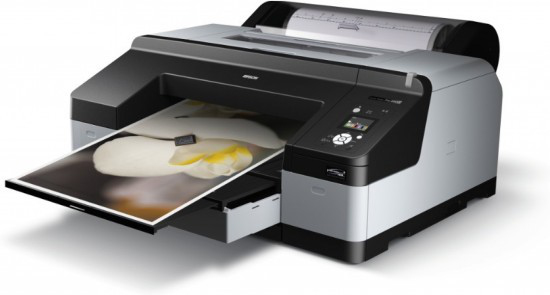

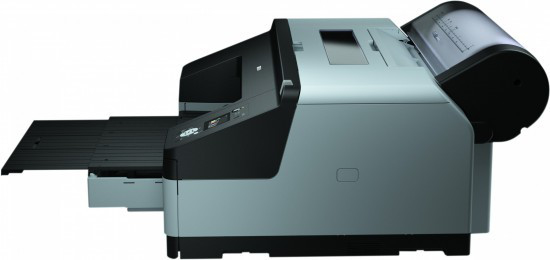

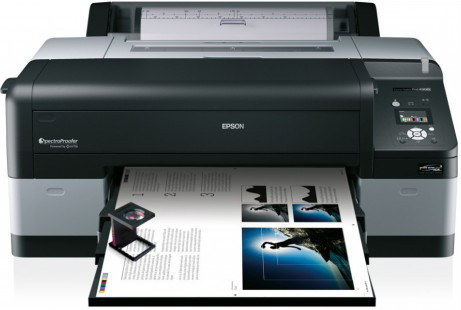

Stylus Pro 4900 Designer Edition
Model Stylus Pro 4900 Designer EditionPart no. C11CA88001DEEAN 8715946510941
53 specifications
- Display6.3 cm (2.48")
- Memory256 MB
- Weight52 kg
- ColourYes
- Print technologyInkjet
- Total input capacity250 sheets
Overview
- Display
- 6.3 cm (2.48")
- Memory
- 256 MB
- Weight
- 52 kg
- Colour
- Yes
- Print technology
- Inkjet
- Total input capacity
- 250 sheets
- Brand
- Epson
- Category
- Large Format Printer
- Model
- Stylus Pro 4900 Designer Edition
- Part number
- C11CA88001DE
- EAN / UPC
- 8715946510941
- Also known as
- Epson Stylus Pro 4900 Designer Edition
Specifications
53 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2880 x 1440 DPI |
| Printing colours | Photo black, Matte black, Light Cyan, Light light black, Light black, Vivid light magenta, Vivid magenta, Orange, Green, Yellow, Cyan |
| Print head nozzles | 360 Nozzles Black, 360 Nozzles per Color |
| Colour printing technology | Ultrachrome® HDR |
Input & output capacity
| Specification | Value |
|---|---|
| Total input capacity | 250 sheets |
| Maximum input capacity | 250 sheets |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A2 (420 x 594 mm) |
| Paper tray media types | Roll |
| ISO A-series sizes (A0...A9) | A2, A3+, A3, A4 |
| Borderless printing media sizes | Letter |
| Media thickness | 0.08 - 1.5 mm |
| Maximum roll length | 0.432 m |
| Photo paper sizes (imperial) | 14x17" |
| Roll top margin | 3 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Fast Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10 Base-T/100 Base-TX |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 6.3 cm (2.48") |
| Internal memory | 256 MB |
| Sound pressure level (printing) | 45 dB |
| Country of origin | Japan |
Power
| Specification | Value |
|---|---|
| Power requirements | 100-240 V, 50/60 Hz |
| Power consumption (PowerSave) | 8.5 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (typical) | 52 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Mac OS 10.3+, Mac OS 10.4+, Windows 7, Windows 7 x64, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Vista, Windows Vista x64, Windows XP, Windows XP x64 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 863 x 1134 x 405 mm |
| Width | 863 mm |
| Depth | 1134 mm |
| Height | 405 mm |
| Weight | 52 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 915 mm |
| Package depth | 1010 mm |
| Package height | 590 mm |
| Package weight | 65 kg |
| Bundled software | EpsonNet Config, Epson Status Monitor |
Other features
| Specification | Value |
|---|---|
| Photo paper | Yes |
| Ink drop | 3.5 pl |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | Driver and utilities, Individual Ink Cartridges, Main unit, Power cable, Setup guide, Software (CD), User manual (CD), Warranty document |
| Power consumption | 52 Watt, 8.5 Watt (economy), 0.5 Watt (standby) |
