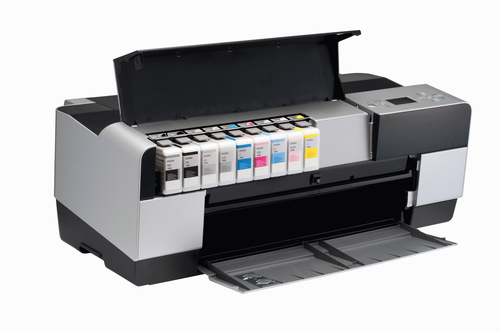

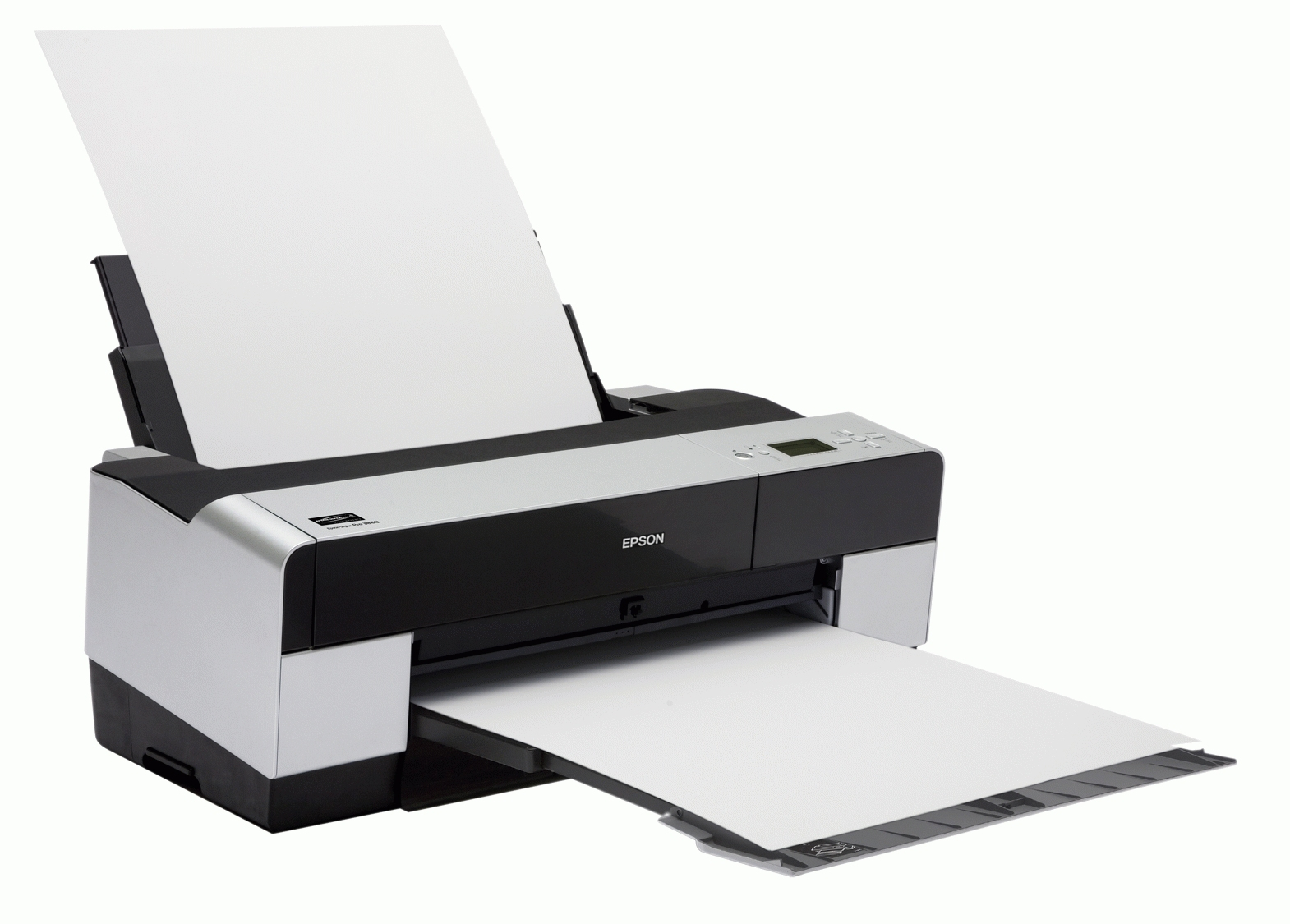

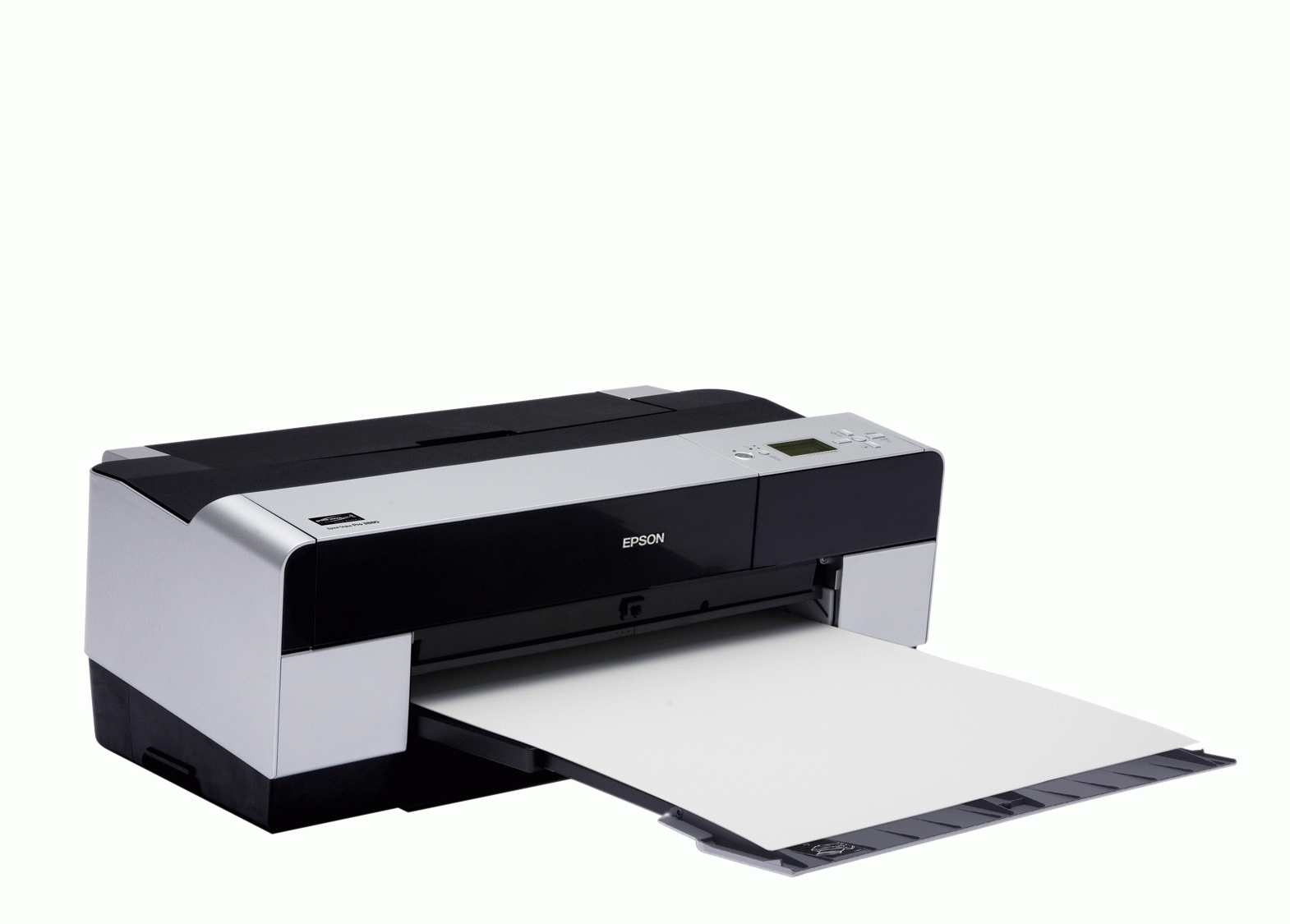

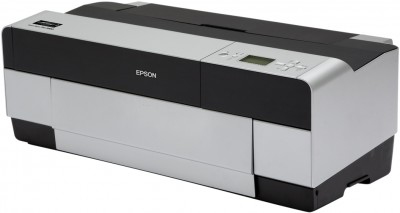

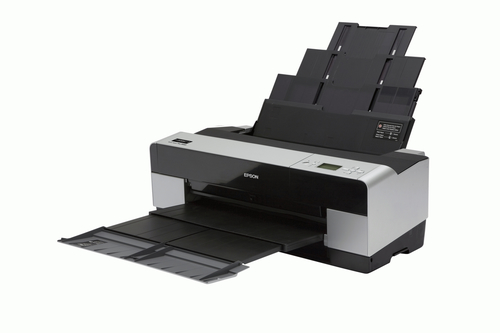

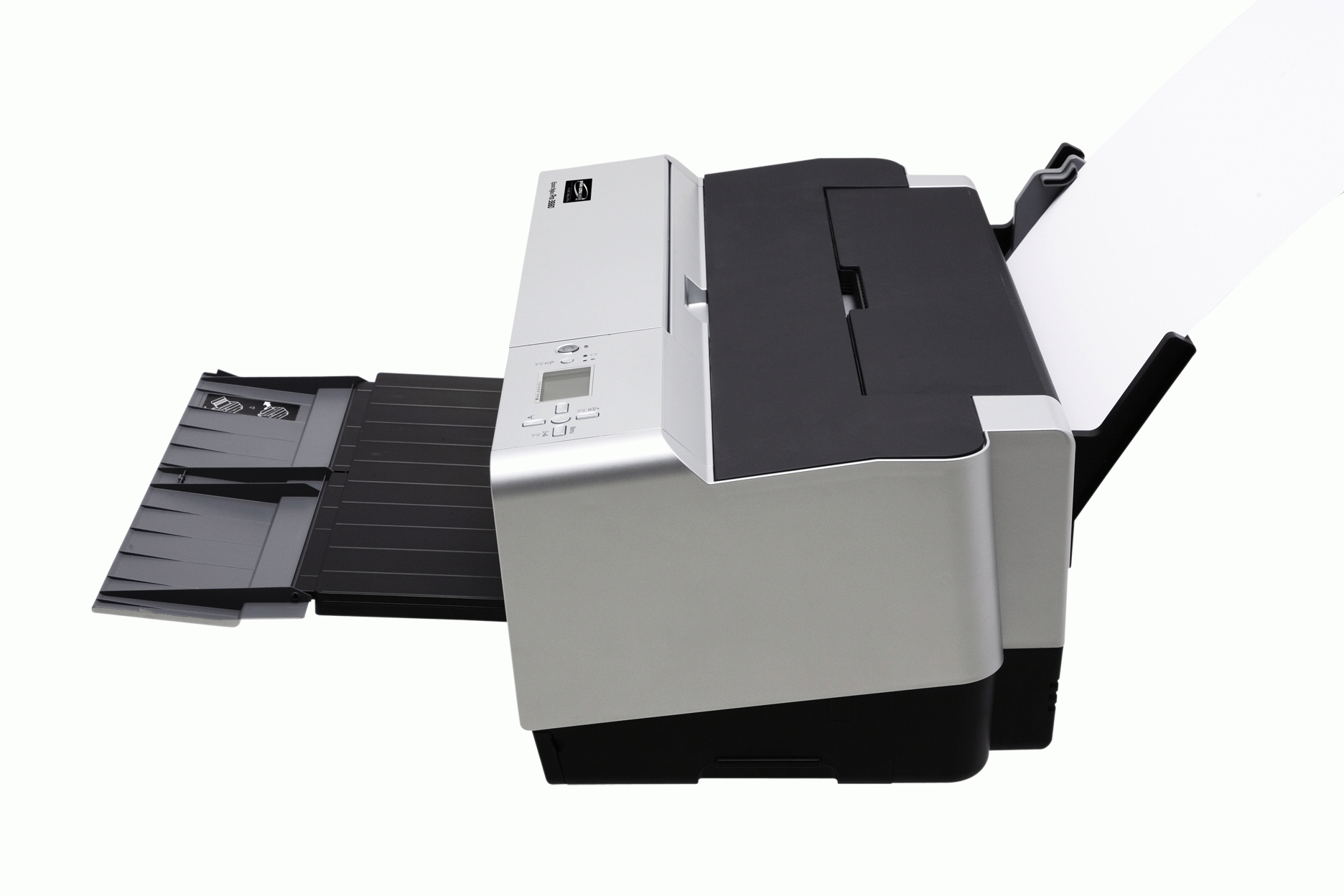

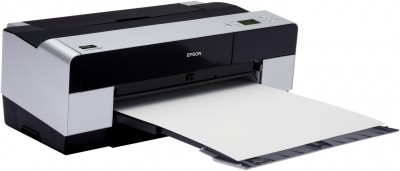

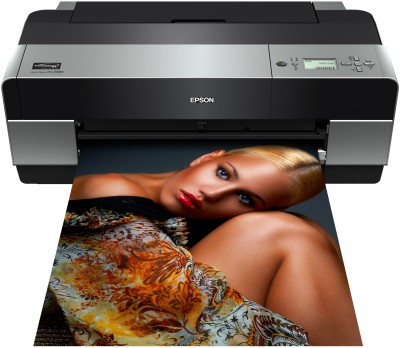

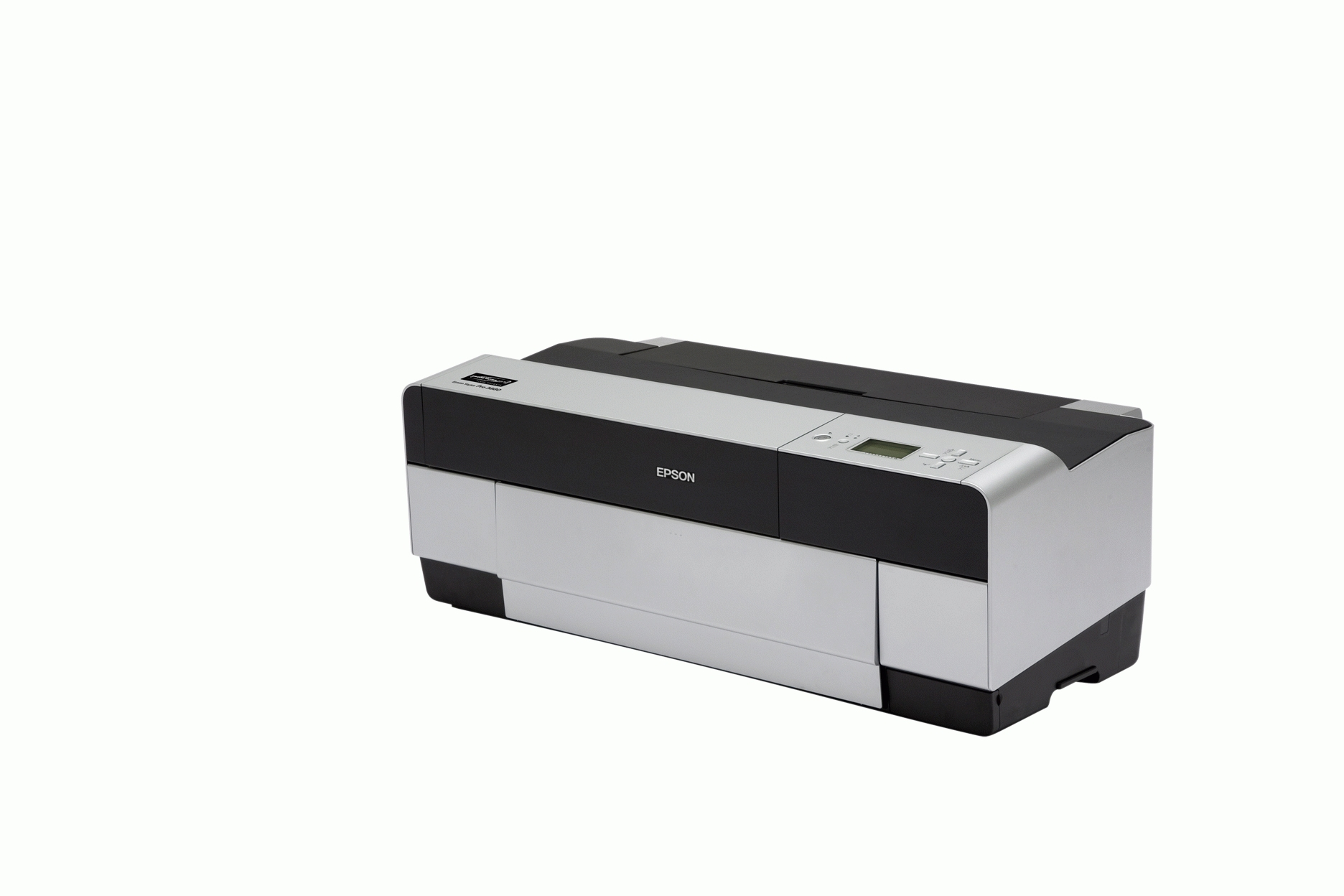

Stylus Pro 3880
Model Stylus Pro 3880Part no. C11CA61001BXEAN 8715946460093
66 specifications
- Weight19 kg
- ColourYes
- Maximum print sizeA2 (420 x 594 mm)
- Power requirementsAC 220-240 V
- Operating temperature (T-T)10 - 35 °C
- Dimensions (WxDxH)257 x 684 x 376 mm
Overview
- Weight
- 19 kg
- Colour
- Yes
- Maximum print size
- A2 (420 x 594 mm)
- Power requirements
- AC 220-240 V
- Operating temperature (T-T)
- 10 - 35 °C
- Dimensions (WxDxH)
- 257 x 684 x 376 mm
- Brand
- Epson
- Category
- Large Format Printer
- Model
- Stylus Pro 3880
- Part number
- C11CA61001BX
- EAN / UPC
- 8715946460093, 010343873742, 4005922220716, 5052217014382 +2 more
- Also known as
- Epson Stylus Pro 3880
Specifications
66 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2880 x 1440 DPI |
| Number of print cartridges | 9 |
| Printing colours | Photo black, Matte black, Light Cyan, Light light black, Light black, Vivid light magenta, Vivid magenta, Yellow, Cyan |
| Print cartridge volume (metric) | 80ml |
| Print head | Micro Piezo |
| Print head nozzles | 180 Nozzles Black, 180 Nozzles per Color |
| Colour printing technology | Ultrachrome® K3 Vivid Magenta |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A2 (420 x 594 mm) |
| Paper tray media types | Glossy paper, Matte paper, Photo paper, Plain paper |
| ISO A-series sizes (A0...A9) | A2, A3++, A3+, A3, A4, A5 |
| Cut sheets | Yes |
| Media thickness | 1.5 mm |
| Print margin cut-sheet | 0 x 0 x 0 x 0 |
| JIS B-series sizes (B0...B9) | B4 |
| Photo paper sizes | 10x15,13x18,13x20,20x25,14.8x10 |
| Roll paper | No |
| Recommended media weight | 64 - 255 g/m² |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Built-in display | Yes |
| Colour display | No |
| Sound pressure level (printing) | 39 dB |
| Country of origin | Japan |
Power
| Specification | Value |
|---|---|
| Power requirements | AC 220-240 V |
| Power consumption (standby) | 5 W |
| Power consumption (typical) | 25 W |
| AC input voltage | 220 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 40 - 50% |
| Storage relative humidity (H-H) | 20 - 85% |
| Storage temperature (T-T) | -20 - 40 °C |
System requirements
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Compatible operating systems | Mac OS 10.3+, Mac OS 10.4+, Mac OS 10.5+, Windows 2000, Windows Vista, Windows XP, Windows XP x64 |
Sustainability
| Specification | Value |
|---|---|
| Sustainability certificates | ENERGY STAR |
Weight & dimensions
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 257 x 684 x 376 mm |
| Width | 684 mm |
| Depth | 376 mm |
| Height | 257 mm |
| Weight | 19 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 530 mm |
| Package depth | 800 mm |
| Package height | 400 mm |
| Package weight | 24.8 kg |
| Drivers included | Yes |
| Bundled software | Epson LFP Remote Panel Utility Epson ColorBase 2.0 Epson Print Plugin Adobe Photoshop Epson Copy Factory 5 v 4.25 |
Other features
| Specification | Value |
|---|---|
| Glossy paper | Yes |
| Photo paper | Yes |
| Ink drop | 3.5 pl, With Variable-Sized Droplet Technology |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross height | 2.15 m |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Pallet height (UK) | 2.15 m |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Products per pallet | 10 pc(s) |
| Products per pallet (UK) | 10 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Products per pallet layer (UK) | 2 pc(s) |
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Ink tank capacity | 80 ml |
| Power consumption | 25 Watt, 5.5 Watt (standby), 0.4 Watt (Power off) |
