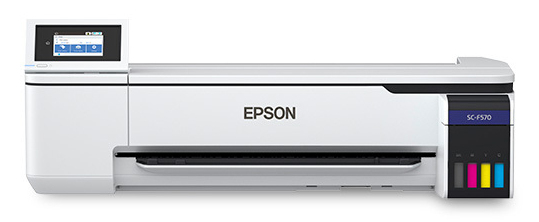

SCF570PE large format printer Wi-Fi Dye-sublimation Colour
2400 x 1200 DPI Ethernet LAN
Model SCF570PEEAN 010343967939
42 specifications
- Display10.9 cm (4.3")
- Weight29 kg
- ColourYes
- Print technologyDye-sublimation
- Maximum number of input trays1
- Paper tray media typesRoll, Cut sheet
Overview
- Display
- 10.9 cm (4.3")
- Weight
- 29 kg
- Colour
- Yes
- Print technology
- Dye-sublimation
- Maximum number of input trays
- 1
- Paper tray media types
- Roll, Cut sheet
- Brand
- Epson
- Category
- Large Format Printer
- Model
- SCF570PE
- Part number
- SCF570PE
- EAN / UPC
- 010343967939
- Also known as
- Epson SCF570PE large format printer Wi-Fi Dye-sublimation Colour 2400 x 1200 DPI Ethernet LAN
Specifications
42 specifications in 10 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Dye-sublimation |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | ESC P |
| Printing colours | Cyan, Magenta, Yellow, Black |
Input & output capacity
| Specification | Value |
|---|---|
| Maximum number of input trays | 1 |
| Maximum input capacity | 50 sheets |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Roll, Cut sheet |
| Cut sheets | Yes |
| Maximum roll width | 62 cm |
| Maximum roll diameter | 10.9 cm |
| Auto take-up reel | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi Direct | Yes |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Built-in display | Yes |
| Display | LCD |
| Display diagonal | 10.9 cm (4.3") |
| Control type | Touch |
| Sound pressure level (standby) | 32 dB |
| Sound pressure level (printing) | 50 dB |
| Country of origin | Indonesia |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.2 W |
| Power consumption (sleep) | 1.6 W |
| Power consumption (standby) | 8 W |
| Power consumption (typical) | 22 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 10 - 35 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 85% |
| Storage temperature (T-T) | -20 - 40 °C |
System requirements
| Specification | Value |
|---|---|
| Mac operating systems supported | Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Windows operating systems supported | Windows 10, Windows 11 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 970 mm |
| Depth | 811 mm |
| Height | 245 mm |
| Weight | 29 kg |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | UL, Federal Communications Commission (FCC), CSA, CE, Electromagnetic Compatibility (EMC) |
