SureColor SC-T5405 large format printer Wi-Fi Inkjet Colour
2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Model SC-T5405Part no. C11CJ56301A0EAN 8715946682303
67 specifications
- Display10.9 cm (4.3")
- Memory1024 MB
- Weight76 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
Overview
- Display
- 10.9 cm (4.3")
- Memory
- 1024 MB
- Weight
- 76 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Brand
- Epson
- Category
- Large Format Printer
- Model
- SC-T5405
- Part numbers
- C11CJ56301A0, C11CJ56301A1
- EAN / UPC
- 8715946682303, 8715946687049, 8715946687056
- Also known as
- Epson SureColor SC-T5405 large format printer Wi-Fi Inkjet Colour 2400 x 1200 DPI A0 (841 x 1189 mm) Ethernet LAN
Specifications
67 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | ESC/P-R, HP-GL/2, HP-RTL |
| Printing colours | Pigment black, Pigment cyan, Pigment yellow, Pigment magenta |
| Print cartridge volume (metric) | 700 ml |
| Print speed (normal quality, A1) | 22 pph |
| Print head nozzles | 800 nozzles black, 800 nozzles per colour |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Input & output capacity
| Specification | Value |
|---|---|
| Total number of input trays | 2 |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Bond paper, Coated paper, Glossy paper, Matte paper, Photo paper, Roll, Satin paper |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3, A3+, A4 |
| ISO B-series sizes (B0...B9) | B1, B2, B3, B4, B5 |
| Cut sheets | Yes |
| Media thickness | 0.05 - 0.3 mm |
| Maximum roll width | 91.4 cm |
| Print margin cut-sheet | 3 x 3 x 20 x 3 |
| Borderless printing width | 11.81, 12.99, 15.98, 20.28, 10" (25.4cm) Roll, 17" (43.1cm) Roll, 24" (60.9cm) Roll, 36" (91.4cm) Roll |
| Roll paper | Yes |

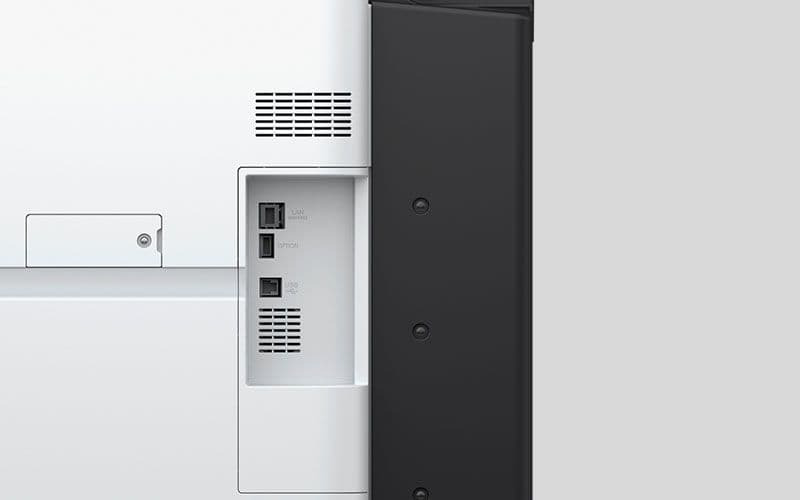

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB connector | USB Type-A / USB Type-B |
| Direct printing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Supported network protocols | TLS, SSL, IEE 802, SNMP, IPSec, IPv6 |
| Mobile printing technologies | Apple AirPrint |
| Security algorithms | SSL/TLS, SNMP, IPSec |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey, White |
| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Control type | Touch |
| Internal memory | 1024 MB |
| Maximum internal memory | 1000 MB |
| Sound pressure level (standby) | 32 dB |
| Sound pressure level (printing) | 50 dB |
| Country of origin | Indonesia |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.25 W |
| Power consumption (standby) | 13 W |
| Power consumption (typical) | 38 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1385 mm |
| Depth | 750 mm |
| Height | 1060 mm |
| Weight | 76 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 850 mm |
| Package depth | 1550 mm |
| Package height | 1116 mm |
| Package weight | 112 kg |
| Drivers included | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0,1 |
| Touchscreen | Yes |
| Compatible products | WorkForce DS-6500, WorkForce DS-60000 |
| Minimum line width | 0.02 mm |
| Ink drop | 4 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Quantity per pack | 1 pc(s) |
