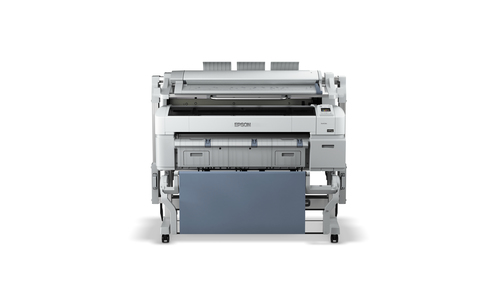

Epson SC-T5200D MFP PS
Model SC-T5200D MFP PSPart no. C11CD40301A1EAN 8715946544076
66 specifications
- Display6.81 cm (2.68")
- Memory1024 MB
- Weight171 kg
- ColourYes
- CopyingColour copying
- ScanningColour scanning
Overview
- Display
- 6.81 cm (2.68")
- Memory
- 1024 MB
- Weight
- 171 kg
- Colour
- Yes
- Copying
- Colour copying
- Scanning
- Colour scanning
- Brand
- Epson
- Category
- Large Format Printer
- Model
- SC-T5200D MFP PS
- Part number
- C11CD40301A1
- EAN / UPC
- 8715946544076
- Also known as
- Epson SureColor SC-T5200D MFP PS
Specifications
66 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Colour | Yes |
| Maximum resolution | 2880 x 1440 DPI |
| Page description languages | ESC/P-R, HP-GL/2, PostScript 3 |
| Printing colours | Photo black, Matte black, Yellow, Magenta, Cyan |
| Borderless printing | Yes |
| Print head | PrecisionCore™ TFP print head |
| Print head nozzles | 720 Nozzles Black, 720 Nozzles per Color |
| Colour printing technology | Ultrachrome® XD |
Copying
| Specification | Value |
|---|---|
| Copying | Colour copying |
Scanning
| Specification | Value |
|---|---|
| Scanning | Colour scanning |
| Optical scanning resolution | 600 x 600 DPI |
| Scan technology | CIS |
| Maximum scan width | 91.4 cm |
| Linear scan speed (imperial) | 13.3 inch/sec ( Monochrome, 200 dpi; 6 inch/sec ( Colour, 200 dpi; |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Roll |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3+, A3, A4 |
| ISO B-series sizes (B0...B9) | B4, B3, B2 |
| Media thickness | 0.08 - 1.5 mm |
| Borderless printing width | 10 inches, 11.81 inches, 12.95 inches, 15.98 inches, 17.01 inches, 20.28 inches, 23.39 inches, 24.02 inches, 28.66 inches, 33.11 inches, 35.98 inches |
| Maximum media width | 38" (153mm to 965.2mm) |
| Roll top margin | 3 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| RJ-45 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey, White |
| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 6.81 cm (2.68") |
| Internal memory | 1024 MB |
| Sound pressure level (printing) | 50 dB |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 3 W |
| Power consumption (typical) | 61 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Linux, Mac OS 10.5.8 or later, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista (32/64 bit) |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.5 Leopard |
| Windows operating systems supported | Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1539 mm |
| Depth | 1074 mm |
| Height | 1647 mm |
| Weight | 171 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 810 mm |
| Package depth | 1850 mm |
| Package height | 2285 mm |
| Package weight | 262 kg |
| Cartridge(s) included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| All-in-one functions | Scan, Copy, Print |
| Ink drop | 3.5 pl, With Variable-Sized Droplet Technology |
| Printer features | Direct scan-to-print without PC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | Driver and utilities, Individual Ink Cartridges, Main unit, Setup guide, User manual (CD), Warranty document |
| Power consumption | 61 Watt, 3 Watt (standby), 0.5 Watt (Power off) |
