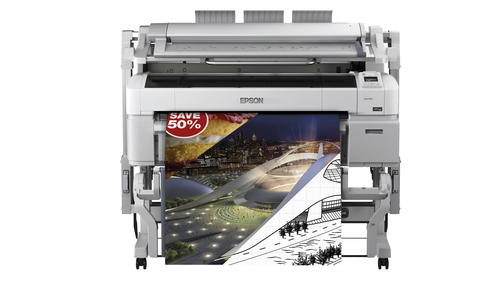

Epson SureColor SC-T5200
Model SC-T5200Part no. C11CD67301A0EAN 5054629729823
64 specifications
- Display6.81 cm (2.68")
- Memory1024 MB
- Weight84 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
Overview
- Display
- 6.81 cm (2.68")
- Memory
- 1024 MB
- Weight
- 84 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Brand
- Epson
- Category
- Large Format Printer
- Model
- SC-T5200
- Part number
- C11CD67301A0
- EAN / UPC
- 5054629729823, 8715946542133, 8715946542188
- Also known as
- Epson SureColor SC-T5200
Specifications
64 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2880 x 1440 DPI |
| Printing colours | Photo black, Matte black, Yellow, Magenta, Cyan |
| Borderless printing | Yes |
| Print head | PrecisionCore™ TFP print head |
| Print head nozzles | 720 Nozzles Black, 720 Nozzles per Color |
| Colour printing technology | Ultrachrome® XD |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
| Scan technology | CIS |
| Maximum scan width | 91.4 cm |
| Linear scan speed (imperial) | 13.3 inch/sec ( Monochrome, 200 dpi; 6 inch/sec ( Colour, 200 dpi; |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A0 (841 x 1189 mm) |
| Paper tray media types | Roll |
| ISO A-series sizes (A0...A9) | A0, A1, A2, A3+, A3, A4 |
| ISO B-series sizes (B0...B9) | B4, B3, B2 |
| Media thickness | 0.08 - 1.5 mm |
| Borderless printing width | 10 inches, 11.81 inches, 12.95 inches, 15.98 inches, 17.01 inches, 20.28 inches, 23.39 inches, 24.02 inches, 28.66 inches, 33.11 inches, 35.98 inches |
| JIS B-series sizes (B0...B9) | B2, B3, B4 |
| Maximum media width | 38" (153mm to 965.2mm) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| Ethernet interface type | Gigabit Ethernet |
| USB connector | USB Type-B |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Security algorithms | HTTPS |
Performance
| Specification | Value |
|---|---|
| Product colour | Grey |
| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 6.81 cm (2.68") |
| Internal memory | 1024 MB |
| Sound pressure level (printing) | 50 dB |
| RAM capacity | 1 GB |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.5 W |
| Power consumption (standby) | 3 W |
| Power supply | 60 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Linux, Mac OS 10.5.8 or later, Windows 10, Windows 7, Windows 7 x64, Windows 8 (32/64 bit), Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2003 (32/64bit), Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista |
| Windows operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1405 mm |
| Depth | 813 mm |
| Height | 1128 mm |
| Weight | 84 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 815 mm |
| Package depth | 1775 mm |
| Package height | 1045 mm |
| Package weight | 135 kg |
| Cartridge(s) included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/-0.26 |
| Minimum line width | 0.02 mm |
| Ink drop | 3.5 pl, With Variable-Sized Droplet Technology |
| Printer features | Direct scan-to-print without PC |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Box contents | Driver and utilities, Individual Ink Cartridges, Maintenance box, Power cable, Setup guide, SureColor T-Series Printer, User manual (CD) |
| Colours capacity | Photo Black [110ml, 350ml, 700ml], Matte Black [110ml, 350ml, 700ml], Cyan [110ml, 350ml, 700ml], Yellow [110ml, 350ml, 700ml], Magenta [110ml, 350ml, 700ml] |
| Power consumption | 60 Watt, 3 Watt (standby), 0.5 Watt (Power off) |
What people say
Reviews & ratings
Epson SureColor SC-T5200
No reviews yet
Be the first to tell others how Epson SureColor SC-T5200 works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare Epson SureColor SC-T5200
All large format printer comparisons- Epson SureColor SC-T5200 vsEpson SureColor SC-T5200D-PSCompare specs
- Epson SureColor SC-T5200 vsEpson SureColor SC-T5200PS - (Adobe postscript unit)Compare specs

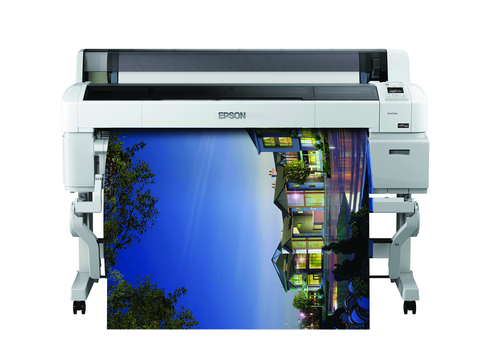

- Epson SureColor SC-T5200 vsEpson SureColor SC-T7200 (with Stand)Compare specs

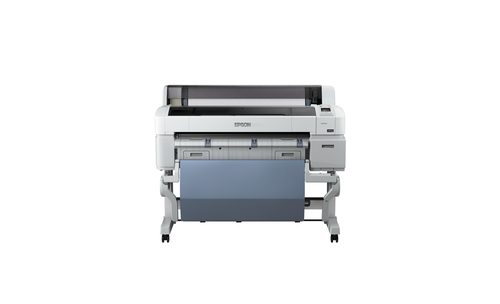

- Epson SureColor SC-T5200 vsEpson SureColor SC-T3200 w/o standCompare specs

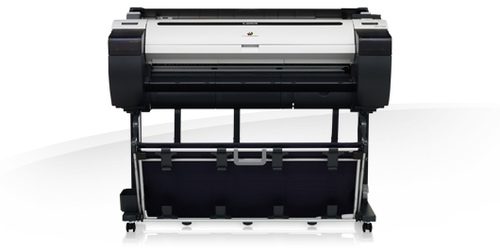

- Epson SureColor SC-T5200 vsCanon imagePROGRAF iPF780 large format printer Inkjet ColourCompare specs

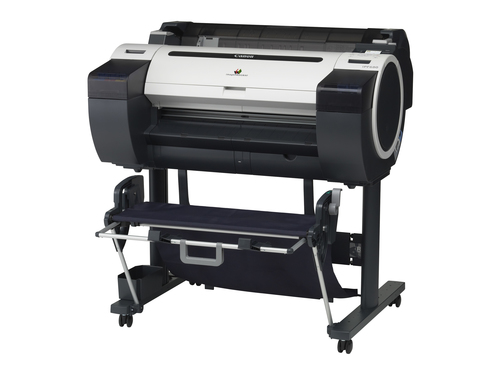

- Epson SureColor SC-T5200 vsCanon imagePROGRAF iPF680 large format printer Inkjet ColourCompare specs

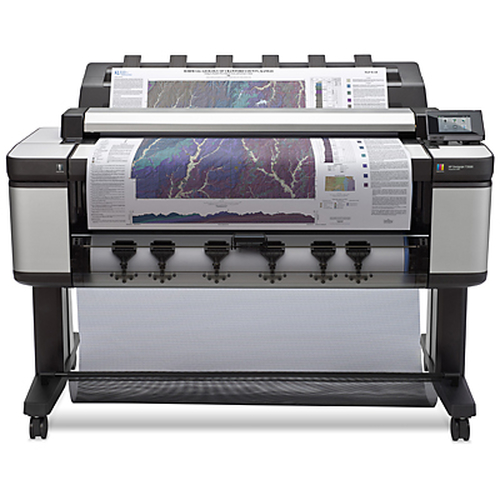

- Epson SureColor SC-T5200 vsHP T3500 36-in Production eMFPCompare specs

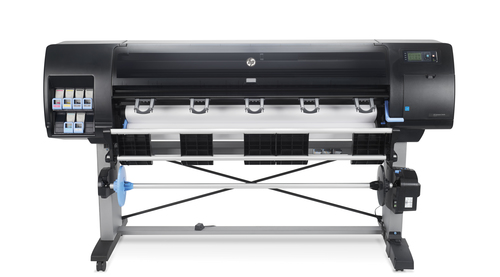

- Epson SureColor SC-T5200 vsHP Designjet Z6600 large format printer Thermal inkjet ColourCompare specs
