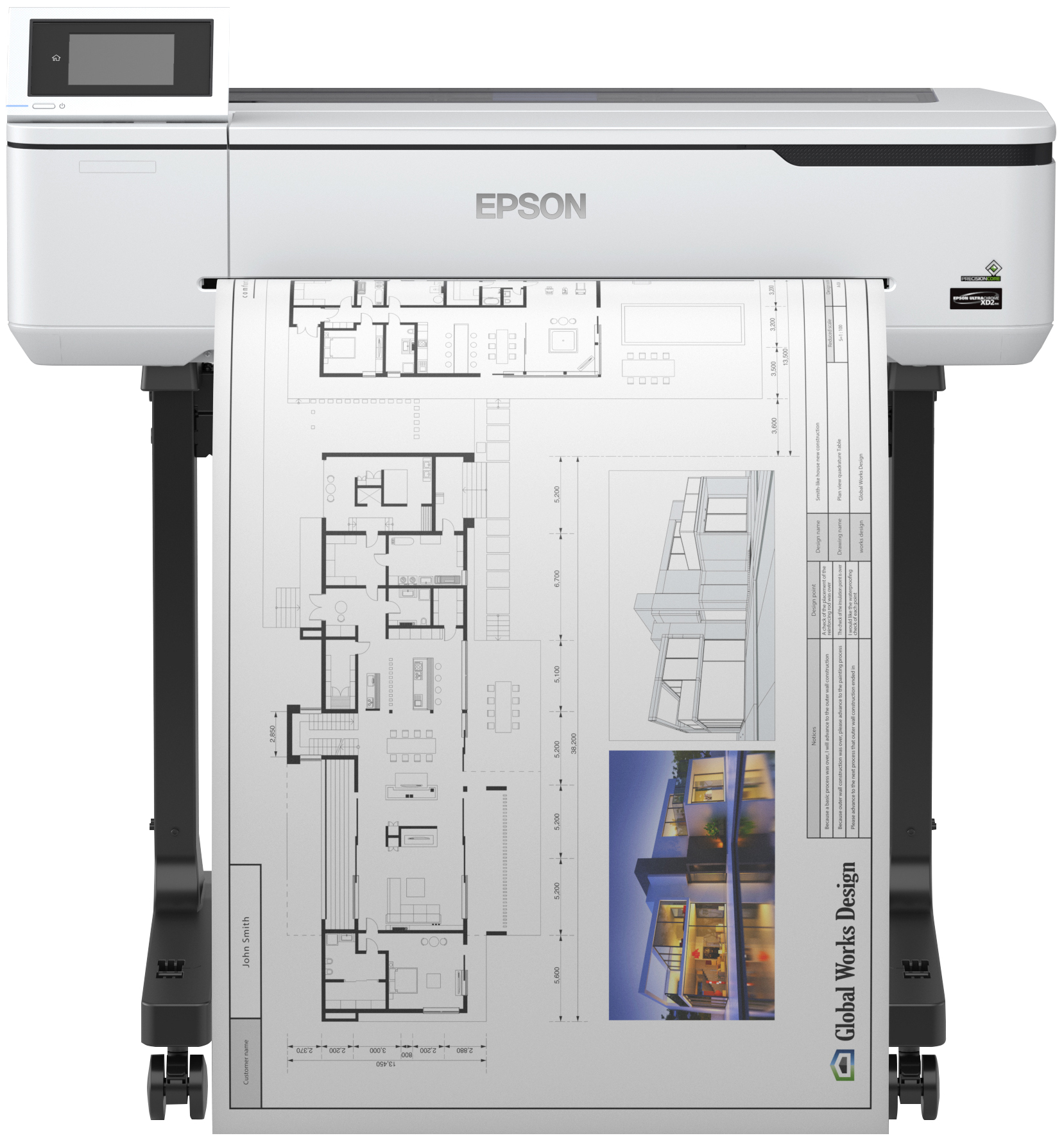

SureColor SC-T3100
Model SC-T3100Part no. C11CF11302A0EAN 5704174830917
74 specifications
- Display10.9 cm (4.3")
- Memory1024 MB
- Weight38 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
Overview
- Display
- 10.9 cm (4.3")
- Memory
- 1024 MB
- Weight
- 38 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Brand
- Epson
- Category
- Large Format Printer
- Model
- SC-T3100
- Part numbers
- C11CF11302A0, C11CF11302A1
- EAN / UPC
- 5704174830917, 8715946662442, 8715946662459
- Also known as
- Epson SureColor SC-T3100
Specifications
74 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Page description languages | ESC/P-R, HP-GL/2, HP-RTL |
| Printing colours | Black, Cyan, Yellow, Magenta |
| Print cartridge volume (metric) | 26 ml, 50 ml, 80 ml |
| Print head | PrecisionCore |
| Print head nozzles | 800 nozzles black, 800 nozzles per colour |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A3+, A4 |
| ISO B-series sizes (B0...B9) | B1, B2, B3, B4, B5 |
| Cut sheets | Yes |
| Media thickness | SingleSheet0.3 |
| Maximum roll width | 61 cm |
| Maximum roll diameter | 11.9 cm |
| Roll weight (rear roll) | 4.2 kg |
| Print margin cut-sheet | 3 x 3 x 3 x 3 |
| Roll paper | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | No |
| Ethernet interface type | Gigabit Ethernet |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) ports quantity | 1 |
| Direct printing | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi Direct | Yes |
| Supported network protocols | TLS, SSL, SNMP, IPSec, IPv6, IEEE802 |
| Parallel ports quantity | 0 |
| Firewire (IEEE 1394) ports | 0 |
| RJ-45 ports quantity | 1 |
| Mobile printing technologies | Apple AirPrint |
| Security algorithms | SSL/TLS, SNMP, IPSec |
Performance
| Specification | Value |
|---|---|
| Product colour | White |
| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Control type | Touch |
| Internal memory | 1024 MB |
| Sound pressure level (standby) | 32 dB |
| Sound power level (standby) | 32 dB |
| Sound pressure level (printing) | 49 dB |
| Country of origin | Indonesia |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.2 W |
| Power consumption (standby) | 8 W |
| Power consumption (typical) | 28 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Mac OS X 10.6.8 or later, Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 970 mm |
| Depth | 696 mm |
| Height | 913 mm |
| Weight | 38 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 730 mm |
| Package depth | 1200 mm |
| Package height | 600 mm |
| Package weight | 51.4 kg |
| Cartridge(s) included | Yes |
| Drivers included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
Other features
| Specification | Value |
|---|---|
| Line accuracy | +/- 0,1 |
| Touchscreen | Yes |
| Compatible products | WorkForce DS-6500, WorkForce DS-60000 |
| Minimum line width | 0.02 mm |
| Ink drop | 4 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84433210 |
| Quantity per pack | 1 pc(s) |
