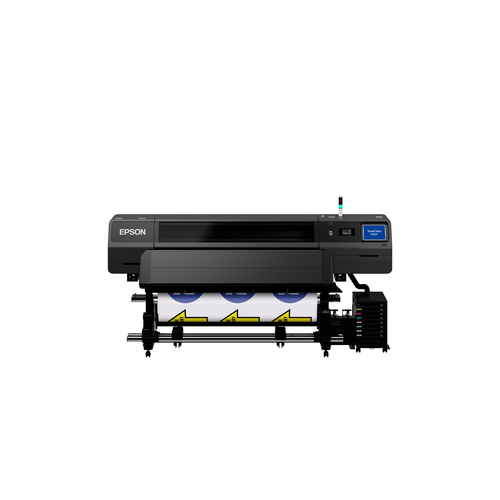

SureColor SC-R5010 large format printer Inkjet Colour
1200 x 2400 DPI Ethernet LAN
Model SC-R5010Part no. C11CH28302A0EAN 8715946694634
43 specifications
- Display10.9 cm (4.3")
- Memory2048 MB
- Weight425 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
Overview
- Display
- 10.9 cm (4.3")
- Memory
- 2048 MB
- Weight
- 425 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Brand
- Epson
- Category
- Large Format Printer
- Model
- SC-R5010
- Part number
- C11CH28302A0
- EAN / UPC
- 8715946694634
- Also known as
- Epson SureColor SC-R5010 large format printer Inkjet Colour 1200 x 2400 DPI Ethernet LAN
Specifications
43 specifications in 12 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 1200 x 2400 DPI |
| Number of print cartridges | 6 |
| Page description languages | ESC/P-R |
| Printing colours | Black, Cyan, Light Cyan, Light magenta, Magenta, Yellow |
| Print cartridge volume (metric) | 1500 ml |

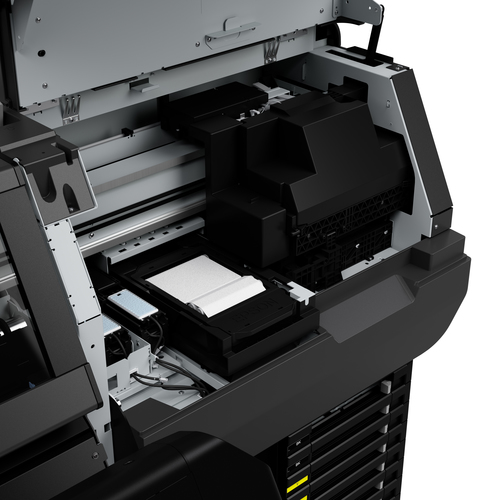

| Print head | PrecisionCore Micro TFP |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Paper tray media types | Roll |
| Cut sheets | No |
| Media thickness | 1 mm |
| Maximum roll width | 162.6 cm |
| Maximum roll diameter | 25 cm |
| Roll weight (rear roll) | 45 kg |
| Print margin roll | 5 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| USB port | Yes |
| USB connector | USB Type-B |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |

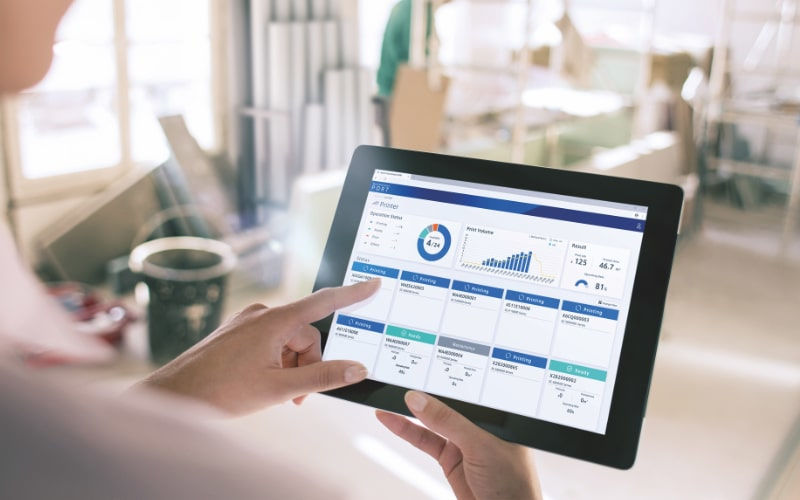

| Mobile printing technologies | Epson Cloud Solution PORT |
Performance
| Specification | Value |
|---|---|
| Product colour | Black |

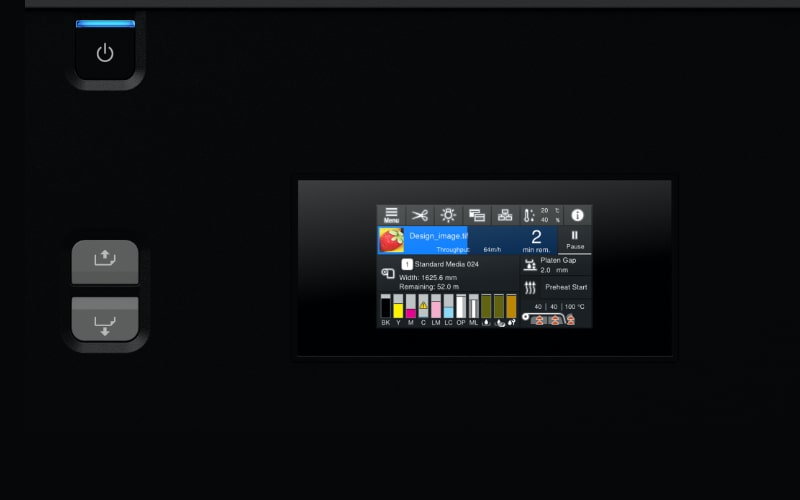

| Built-in display | Yes |
| Display | LCD |
| Colour display | Yes |
| Display diagonal | 10.9 cm (4.3") |
| Control type | Touch |
| Internal memory | 2048 MB |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| AC input voltage | 200 - 240 V |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X 10.11.x or later, Windows 10, Windows 7, Windows 8 |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 2949 mm |
| Depth | 1045 mm |
| Height | 1774 mm |
| Weight | 425 kg |
Packaging data
| Specification | Value |
|---|---|
| Manual | Yes |
| Bundled software | Epson Edge Print |
Other features
| Specification | Value |
|---|---|
| Ink drop | 4.9 pl |
Technical details
| Specification | Value |
|---|---|
| Box contents | Auto take-up reel, Bulk Ink Solution, Ink set, Power cable, Warranty Documents |
