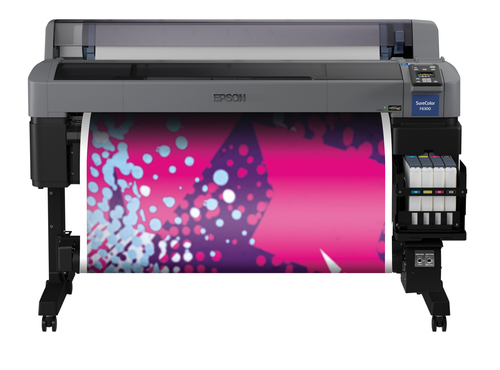

SC-F6300 (hdK)
Model SC-F6300 (hdK)Part no. C11CH66301A0EAN 8715946672274
53 specifications
- Memory512 MB
- Weight85 kg
- ColourYes
- Print technologyInkjet
- CopyingNo
- Media thickness0.08 - 0.5 mm
Overview
- Memory
- 512 MB
- Weight
- 85 kg
- Colour
- Yes
- Print technology
- Inkjet
- Copying
- No
- Media thickness
- 0.08 - 0.5 mm
- Brand
- Epson
- Category
- Large Format Printer
- Model
- SC-F6300 (hdK)
- Part number
- C11CH66301A0
- EAN / UPC
- 8715946672274
- Also known as
- Epson SureColor SC-F6300 (hdK) large format printer Inkjet Colour 720 x 1440 DPI Ethernet LAN
Specifications
53 specifications in 13 groups
Printing
| Specification | Value |
|---|---|
| Print technology | Inkjet |
| Colour | Yes |
| Maximum resolution | 720 x 1440 DPI |
| Number of print cartridges | 7 |
| Printing colours | Black, Cyan, Yellow, Magenta |
| Print cartridge volume (metric) | 1500 ml |
Copying
| Specification | Value |
|---|---|
| Copying | No |
Scanning
| Specification | Value |
|---|---|
| Scanning | No |
Paper handling
| Specification | Value |
|---|---|
| Media thickness | 0.08 - 0.5 mm |
| Maximum roll width | 111.8 cm |
| Maximum roll diameter | 15 cm |
| Media width (rolls) | 1118 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| USB port | Yes |
| USB connector | USB Type-A |
| USB 2.0 ports quantity | 1 |
Performance
| Specification | Value |
|---|---|
| Product colour | Black, Grey |
| Built-in display | Yes |
| Internal memory | 512 MB |
| Sound pressure level (printing) | 55.1 dB |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| Power consumption (off) | 0.4 W |
| Power consumption (standby) | 3 W |
| Power consumption (typical) | 65 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 15 - 25 °C |
| Operating relative humidity (H-H) | 40 - 60% |
| Storage relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | 15 - 35 °C |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 10 (32/64 bit), Windows 7 (32/64 bit), Windows 8 (32/64 Bit), Windows 8.1 (32/64 bit) |
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 1608 mm |
| Depth | 1128 mm |
| Height | 917 mm |
| Weight | 85 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 810 mm |
| Package depth | 2260 mm |
| Package height | 1100 mm |
| Package weight | 173 kg |
| Drivers included | Yes |
| Manual | Yes |
| Quick start guide | Yes |
| Bundled software | Epson Edge Print |
Other features
| Specification | Value |
|---|---|
| Capacity cartridge | 600 sheets |
| Ink drop | 4 |
Logistics data
| Specification | Value |
|---|---|
| Pallet gross weight | 0 g |
| Pallet weight (UK) | 0 g |
| Products per pallet | 1 pc(s) |
| Products per pallet (UK) | 1 pc(s) |
| Products per pallet layer | 1 pc(s) |
| Products per pallet layer (UK) | 1 pc(s) |
| Quantity per pack | 1 pc(s) |
